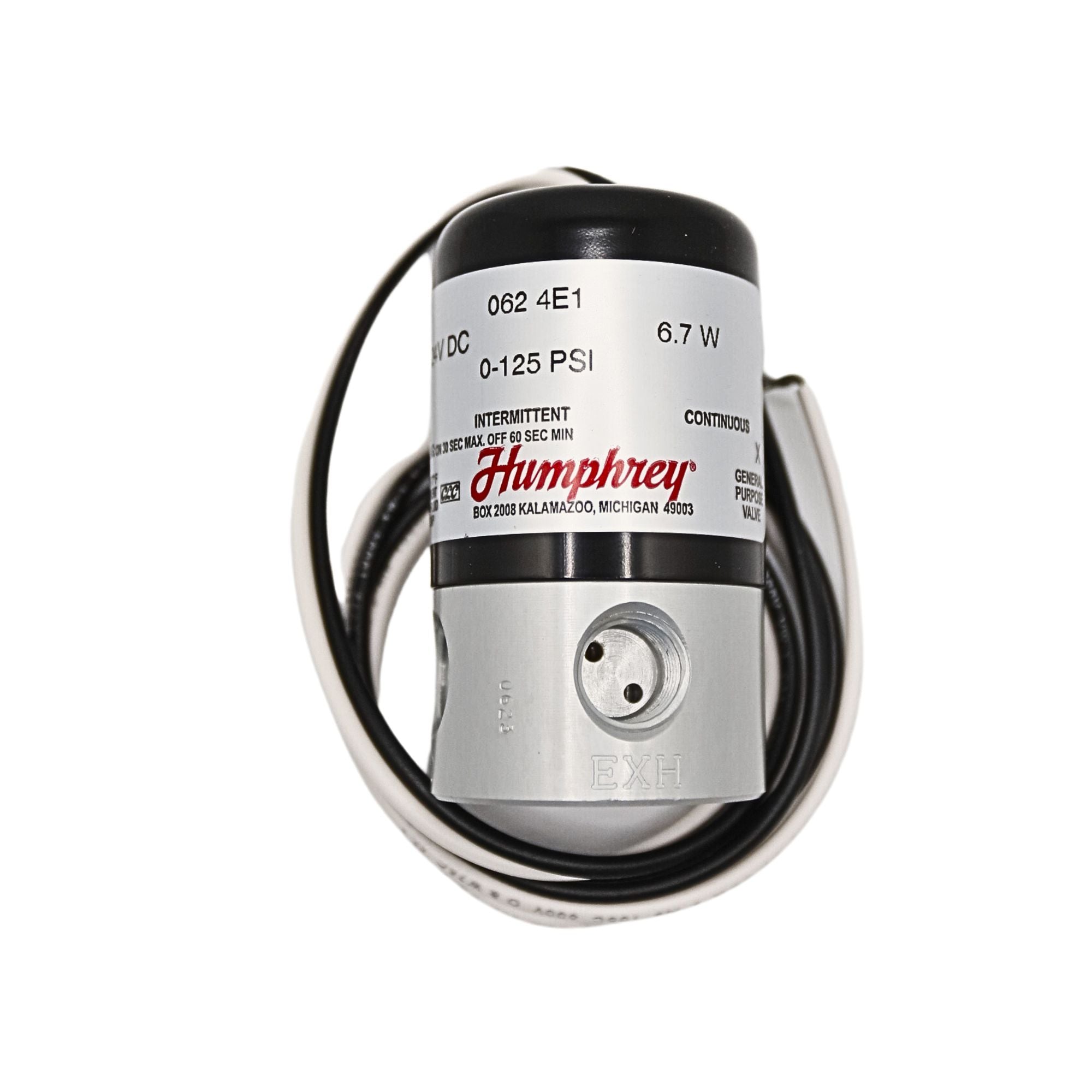

Humphrey | Tyna-Myte Solenoid Valve | 062-4E1-20-35-24DC

Mfr. Part #: 062-4E1-20-35-24DC

Ships same day with standard 2-day shipping if ordered M-F before 3PM PT.

Pickup Available at Livermore

Quantity	Discount	Part Price
>10	5.0 %	$334.28

The Humphrey 062-4E1-20-35-24DC is a compact 4-way, 2-position solenoid valve with spring return, featuring a durable anodized aluminum body. Operating at 24V DC, it offers fast response and high cycle rates, making it ideal for pneumatic automation, HVAC systems, and industrial applications requiring reliable, low-maintenance valve control.

Key Features:
- 4-way, 2-position direct-acting solenoid valve with spring return
- 1/4" NPSF ports, aluminum body with anodized finish
- Operates on 24V DC; 8.2W power consumption
- Flow capacity Cv ≈ 0.10; pressure range 0–125 psi
- Fast response (~4 ms actuation; ~13 ms release), up to 600 cycles/min
- Lubrication not required; ambient temperature range –30°F to 150°F

Common Applications:
- Pneumatic automation in packaging, assembly, and material handling
- Air flow control for cylinders and actuators
- Valve control in HVAC and industrial pneumatic systems
- Low-maintenance operations in harsh or variable environments
- Machine tools and equipment requiring quick cycling and compact valves

Humphrey 062-4E1-20-35-24DC Specifications
Valve Type	4-way, 2-position solenoid (spring return)
Port Size	1/4" NPSF
Body Material	Aluminum with anodized finish
Voltage	24V DC
Power Consumption	8.2 W
Flow Capacity (Cv)	Approx. 0.10
Operating Pressure	0 to 125 psi
Response Time	Actuation: ~4 ms, Release: ~13 ms
Cycle Rate	Up to 600 cycles/min
Ambient Temperature Range	−30°F to 150°F
Lubrication	Not required
