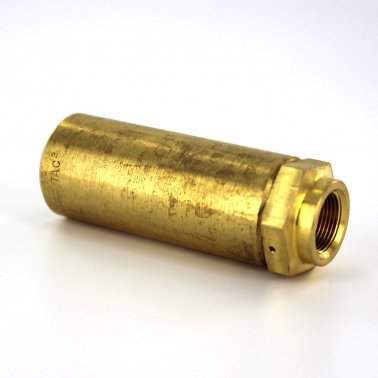

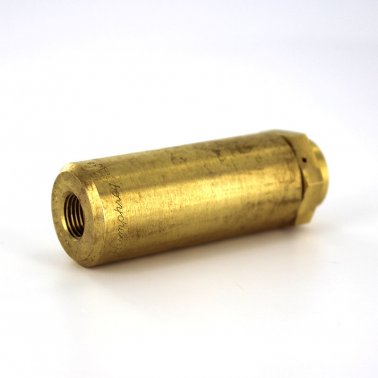

Humphrey | TAC Snap/Reset 1/8 | 341ASR

8 in stock | Need More? >>

Ships same day if ordered M-F before 3PM PT.

Pickup Available at Livermore

Items that don't require customization purchased before 12 PM will be available the same business day. Items that require customization or are purchased after 12 PM will be available the next business day.

Snap Action Air Pilot Operator with Reset

Operation delayed until pilot pressure builds to 35 +/- 5 psi, then resets after ~0.5 sec

Used with 31P, 41P, 41PP, 42P, 42PP, 42PA

Approx Size (in) HxWxD 2.44 x 0.81 HEX
Pilot Pressure Range (psi) 40-60
Operator Function Operation delayed until pilot pressure builds to 35 +/- 5 psi, then resets after ~0.5 sec.
Type of TAC Operator Snap Action Air Pilot Operator with Reset
Air Operator for 2 or 3 Way TAC Valve Models - sold separately: 31P
Air Operator for 4 Way TAC Valve Models - sold separately: 41P, 41PP, 42P, 42PP, 42PA
Snap Action Pressure Set (psi) 35 +/-5
Mounting Method to Push Button Valve: Threads to valve collar using 15/32-32 threads.
Materials Brass, Buna N

ID #: 4231
