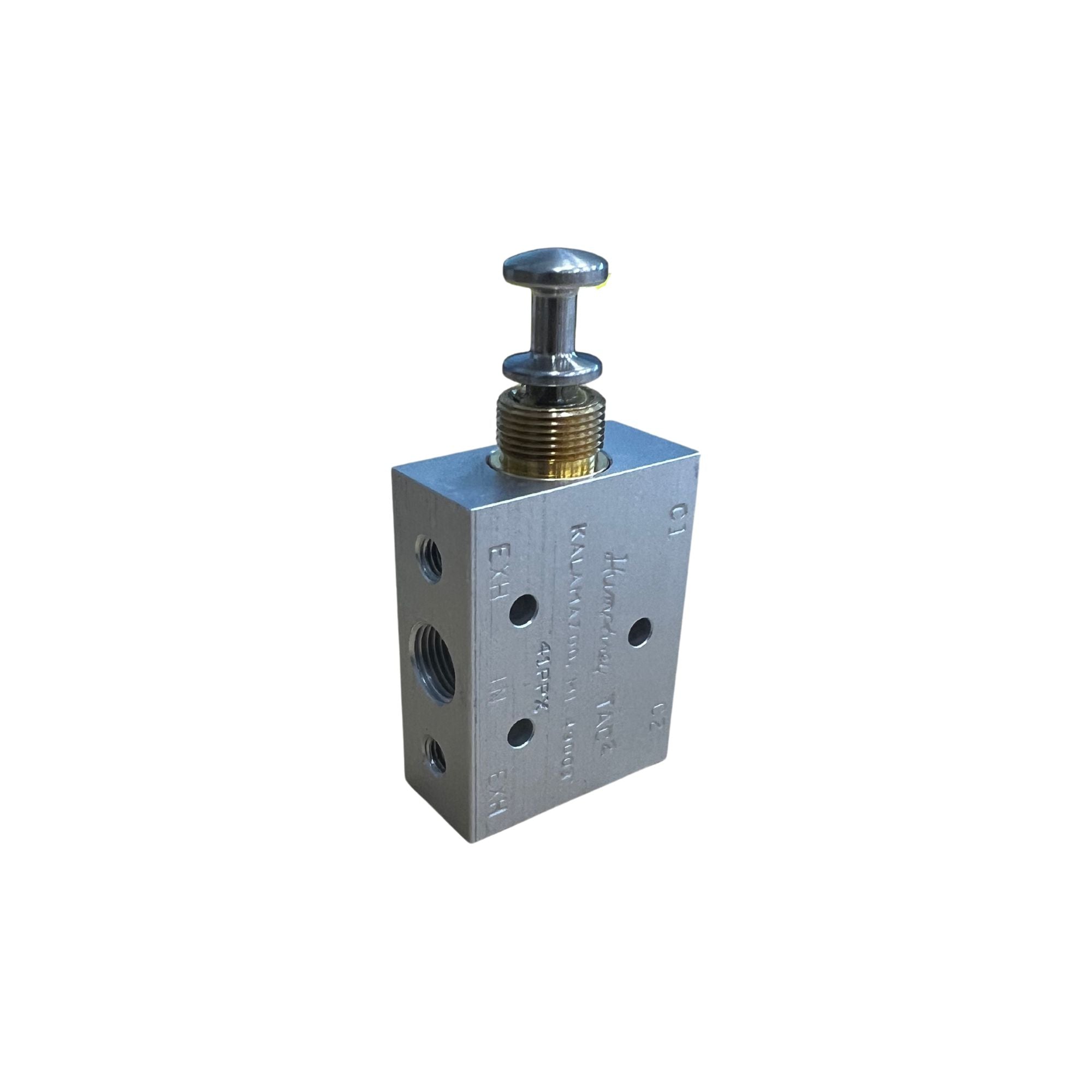

Four way miniature push-pull button valve, dented with 1/8 pipe ports. All TAC push button valves feature an attractive, work hardened SST button above a 15/32-32 threaded collar. Panel mounting and bottoms out on collar to prevent valve overstroke.
Compact
Rugged

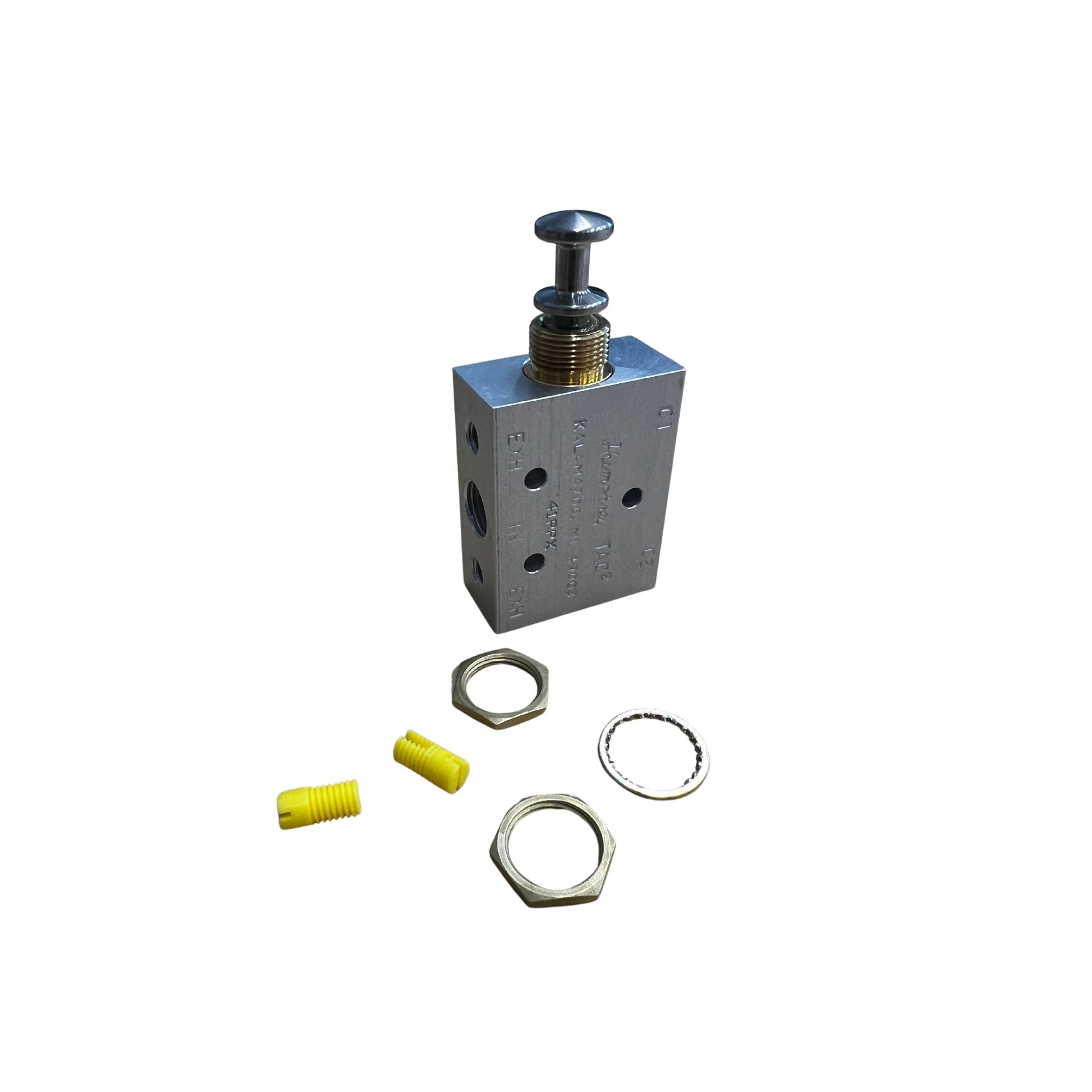

Exhaust metering screws included
| Number of Ports | 5 ports |
| Number of Positions | 2 positions |
| Valve Function | 4-way, Detent |
| Piping Type | Inline, Direct Piping |
| Options Included | Panel Mounting Hardware, EXH Flow Controls |
| Approx Size (in) HxWxD | 2.5 x 0.63 x 1.25 |
| Media | Air |
| Type of Operation | Push / Pull button |
| Flow Capacity (Cv) | 0.38 |
| Port Size | 1/8 NPSF |
| Lubrication | Recommended |
| Pressure Range (psi) | 0-125 |
| Ambient Temperature Range (⁰F) | -20~180 |
| Wetted Materials | Aluminum, Brass, SST, Buna N |
| Weight (oz) | 6.0 |
ID #: 4609
