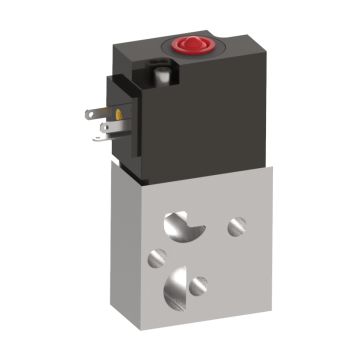

Humphrey | Solenoid Valve Series 310 & 410 | S410-39-VAI-24VDC

4 in stock | Need More? >>

1/8 NPSF, 19mm wide 410 Series is compact, high flow and low cost. Direct acting, the 4-port solenoid valve can be operate reliable from vacuum ~ 125psi. Multi-purpose. Pipe valve as normally closed, normally open, diverter or selector 3-port valve functions, or as 4-way. Ideal for reliable control of double acting cylinders up to 1-1/4" bore (32mm). Consider optional exhaust flow control (code 70). Produced to Humphrey's industry leading, stringent leakage requirements. Made in USA. RoHS and REACH compliant.

Number of Ports 4 ports
Number of Positions 2 positions
Valve Function 4-way Single Solenoid, Multi-purpose
Piping Type Stacking Body, Out Port Piping
Coil Entry Orientation Standard
Size (in) HxWxD 2.75 x 0.75 x 1.25
Media Air, Inert Gas, Vacuum
Type of Operation Direct Acting Type
Flow Capacity (Cv) 0.14
Port Size 1/8 NPSF
Lubrication Not Required
Pressure Range (psi) -28"Hg-125
Response Time per Step (ms) 12/10
Maximum Duty Cycle 600 CPM
Ambient Temperature Range (⁰F) 32~125
Wetted Materials Anodized Aluminum, Brass, SST, FKM, Acetal
Weight (oz) 4.0
Electrical Entry DIN style, Micro Type C (9.4mm)
Voltage 24VDC
Voltage Range +10%, -15%
Power Consumption (w) 4.5
Manual Override Non-Locking
Compliance RoHS

ID #: 67779
