Mfr. Part #: M310-12DC
| Quantity | Discount | Part Price |
|---|---|---|
| >10 | 5.0 % | $37.00 |
ID #: 12441

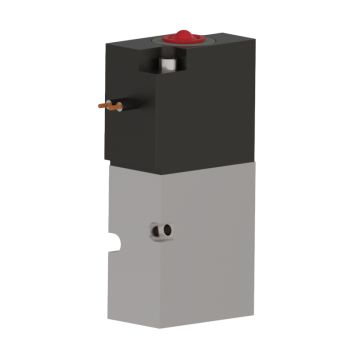

1/8 NPSF, 19mm wide 310 Series is compact, high flow and low cost. Direct acting, this 3-port solenoid valve can operate reliably from zero to 125psi. Multi-purpose. Pipe valve as normally closed, normally open, diverter or selector function. Plug 1 or 3 port for 2-way function. Coil is encapsulated. Produced to Humphrey's industry leading, stringent leakage requirements. Made in USA. RoHS compliant.
| Number of Ports | 3 ports |
| Number of Positions | 2 positions |
| Valve Function | Single Solenoid, Multi-purpose |
| Piping Type | Manifold, Subbase Piping |
| Coil Entry Orientation | Standard |
| Size (in) HxWxD | 2.75 x 0.75 x 1.25 |
| Media | Air, Inert Gas |
| Type of Operation | Direct Acting Type |
| Flow Capacity (Cv) | 0.17 |
| Lubrication | Not Required |
| Pressure Range (psi) | 0-125 |
| Response Time per Step (ms) | 12/10 |
| Maximum Duty Cycle | 600 CPM |
| Ambient Temperature Range (⁰F) | 32~125 |
| Wetted Materials | Anodized Aluminum, Brass, SST, Buna N, Acetal |
| Weight (oz) | 4.0 |
| Electrical Entry | Lead Wires - 24 inches |
| Voltage | 12VDC |
| Voltage Range | +10%, -15% |
| Power Consumption (w) | 4.5 |
| Manual Override | Non-Locking |
| Compliance | RoHS |
Interested in integrating these products into your application? Connect with us today and discover why customers have trusted us since 1937
TECO HQ is home to a state of the art services department! We have Pneumatic specialists available to help you with any solution.
Call us today to configure what you have in mind!
Our services starts the moment you buy a component, but it doesn't stop there...
Video Transcript
The three-way valve in pneumatics is one of the more common valves you're gonna find in pneumatic systems. And the average configuration, it consists of an in which is where the air goes in an out, which is where the air goes out to do whatever you're gonna do, and an exhaust. So a good. Useful thing that they would do would be a cylinder.
So you might turn on the valve actuator with a push button with a solenoid, which is electricity or whatever, and the cylinder goes up and it stays extended as long as the valve is on air is flowing. But when you turn the valve off air is still flowing to the valve, but it's no longer flowing out of the.
and what happens is that exhaust and the cylinder would slowly or quickly, depending on how you set it up, come back down. So you, you wanna be careful with that, especially if you're underneath the cylinder. The other major use for three-way valves is what we call piloting another larger valve. So in this case, think that you maybe have a big gargantuan six inch valve.
And it's driven by air pilot. And let's say it's flowing something that's flammable or something that's, uh, liquid. And so you need a much larger valve and you have this little air valve that uses the air on and off to turn the big valve on and off. So it's called piloting and it goes into an air pilot when error hits the air pilot.
It actuates the larger valve. When you take air off, you need it to exhaust so that it can change the state of the larger valve. And those are kind of the two major ways that a three-way valve was used. It's a very versatile valve. There are a number of other things that you would use that for in a pneumatic system, and we will go over that at a later time.
