$72.81

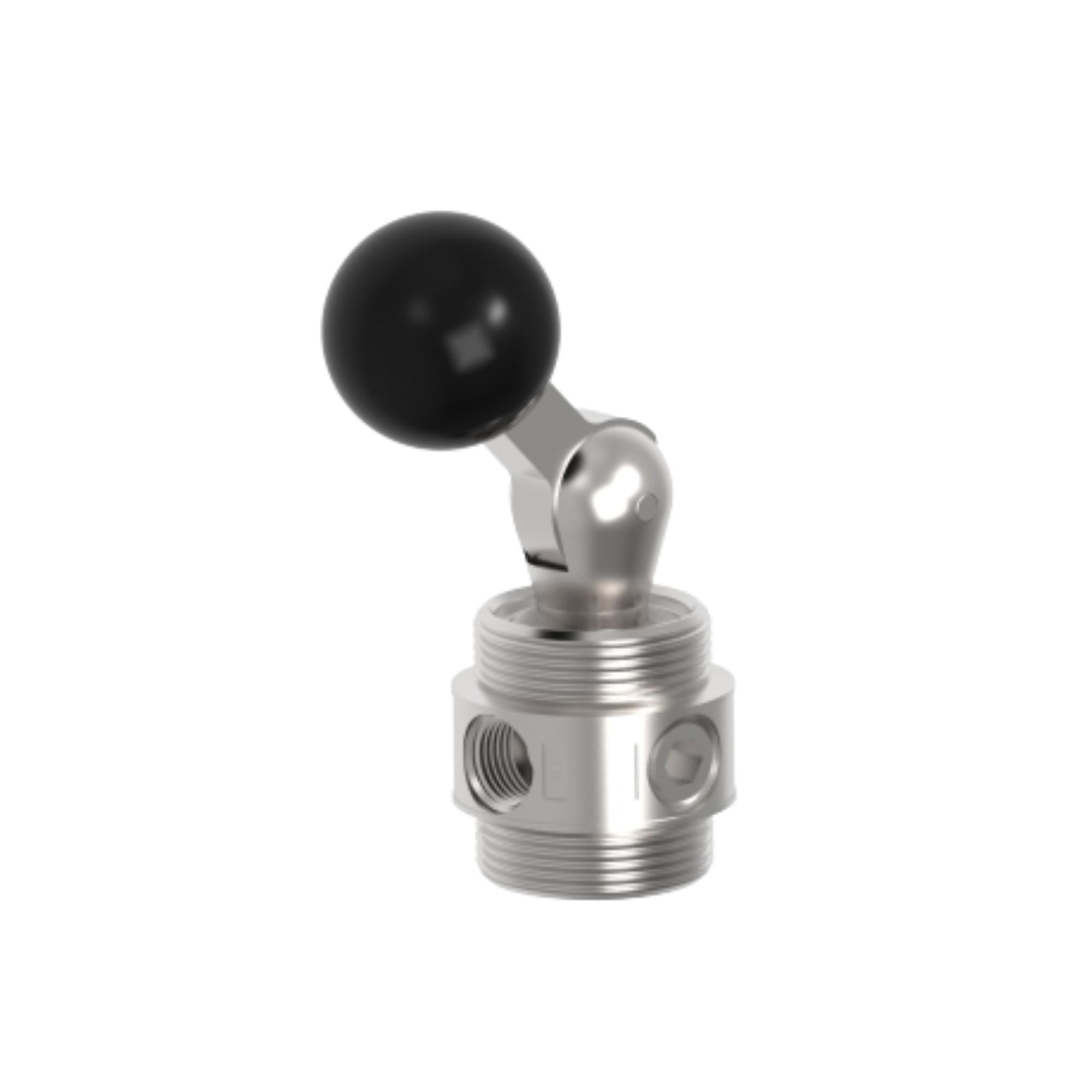

Humphrey | Poppet Manual Valve, 2 Ports, 2 Positions, 1/8 NPSF, 0-125psi, Ambient Temp -20~225 | 125V-2-10-20

Name: Humphrey | Poppet Manual Valve, 2 Ports, 2 Positions, 1/8 NPSF, 0-125psi, Ambient Temp -20~225 | 125V-2-10-20
Brand: Humphrey Products
SKU: 125V-2-10-20
Price: 72.81 USD
Availability: InStock

Mfr. Part #: 125V-2-10-20

Ships same day with standard 2-day shipping if ordered M-F before 3PM PT.

Pickup Available at Livermore

Humphrey 125V-2-10-20 2-way NC toggle valve, 1/8" NPT, 0.22 Cv, 125 PSI. Detented, bubble-tight for manual pneumatic control.

Key Features:
• 2-way, 2-position normally closed detented toggle valve from Humphrey 125V series
• Diaphragm poppet design with unbalanced air-spring return for bubble-tight sealing
• 1/8" NPT ports with 0.125" orifice and 0.22 Cv flow coefficient
• Zinc body construction with NBR seals for durability; manual actuation with 90° throw
• Operating pressure: 0-125 PSI; temperature range: -20°F to 225°F

Common Applications:
• Manual air supply shutoff in pneumatic systems
• Directional control for actuators and cylinders in industrial machinery
• Toggle switching in factory automation and assembly lines
• Vacuum service in light-duty pneumatic circuits

Specifications - 125V-2-10-20
Model	125V-2-10-20
Valve Type	2-Way, 2-Position Normally Closed Detented Toggle
Design	Diaphragm Poppet, Unbalanced Air-Spring Return
Port Size	1/8" NPT
Orifice	0.125"
Flow Coefficient (Cv)	0.22
Operating Pressure	0-125 PSI
Temperature Range	-20°F to 225°F
Actuation	Manual Toggle, 90° Throw
Material	Zinc Body, NBR Seals
Applications	Manual air shutoff, actuator control, factory automation, assembly lines, light-duty vacuum service
