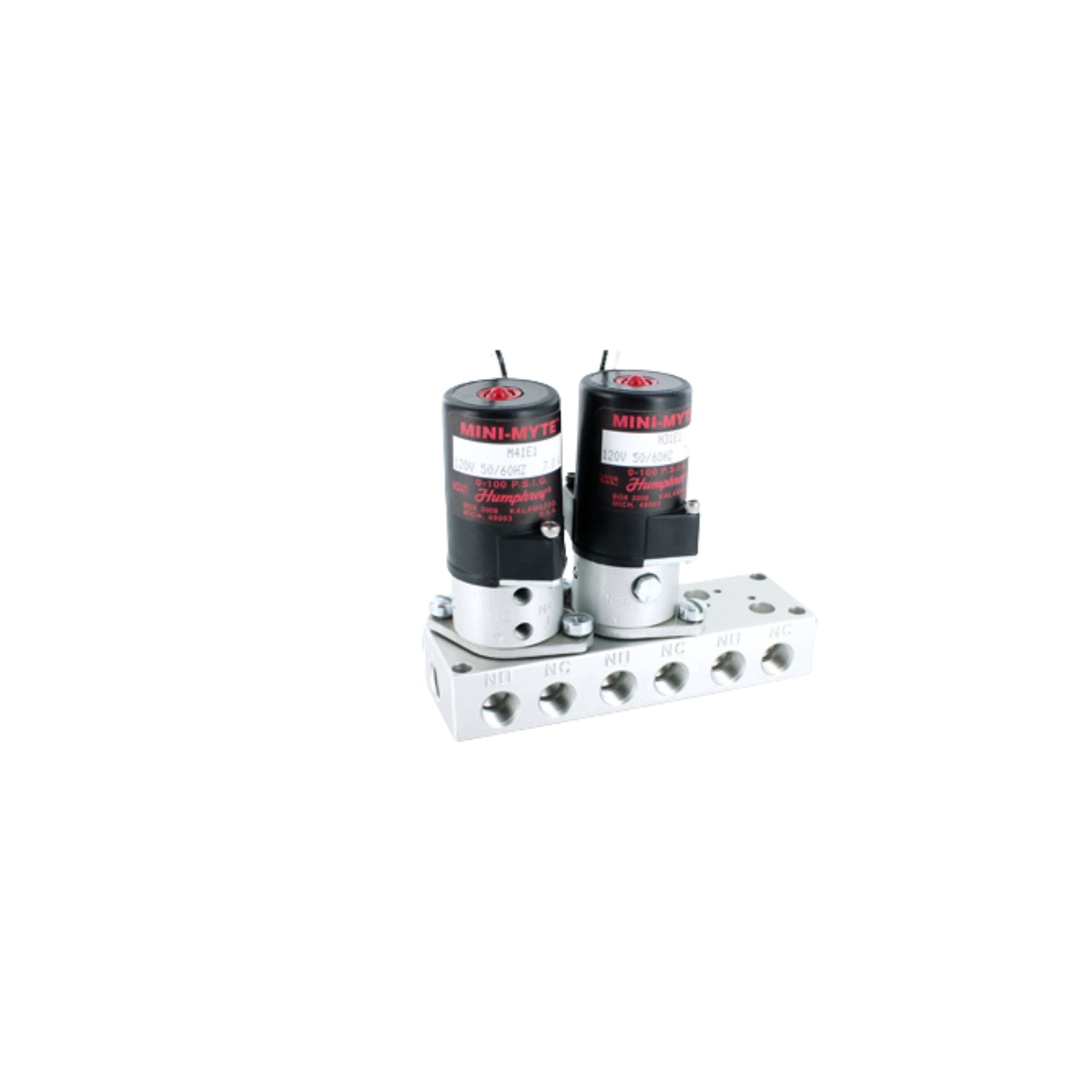

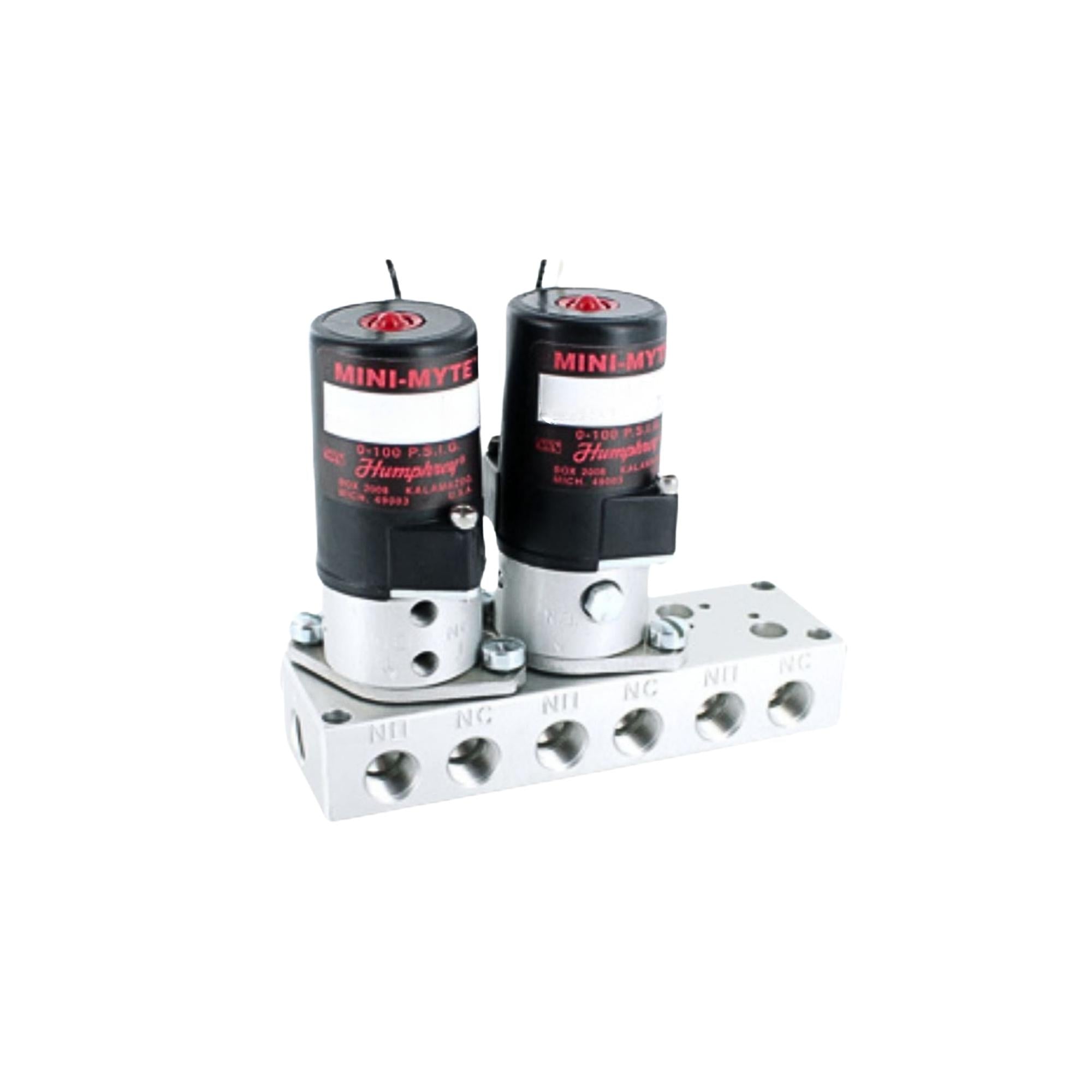

Humphrey | Mini Myte Valve 3/2 SS 12DC 1/8 | M31E1-12DC

9 in stock | Need More? >>

Ships same day with standard 2-day shipping if ordered M-F before 3PM PT.

Pickup Available at Livermore

Quantity Discount Part Price
>10 Contact us for a quote $238.19

Small 1/8 pipe, 3-port Mini-Myte Series valve is multi-purpose, capable of 2 or 3-way, normally closed or open, diverter of selector function from a single valve. Inline or manifold mount types. Manual override standard. Select from a variety of voltages.

Number of Ports 3 ports
Number of Positions 2 positions
Valve Function Single Solenoid, Multi-purpose
Piping Type Manifold, Subbase Piping
Approx Size (in) HxWxD 2.54 x 1.13 DIA
Media Air, Inert Gas
Type of Operation Direct Acting Type
Flow Capacity (Cv) 0.07
Lubrication Not Required
Pressure Range (psi) 0-100
Response Time per Step (ms) 7/13
Operating Speed (cycles/min) 300
Ambient Temperature Range (⁰F) -30~130
Wetted Materials Anodized Aluminum, Brass, Buna N
Weight (oz) 5.0
Electrical Entry Conduit & Grommet w/ 12" Leads
Voltage 12VDC
Voltage Range +10%, -15%
Power Consumption (w) 7.8
Manual Override Non-Locking

ID #: 12458

Product Resources

Teco Services

TECO HQ is home to a state of the art services department! We have specialists available to help you with any solution.

Call us today to configure what you have in mind!

Our services starts the moment you buy a component, but it doesn't stop there...

Video Resources

More about this product

Video Transcript

The three-way valve in pneumatics is one of the more common valves you're gonna find in pneumatic systems. And the average configuration, it consists of an in which is where the air goes in an out, which is where the air goes out to do whatever you're gonna do, and an exhaust. So a good. Useful thing that they would do would be a cylinder.

So you might turn on the valve actuator with a push button with a solenoid, which is electricity or whatever, and the cylinder goes up and it stays extended as long as the valve is on air is flowing. But when you turn the valve off air is still flowing to the valve, but it's no longer flowing out of the.

and what happens is that exhaust and the cylinder would slowly or quickly, depending on how you set it up, come back down. So you, you wanna be careful with that, especially if you're underneath the cylinder. The other major use for three-way valves is what we call piloting another larger valve. So in this case, think that you maybe have a big gargantuan six inch valve.

And it's driven by air pilot. And let's say it's flowing something that's flammable or something that's, uh, liquid. And so you need a much larger valve and you have this little air valve that uses the air on and off to turn the big valve on and off. So it's called piloting and it goes into an air pilot when error hits the air pilot.

It actuates the larger valve. When you take air off, you need it to exhaust so that it can change the state of the larger valve. And those are kind of the two major ways that a three-way valve was used. It's a very versatile valve. There are a number of other things that you would use that for in a pneumatic system, and we will go over that at a later time.
