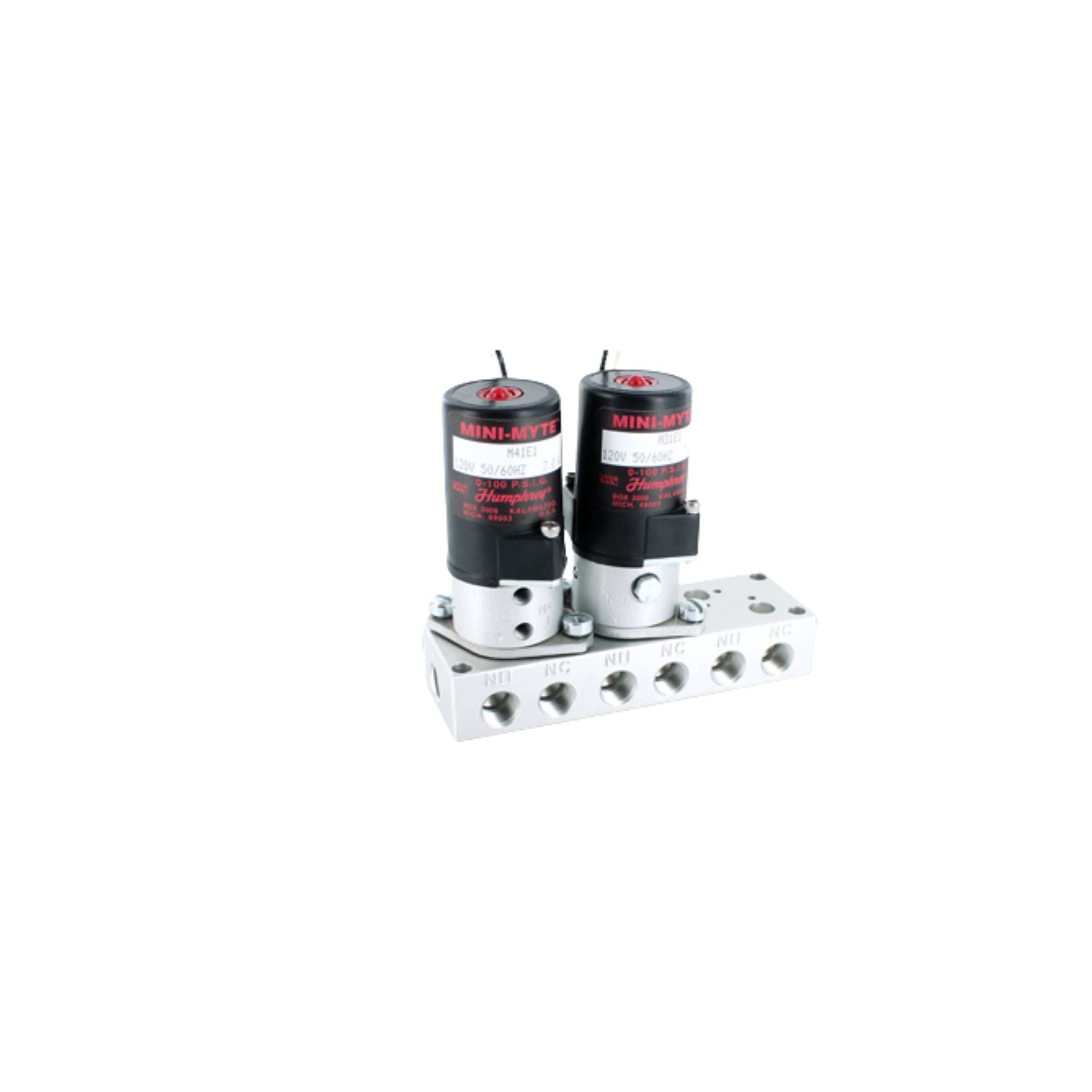

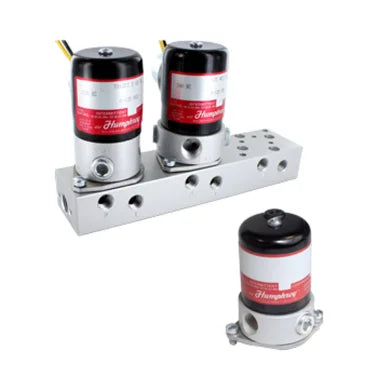

Small 1/8 pipe, 4-way Mini-Myte Series valve is compact, reliable. Inline or manifold mount types. Operate air cylinders 3/4 (20mm) bore or less. Select from a variety of voltages. Manual override standard. Exhaust flow control metering screws are standard on all but captured exhaust models.
| Number of Ports | 4 ports |
| Number of Positions | 2 positions |
| Valve Function | 4-way Single Solenoid, Spring Return |
| Piping Type | Manifold, Subbase Piping |
| Options Included | Captured EXH |
| Approx Size (in) HxWxD | 2.54 x 1.13 DIA |
| Media | Air, Inert Gas |
| Type of Operation | Direct Acting Type |
| Flow Capacity (Cv) | 0.03 |
| Lubrication | Recommended |
| Pressure Range (psi) | 0-100 |
| Response Time per Step (ms) | 7/13 |
| Operating Speed (cycles/min) | 300 |
| Ambient Temperature Range (⁰F) | -30~130 |
| Wetted Materials | Anodized Aluminum, Brass, Buna N |
| Weight (oz) | 5.0 |
| Electrical Entry | Conduit & Grommet w/ 12" Leads |
| Voltage | 24VDC |
| Voltage Range | +10%, -15% |
| Power Consumption (w) | 8.5 |
| Manual Override | Non-Locking |
ID #: 12645
