Quantity | Discount | Part Price |
---|---|---|
>10 | Contact us for a quote | $251.28 |

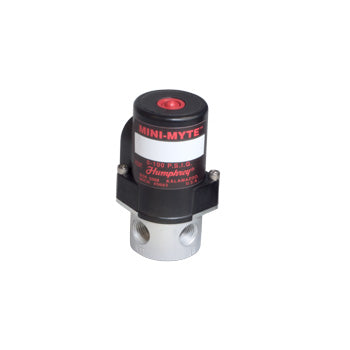

Small 1/8 pipe, 4-way Mini-Myte Series valve is compact, reliable. Inline or manifold mount types. Operate air cylinders 3/4 (20mm) bore or less. Select from a variety of voltages. Manual override standard. Exhaust flow control metering screws are standard on all but captured exhaust models.
Number of Ports | 5 ports |
Number of Positions | 2 positions |
Valve Function | 4-way Single Solenoid, Spring Return |
Piping Type | Inline, Direct Piping |
Options Included | EXH port speed control |
Approx Size (in) HxWxD | 2.42 x 1.12 DIA |
Media | Air, Inert Gas |
Type of Operation | Direct Acting Type |
Flow Capacity (Cv) | 0.03 |
Port Size | 1/8 NPSF |
Lubrication | Recommended |
Pressure Range (psi) | 0-100 |
Response Time per Step (ms) | 4/60 |
Operating Speed (cycles/min) | 300 |
Ambient Temperature Range (⁰F) | -30~130 |
Wetted Materials | Anodized Aluminum, Brass, Buna N |
Weight (oz) | 4.0 |
Electrical Entry | Conduit & Grommet w/ 12" Leads |
Voltage | 240/50/60 |
Voltage Range | +10%, -15% |
Power Consumption (w) | 7.0 |
Manual Override | Non-Locking |
ID #: 4596
