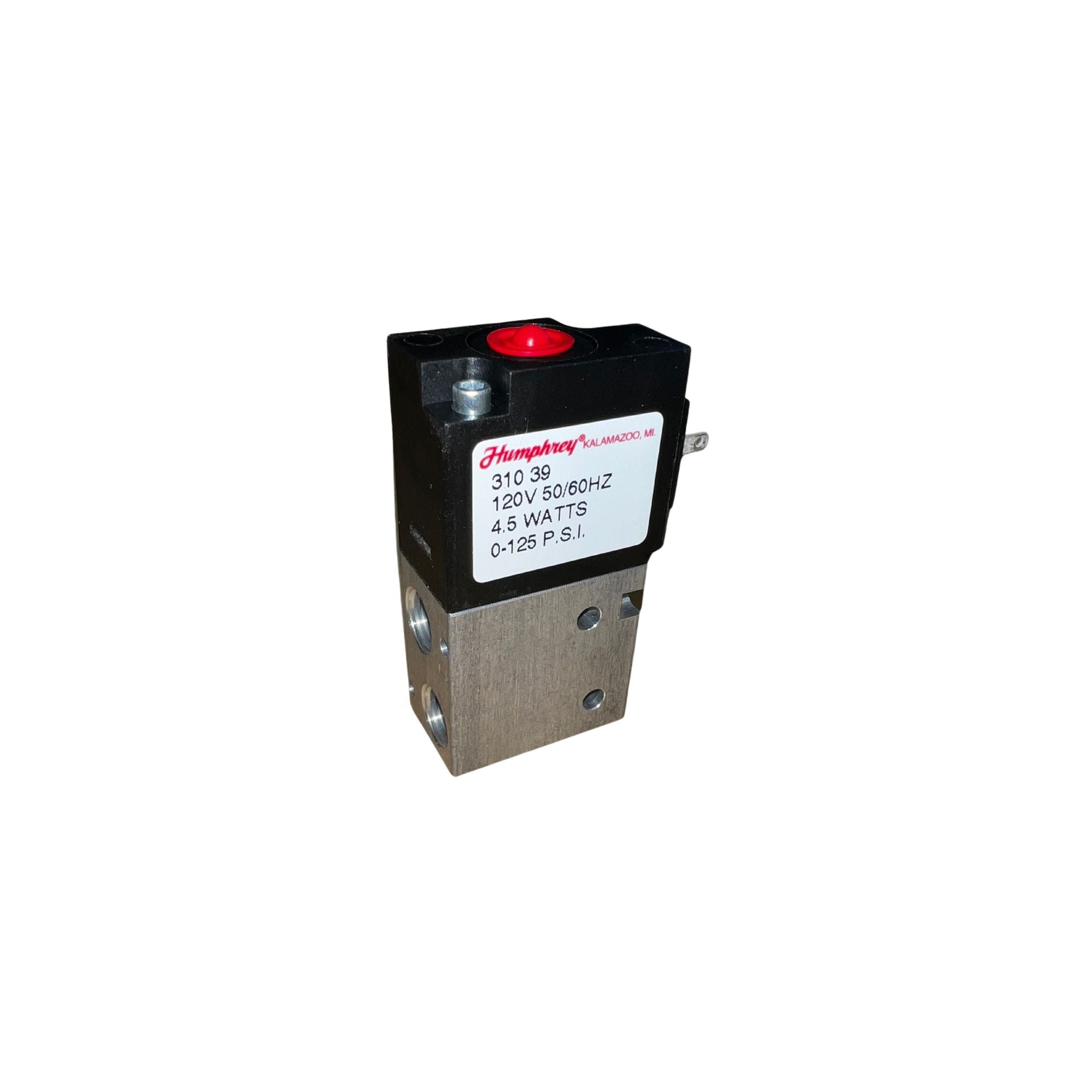

Humphrey | Inline 3/2 Single Solenoid, 1/8 in NPTF, 120/50/60 | 310-39-120/60

23 in stock | Need More? >>

1/8 NPSF, 19mm wide 310 Series is compact, high flow and low cost

Direct acting, this 3-port solenoid valve can operate reliably from zero to 125psi. Multi-purpose. Pipe valve as normally closed, normally open, diverter or selector function. Plug 1 or 3 port for 2-way function. Coil is encapsulated. Produced to Humphrey's industry leading, stringent leakage requirements. Made in USA. RoHS compliant.

Number of Ports 3 ports
Number of Positions 2 positions
Valve Function Single Solenoid, Multi-purpose
Piping Type Inline, Direct Piping
Coil Entry Orientation Standard, over port 2
Size (in) HxWxD 2.38 x 0.75 x 1.25
Media Air, Inert Gas
Type of Operation Direct Acting Type
Flow Capacity (Cv) 0.17
Port Size 1/8 NPSF
Lubrication Not Required
Media Filtration 40 Micron Recommended
Pressure Range (psi) 0-125
Response Time - ON/OFF (ms) 12/20
Maximum Duty Cycle 600 CPM
Ambient Temperature Range (⁰F) 32~125
Wetted Materials Anodized Aluminum, Brass, SST, Buna N, Acetal
Weight (oz) 4.0
Electrical Entry DIN style, Micro Type C (9.4mm)
Voltage 120/50/60
Voltage Range +10%, -15%
Power Consumption (w) 4.5
Manual Override Non-Locking
Compliance RoHS

ID #: 4106
