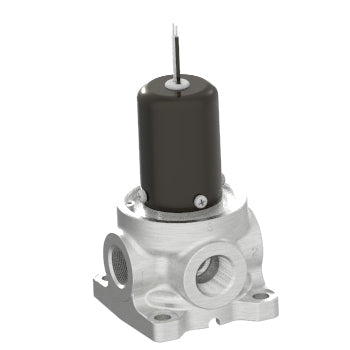

The 500 Series Diaphragm-Poppet Solenoid Valve shifts crisply / seals tight with each cycle, regardless of the media quality. When compared to other valve types, the diaphragm-poppet lasts longer in poor, moisture laden air. Excellent flow. Select from 2 or 3-way, normally closed or open, single or double solenoid in a variety of voltages. Internally piloted models operate within 30-125psi compressed air. Externally piloted models operate 0-125psi air, or alternate media. Optional FKM seals.
| Number of Ports | 3 ports |
| Number of Positions | 2 positions |
| Valve Function | 3-Way, Single Solenoid, Normally Closed |
| Piping Type | Inline, Direct Piping |
| Approx Size (in) HxWxD | 5.25 x 2.94 x 3.06 |
| Media | Air, Inert Gas |
| Type of Operation | Internal Pilot Type |
| Flow Capacity (Cv) | 2.67 |
| Port Size | 1/2 NPT |
| Lubrication | Not Required |
| Pressure Range (psi) | 30-125 |
| Response Time per Step (ms) | 25/40 |
| Operating Speed (cycles/min) | 600 |
| Ambient Temperature Range (⁰F) | 0~125 |
| Wetted Materials | Brass, SST, Buna N |
| Weight (oz) | 62.0 |
| Electrical Entry | Grommet w/18" lead wires |
| Voltage | 24VDC |
| Voltage Range | +10%, -15% |
| Power Consumption (w) | 6.6 |
ID #: 152518
