$56.25

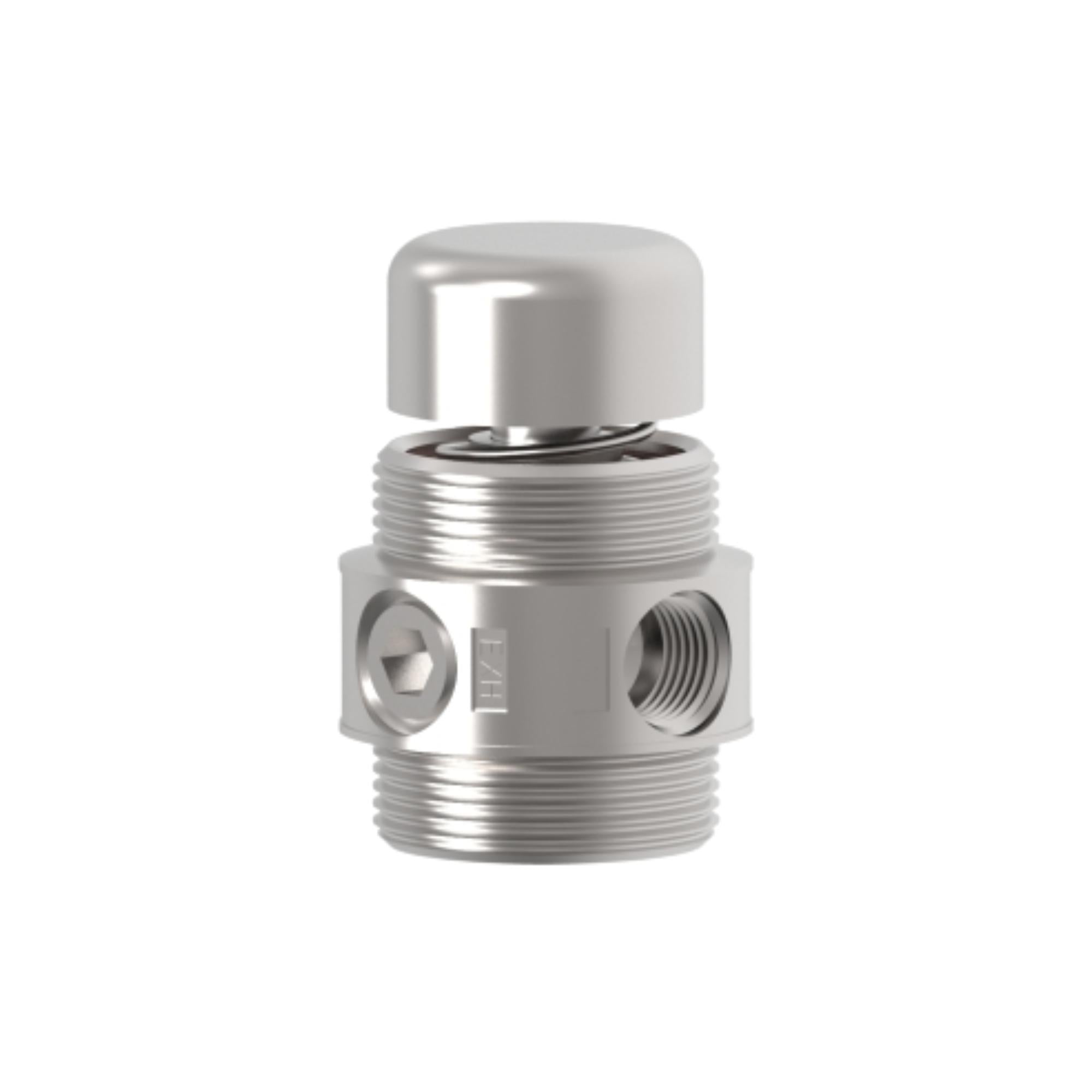

Humphrey | Diaphragm Poppet Manual Valve, N/O, 1/8, Push Button | 125P-2-11-20-40

Name: Humphrey | Diaphragm Poppet Manual Valve, N/O, 1/8, Push Button | 125P-2-11-20-40
Brand: Humphrey Products
SKU: 125P-2-11-20-40
Price: 56.25 USD
Availability: InStock

Mfr. Part #: 125P-2-11-20-40

Ships same day with standard 2-day shipping if ordered M-F before 3PM PT.

Pickup Available at Livermore

Humphrey 125P-2-11-20-40 2-way push button valve, 1/8" NPSF, 0.30 Cv, 125 PSI. Compact, bubble-tight for manual pneumatic control.

Key Features:
• 2-way normally open push button pneumatic valve from Humphrey 125P series
• Diaphragm poppet design with unbalanced air-spring return for bubble-tight sealing
• Compact size (1.74" H x 1.18" DIA) with 1/8" NPSF inline ports and 0.30 Cv flow coefficient
• Zinc plated steel and brass construction with Buna N seals; no lubrication required
• Operating pressure: 0-125 PSI; temperature range: -20°F to 225°F; actuation force: 5-8 lbs

Common Applications:
• Manual pneumatic control in industrial machinery and air circuits
• Push button actuation for actuators and cylinders in automation setups
• Inline air flow regulation in portable tools and equipment
• Simple directional control in low-to-medium pressure pneumatic systems

Specifications - 125P-2-11-20-40
Model	125P-2-11-20-40
Valve Type	2-Way Normally Open Push Button
Design	Diaphragm Poppet, Unbalanced Air-Spring Return
Port Size	1/8" NPSF Inline
Flow Coefficient (Cv)	0.30
Operating Pressure	0-125 PSI
Temperature Range	-20°F to 225°F
Actuation Force	5-8 lbs
Material	Zinc Plated Steel, Brass, Buna N Seals
Dimensions	1.74" H x 1.18" DIA
Applications	Manual pneumatic control, actuators, cylinders, automation, portable tools, directional control
