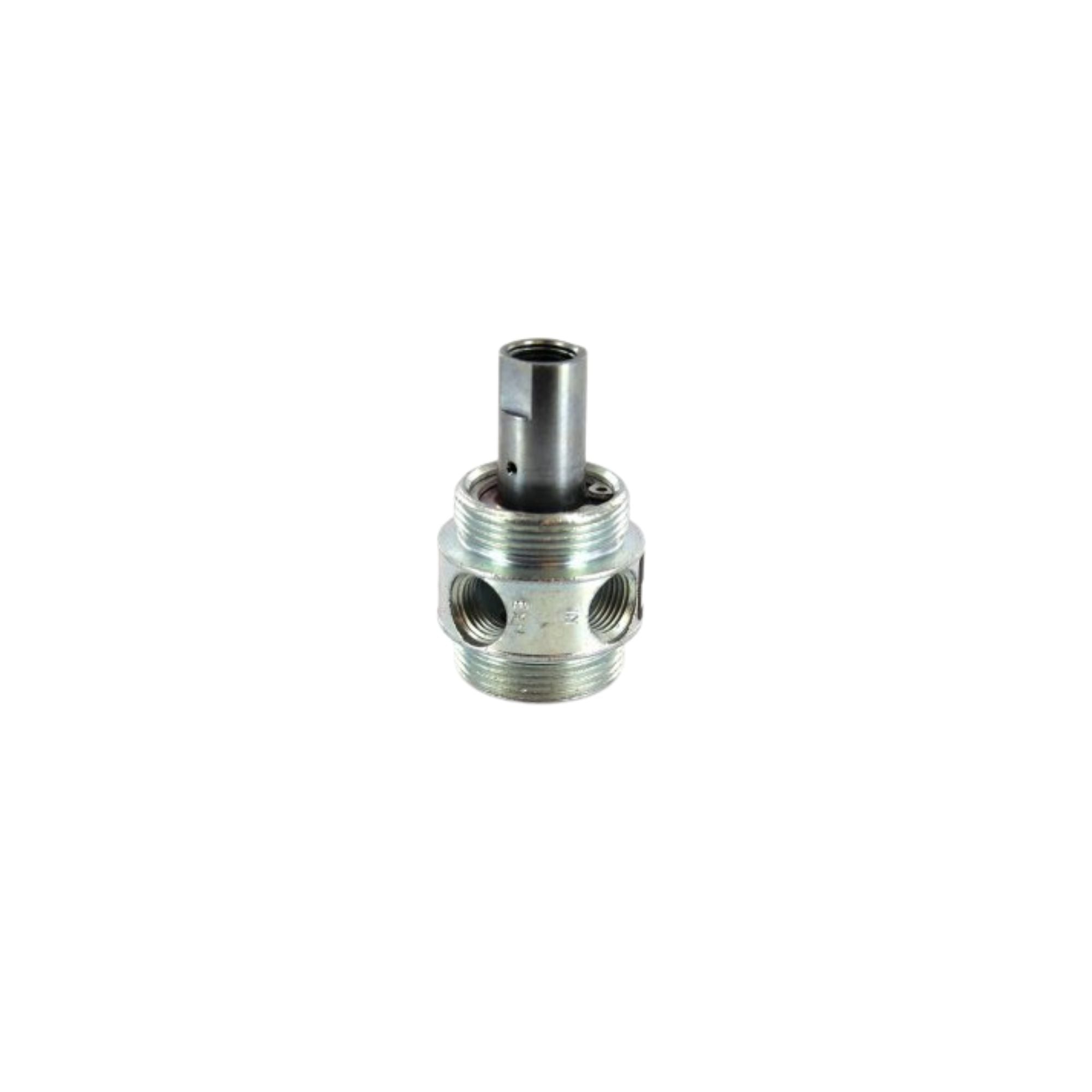

cylindrical valve with two ports in the center and another port at the top

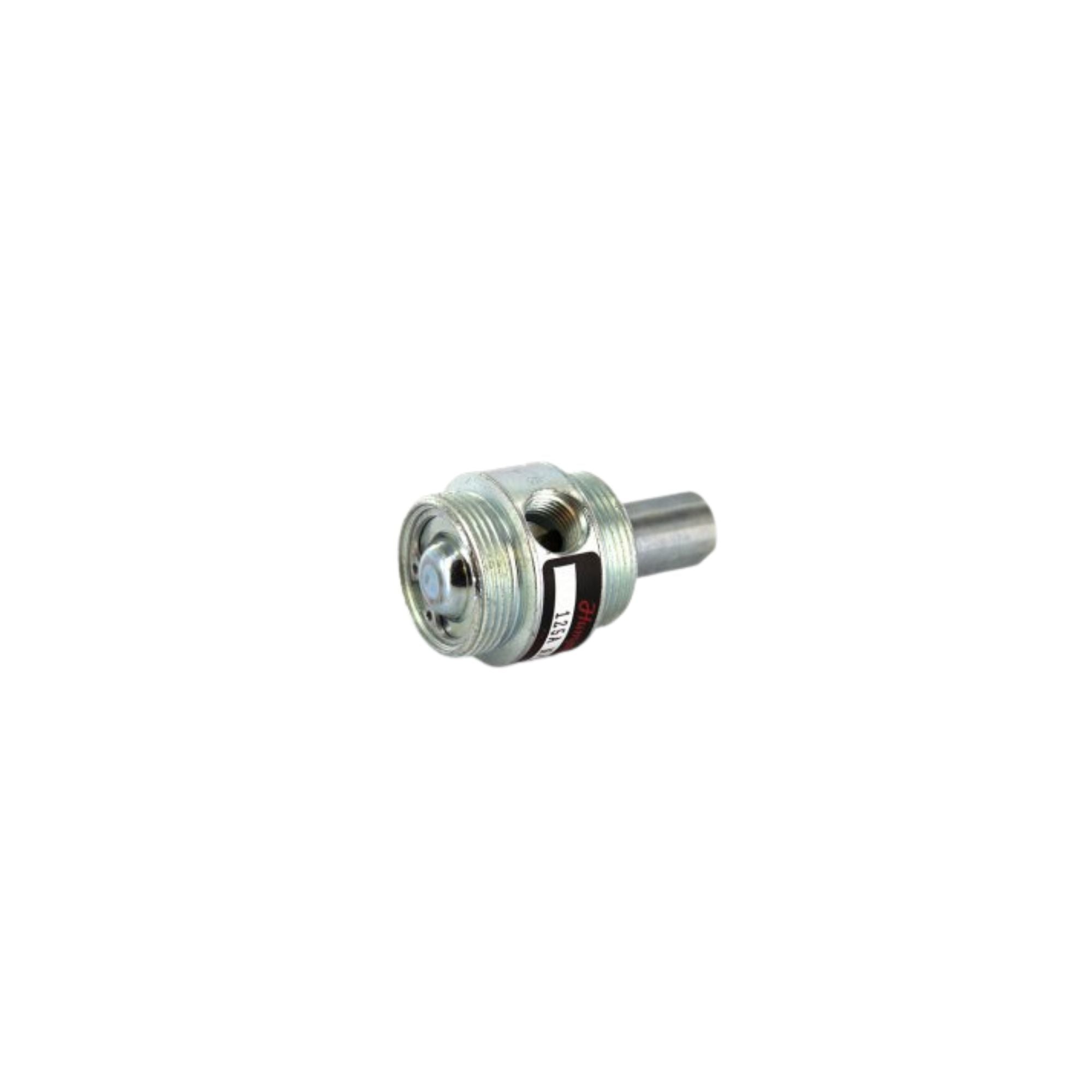

side view of a cylindrical shaped valve with one port showing

$54.29

Humphrey | Diaphragm Poppet | 125A-3-11-20

Mfr. Part #: 125A-3-11-20

Ships same day with standard 2-day shipping if ordered M-F before 3PM PT.

Pickup Available at Livermore

Quantity	Discount	Part Price
>10	5.0 %	$51.58

125A Series 1/8 pipe Air Pilot Valves feature the classic Humphrey diaphragm poppet principle. The unbalanced, air-spring return design assures reliable shifting and bubble-tight sealing actuated, and unactuated. Compact design permits close proximity mounting to work and fast cycling/quick exhaust. Rugged 2- or 3- way valves are available normally closed or normally open, in standard or optional brass body construction (for alternate media).

Number of Ports	3 ports
Number of Positions	2 positions
Valve Function	Single Pilot, Normally Open
Piping Type	Inline, Direct Piping
Size (in) HxWxD	2 x 1.19 DIA
Media	Air, Inert Gas
Type of Operation	Air Piloted

ID #: 2587
