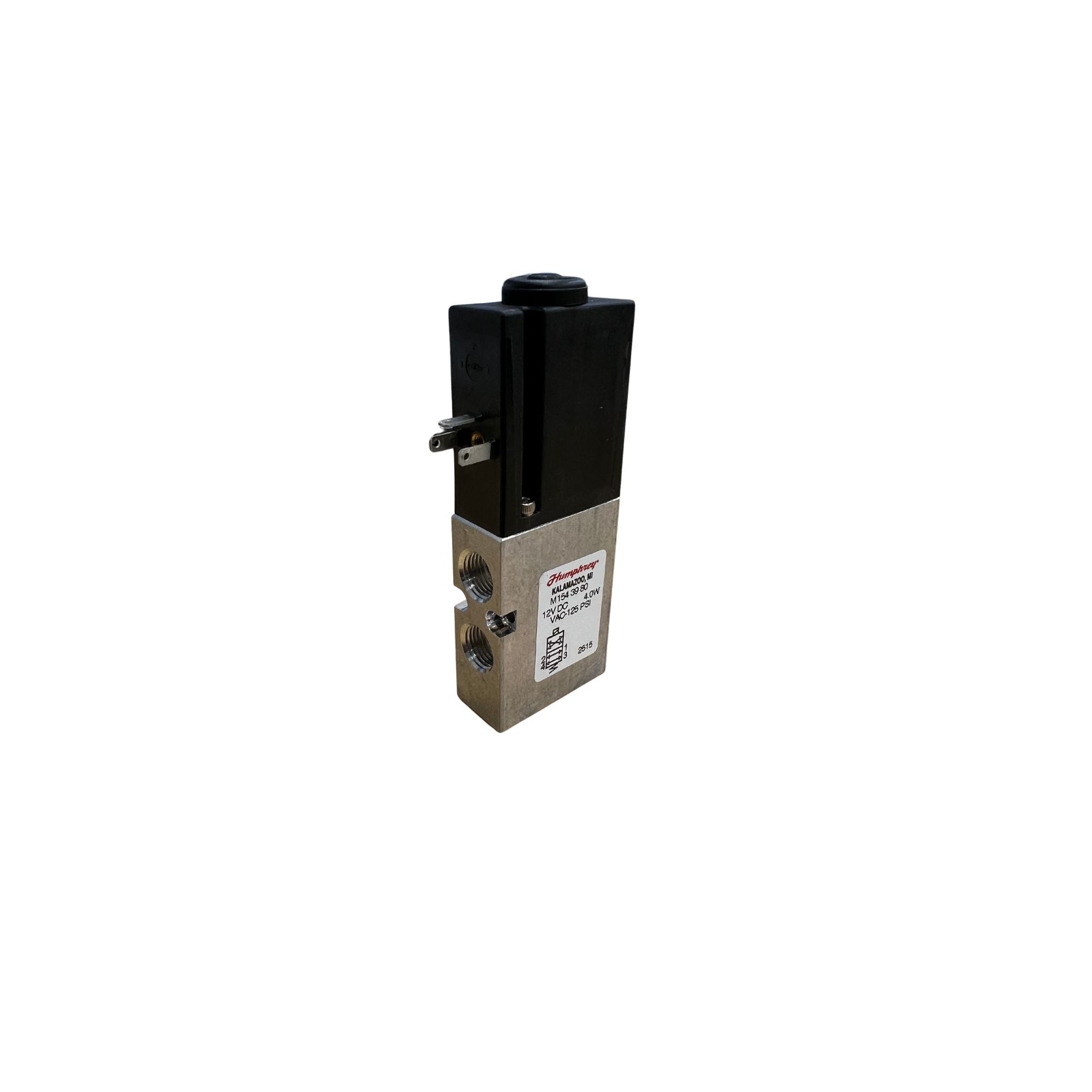

M154-39-80-12VDC
| Quantity | Discount | Part Price |
|---|---|---|
| >10 | Contact us for a quote | $54.65 |
1/8 NPSF, 15mm wide 154 Balanced Valve is compact, high flow and cost effective. Direct acting, the 4-port solenoid valve can be operated through the full pressure spectrum of vacuum ~ 125psi. Multi-purpose. Pipe valve as normally closed, normally open, diverter or selector 3-port valve functions, or as 4-way. Ideal for reliable control of double acting cylinders up to 1-1/4" bore (32mm). Consider IP67 models, suitable in moisture laden and dusty ambient environments. Also available in metric G1/8 or Rc1/8 porting. Made in USA. RoHS and REACH compliant.
| Number of Ports | 4 ports |
| Number of Positions | 2 positions |
| Valve Function | Single Solenoid, Multi-purpose |
| Piping Type | Manifold, Subbase 1&3 Port Piping |
| Coil Entry Orientation | Standard, over Port 2 |
| Size (in) HxWxD | 3.4 x 0.59 x 1.25 |
| Media | Air, Inert Gas, Vacuum |
| Type of Operation | Direct Acting Type |
| Flow Capacity (Cv) | 0.16 |
| Port Size | 1/8 NPSF |
| Lubrication | Not Required |
| Pressure Range (psi) | -25"Hg-125 |
| Response Time per Step (ms) | 20/6 |
| Operating Speed (cycles/min) | 600 |
| Ambient Temperature Range (⁰F) | 32~125 |
| Wetted Materials | Anodized Aluminum, Brass, SST, Buna N |
| Weight (oz) | 3.5 |
| Electrical Entry | DIN style, Micro Type C (9.4mm) |
| Voltage | 12VDC |
| Voltage Range | +/-10% |
| Power Consumption (w) | 4.0 |
| Manual Override | Non-Locking |
| Compliance | RoHS, REACH |
ID #: 140453
