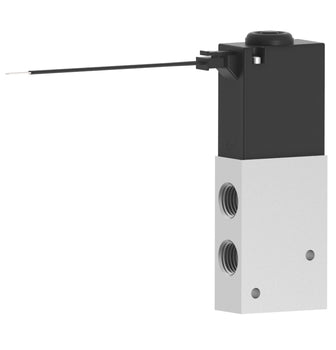

Humphrey | Balanced Solenoid Valve | 194-37-80-24VDC

5 in stock | Need More? >>

1/4 NPSF, 19mm wide 194 Balanced Valve is compact, high flow and cost effective. Direct acting, the 4-port solenoid valve can be operated through the full pressure spectrum of vacuum ~ 125psi. Multi-purpose. Pipe valve as normally closed, normally open, diverter or selector 3-port valve functions, or as 4-way. Ideal for reliable control of double acting cylinders up to 2" bore (50mm). Consider IP67 models, suitable in moisture laden and dusty ambient environments. Also available in metric G1/4 or Rc1/4 porting. Made in USA. RoHS and REACH compliant.

Number of Ports 4 ports
Number of Positions 2 positions
Valve Function Single Solenoid, Multi-purpose
Piping Type Inline, Direct Piping
Coil Entry Orientation Standard, over Port 2
Size (in) HxWxD 4.12 x 0.75 x 1.5
Media Air, Inert Gas, Vacuum
Type of Operation Direct Acting Type
Flow Capacity (Cv) 0.47
Port Size 1/4 NPSF
Lubrication Not Required
Pressure Range (psi) -25"Hg-125
Response Time per Step (ms) 21/5
Operating Speed (cycles/min) 600
Ambient Temperature Range (⁰F) 32~125
Wetted Materials Anodized Aluminum, Brass, SST, Buna N
Weight (oz) 7.0
Electrical Entry Plug-in w/12" lead wires
Voltage 24VDC
Voltage Range +/-10%
Power Consumption (w) 6.0
Manual Override Non-Locking
Compliance RoHS, REACH

ID #: 140463
