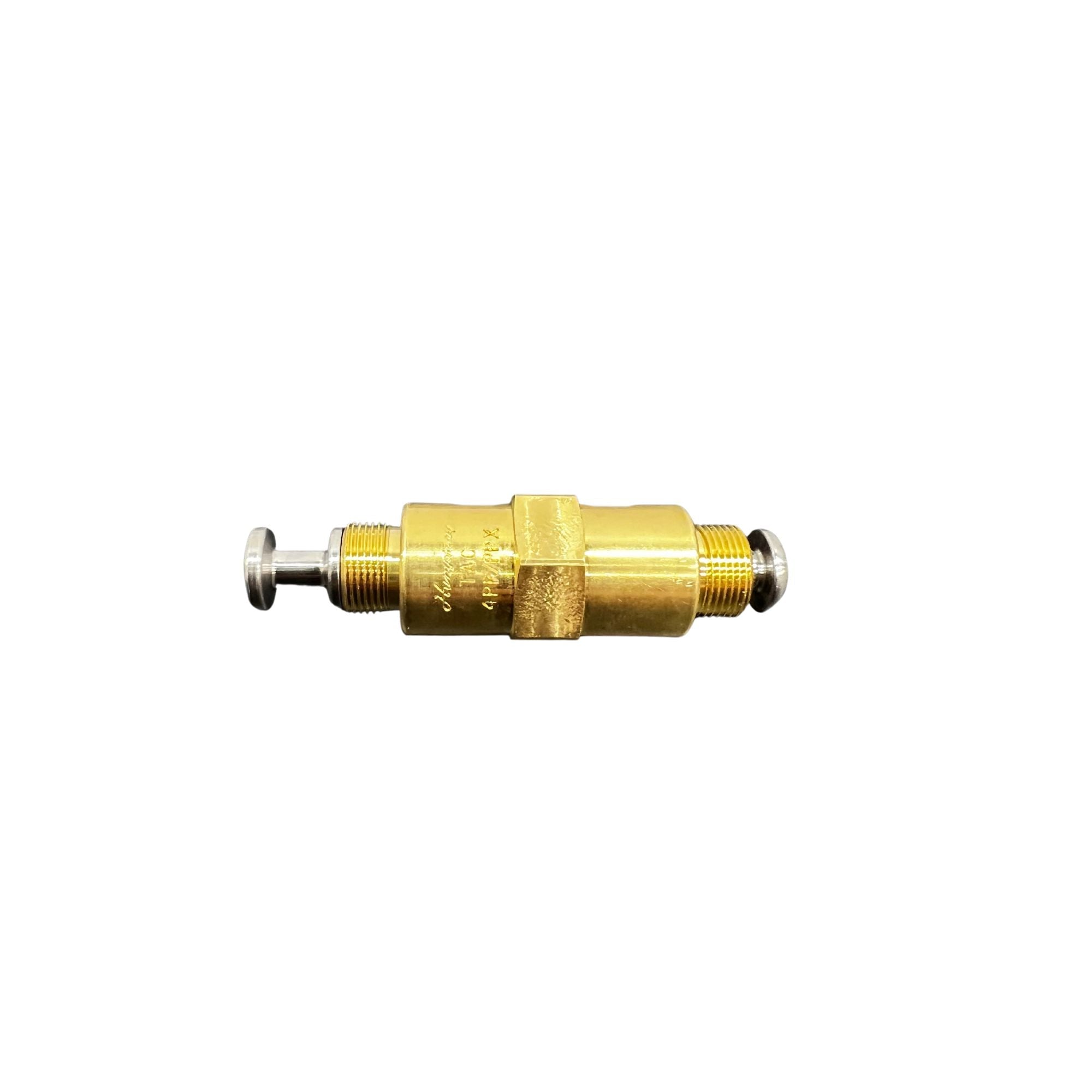

Four way miniature push-pull button valve, detent, with 1/8 pipe ports. All TAC pushbutton valves feature an attractive, work hardened SST button above a 15/32-32 threaded collar. Feature permits panel mounting and bottoms out on collar to prevent valve overstroke. Compact. Rugged. Exhaust metering screws included.
| Number of Ports | 5 ports |
| Number of Positions | 2 positions |
| Valve Function | 4-way, Detent |
| Piping Type | Inline, Direct Piping |
| Options Included | Panel Mounting Hardware |
| Approx Size (in) HxWxD | 2.61 x 0.69 HEX |
| Media | Air |
| Type of Operation | Push & Push/Pull button |
| Flow Capacity (Cv) | 0.18 |
| Port Size | 10-32 UNF |
| Lubrication | Recommended |
ID #: 4898
