Gast | Vaccum Compressor Pump , 4.3 LPM, 12 VDC | 10D1126-401-7049B

Mfr. Part #: 10D1126-401-7049B

Ships same day with standard 2-day shipping if ordered M-F before 3PM PT.

ID #: 206889

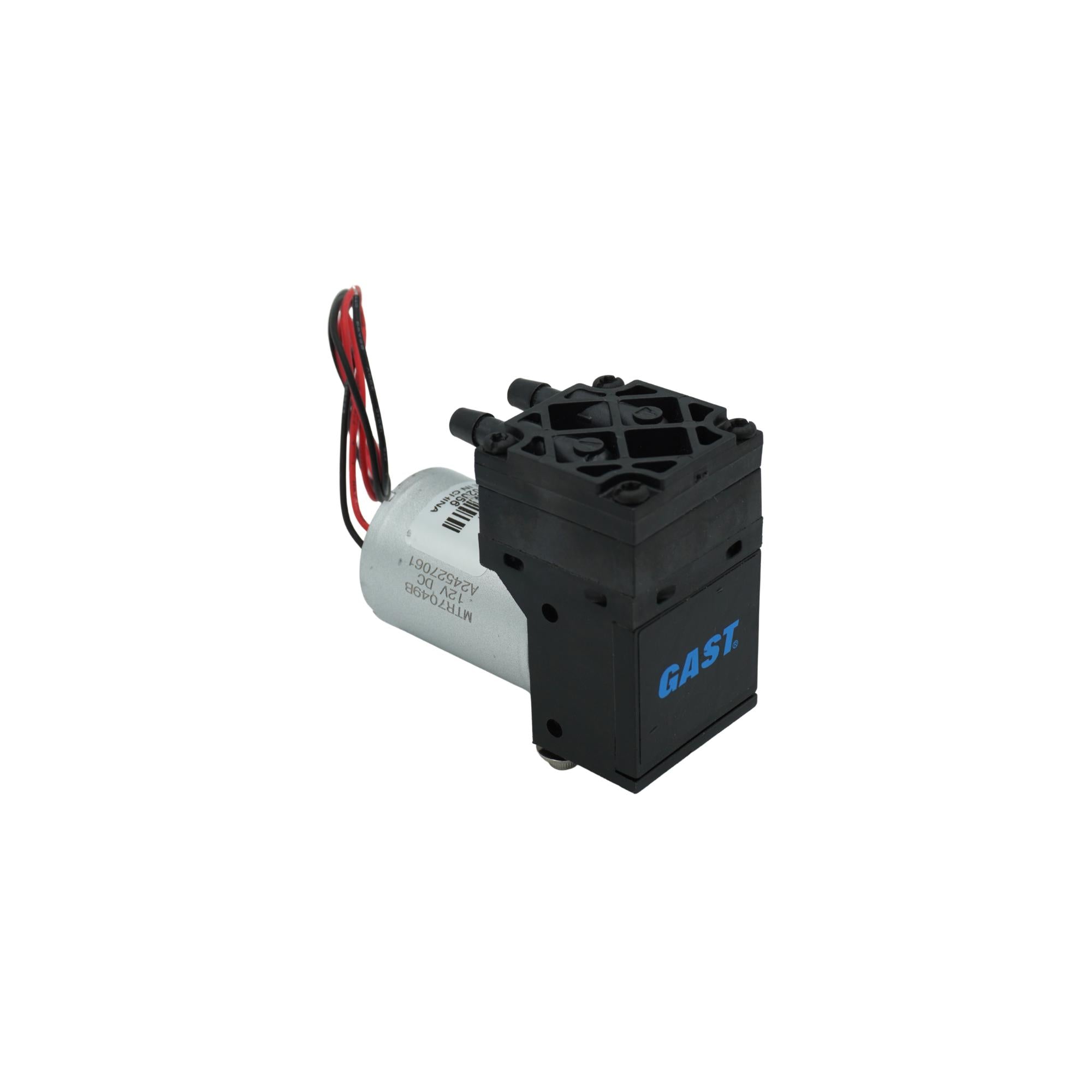

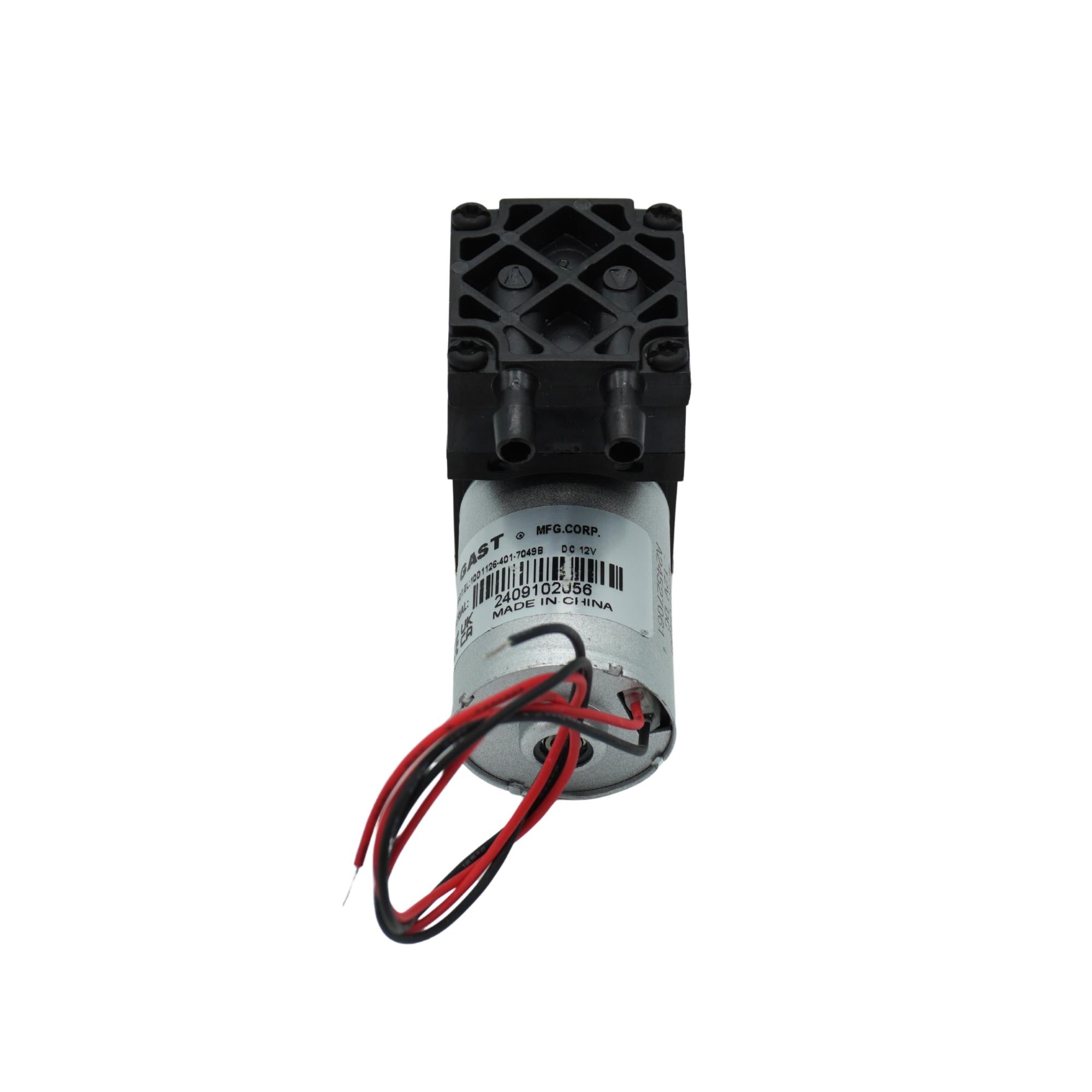

GAST 10D1126-401-7049B diaphragm compressor/vacuum pump, 12V DC, oil-less design, compact, quiet, and low-maintenance.

Replaces 10D1125-101-1052
Key Features:
- Dual-function: operates as both a compressor and a vacuum pump
- Compact, oil-less diaphragm design ensures clean, quiet, and low-maintenance operation
- Powered by 12 V DC
- Very low output power (~1/64 HP)
- Maximum vacuum capability: around 14 in Hg
- Maximum continuous pressure: approximately 15 psi
- Maximum intermittent pressure: approximately 17 psi
- Equipped with wire-lead connections for straightforward electrical installation

Typical Applications:
- Small-scale pneumatic systems requiring both vacuum and pressure
- Portable or battery-powered medical and lab equipment
- HVAC tool accessories and diagnostic gear
- Automated machinery with localized air handling needs
- Refrigeration servicing devices and other compact industrial tools

GAST 10D1126-401-7049B Specifications
Part Number	10D1126-401-7049B
Product Type	Diaphragm Compressor / Vacuum Pump
Manufacturer	GAST Manufacturing
Power Supply	12 V DC
Output Power	~1/64 HP
Maximum Vacuum	14 in Hg
Maximum Continuous Pressure	15 psi
Maximum Intermittent Pressure	17 psi
Design	Oil-less diaphragm, compact, quiet, low maintenance
Connections	Wire-lead electrical connections
Applications	Pneumatic systems requiring pressure & vacuum Medical & laboratory equipment HVAC tools & diagnostic gear Automated machinery air handling Refrigeration servicing devices
