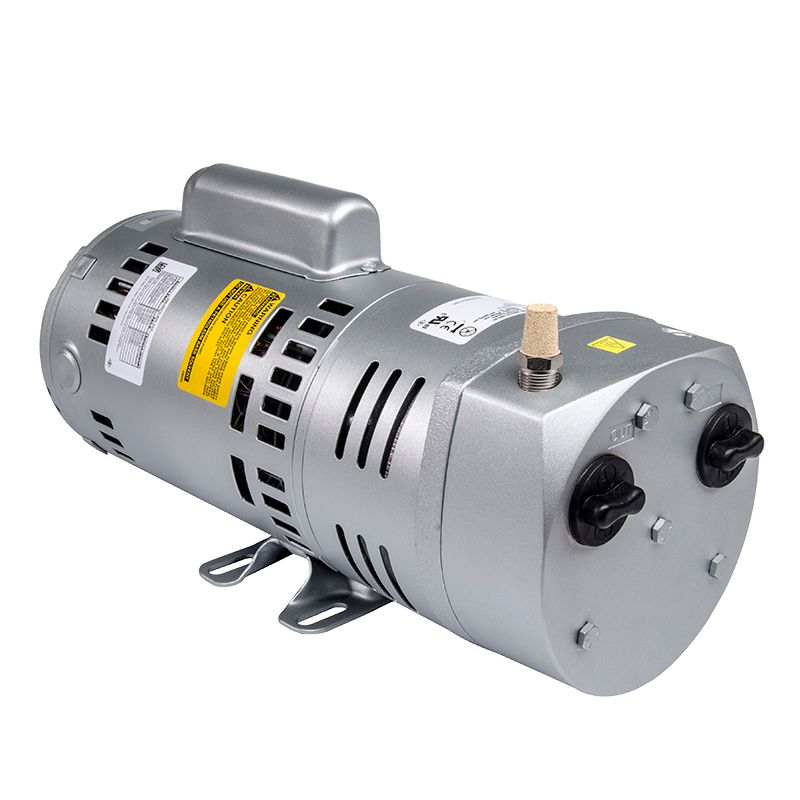

Gast | Rotary Vane Air Pump | 1023-101Q-G608NEX

Mfr. Part #: 1023-101Q-G608NEX

13 in stock | Need More? >>

Ships same day with standard 2-day shipping if ordered M-F before 3PM PT.

Pickup Available at Livermore

ID #: 151421

  • The easy to install, rugged 1023 allows for higher vacuum levels and provides better internal corrosion protection and longer life. Their internal sound suppression results in lower operating noise levels, which makes them well suited for noise sensitive environments like medical, dental and laboratory applications. In addition, these compact units offer high flow, pulse free air making them ideal for applications requiring consistent air pressure and air flow.

    Alternate Item Number: 1023-V131Q-G608NEX

  • Common Applications

    • Provides consistent airflow for wastewater treatment, supporting systems processing up to 1,000 gallons per day. ​
    • Ideal for noise-sensitive settings due to its internal sound suppression and pulse-free airflow. ​
    • Used in applications requiring steady vacuum or pressure, such as pneumatic systems, robotics, and automation. ​
    • Delivers reliable, low-maintenance aeration for aquatic environments. ​

    Key Features

    • Operates as both a compressor and vacuum pump.​
    • Delivers up to 10 CFM airflow and achieves a maximum vacuum of 26 in-Hg. ​
    • Features a cast iron housing and sealed bearings for longevity.​

    • Equipped with overload protection to prevent motor damage.​
    • Oil-less design with easily serviceable vanes and filters
  • Thermal Protection

     YES

    Operating Voltage

     100-110/220-240; 100-115/208-230

    Regulatory Approval

     cURus, CE

    Vanes

     4

    Flow‎ @ 50hz

     8.5 cfm( 14.44 m3h )

    Flow @ 60hz

     10 cfm( 16.99 m3h )

    Max Pressure

     10 psi( 0.69 bar )

    Max Pressure @ 50hz

     10 psi( 0.69 bar )

    Max Pressure @ 60hz

     10 psi( 0.69 bar )

    Max Vacuum @ 50hz

     26 in-hg( 880.46 mbar )

    Max Vacuum @ 60hz‎

     26 in-hg( 880.46 mbar )

    Weight

     47 lbs( 21.32 kg )

    Duty Cycle

     100%

    Warranty

     1 Year
