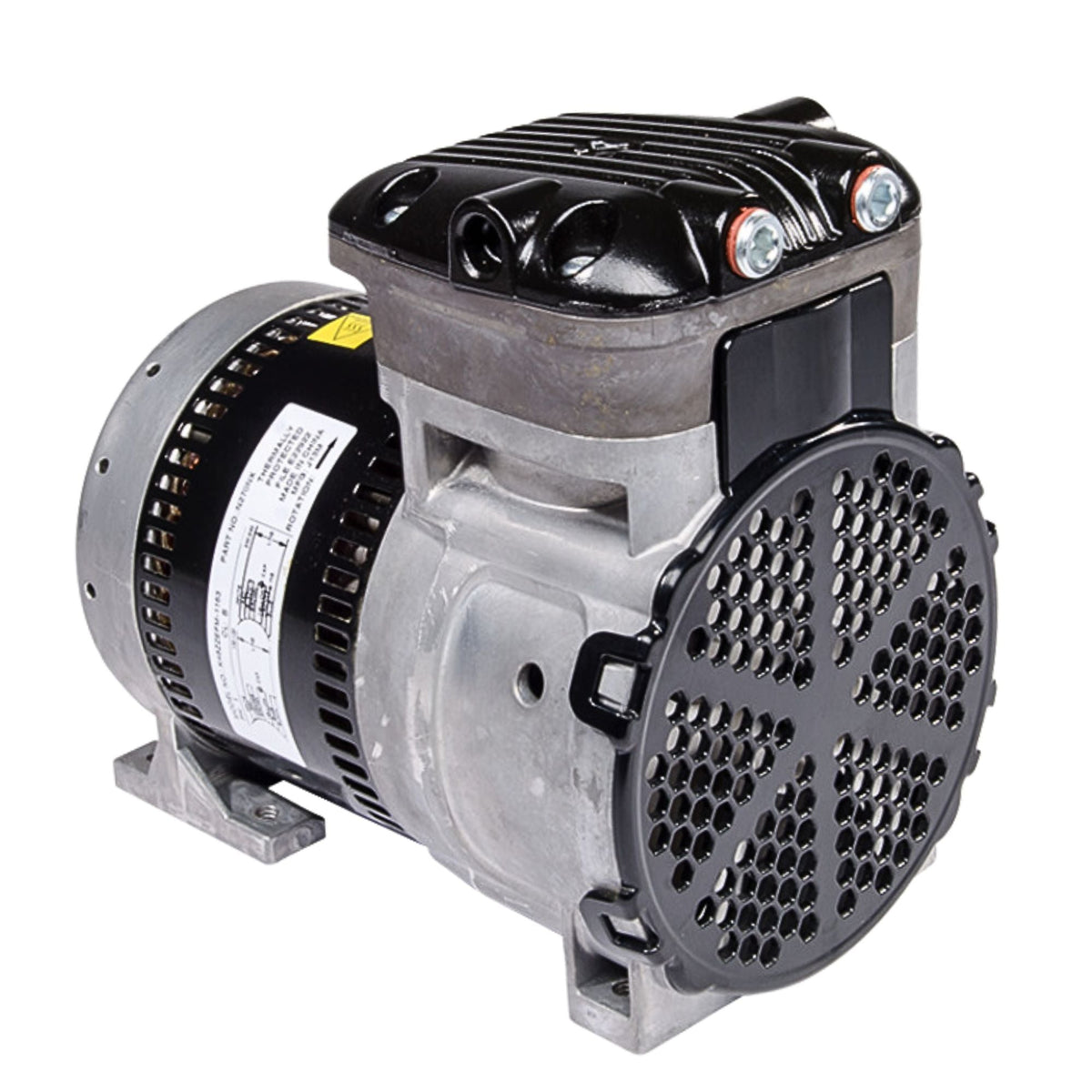

Gast | Rocking Piston Compressor 1/4HP, Dual Voltage | 86R135-101-N270X

Mfr. Part #: 86R135-101-N270X

130 in stock | Need More? >>

Ships same day with standard 2-day shipping if ordered M-F before 3PM PT.

Pickup Available at Livermore

ID #: 65402

  • The sleek, new 86R redefines industry standards by delivering higher-pressure performance at significantly lower sound levels. Re-engineered from the ground up, these oil-less rocking piston compressors and vacuum pumps offer outstanding performance, durability, and flexibility making them the ideal choice for a wide array of applications. Not to mention, they're also easy to retrofit, have lower exhaust temperatures and carry a longer life span.

    This family of products can be upgraded with Sound Shield which delivers up to a 25% dB(A) drop and a 40% Sone decrease compared to our standard offerings. Please review the chart at the bottom of the page to determine if your configuration (single or twin cylinder, pressure or flow) is available. To learn more about Sound Shield technology and to hear it for yourself, please click on the "Sound Shield Available" button or contact your local GAST authorized distributor.

  • The Gast 86R135-101-N270X is a quiet, oil-less rocking piston compressor and vacuum pump built for high performance.

    Key Features:
    - Oil-less design for low maintenance and clean operation
    - Delivers up to 125 psi pressure and 26.5 inHg vacuum
    - Flow rates: 1.4 cfm at 50 Hz, 1.7 cfm at 60 Hz
    - Automatic thermal protection
    - Operates quietly (below 65 dB)
    - Supports 100–120V and 200–240V at 50/60 Hz
    - Durable metal construction
    - 100% duty cycle for continuous use
    - Includes 1-year warranty

    Common Applications:
    - Air sampling and emission testing
    - Food and beverage packaging systems
    - Industrial pneumatic systems
    - Vehicle diagnostics and testing
    - Medical and lab vacuum equipment
    - Vacuum forming and packaging
    - Material handling systems

  • SPECIFICATIONS
    Thermal Protection YES
    Operating Voltage 100-120-200-240/50-60
    Regulatory Approval UL / CE
    Flow @ 50hz 1.4 cfm ( 2.38 m3h )
    Flow @ 60hz 1.7 cfm ( 2.89 m3h )
    Max Pressure 125 psi ( 8.62 bar )
    Max Pressure @ 50hz 125 psi ( 8.62 bar )
    Max Pressure @ 60hz 125 psi ( 8.62 bar )
    Max Vacuum @ 50hz 26.5 in-hg ( 897.39 mbar )
    Max Vacuum @ 60hz 26.5 in-hg ( 897.39 mbar )
    Weight 14.9 lbs ( 6.76 kg )
    Duty Cycle 100%
    Warranty 1 Year
