Gast | Air Motor 1-1/2HP Reversible | 4AM-NRV-50C

Name: Gast | Air Motor 1-1/2HP Reversible | 4AM-NRV-50C
Brand: Gast Manufacturing Corporation
SKU: 4AM-NRV-50C
Price: 508.62 USD
Availability: InStock

Mfr. Part #: 4AM-NRV-50C

Ships same day with standard 2-day shipping if ordered M-F before 3PM PT.

Pickup Available at Livermore

ID #: 4799

Description
Features
Specifications
Resources

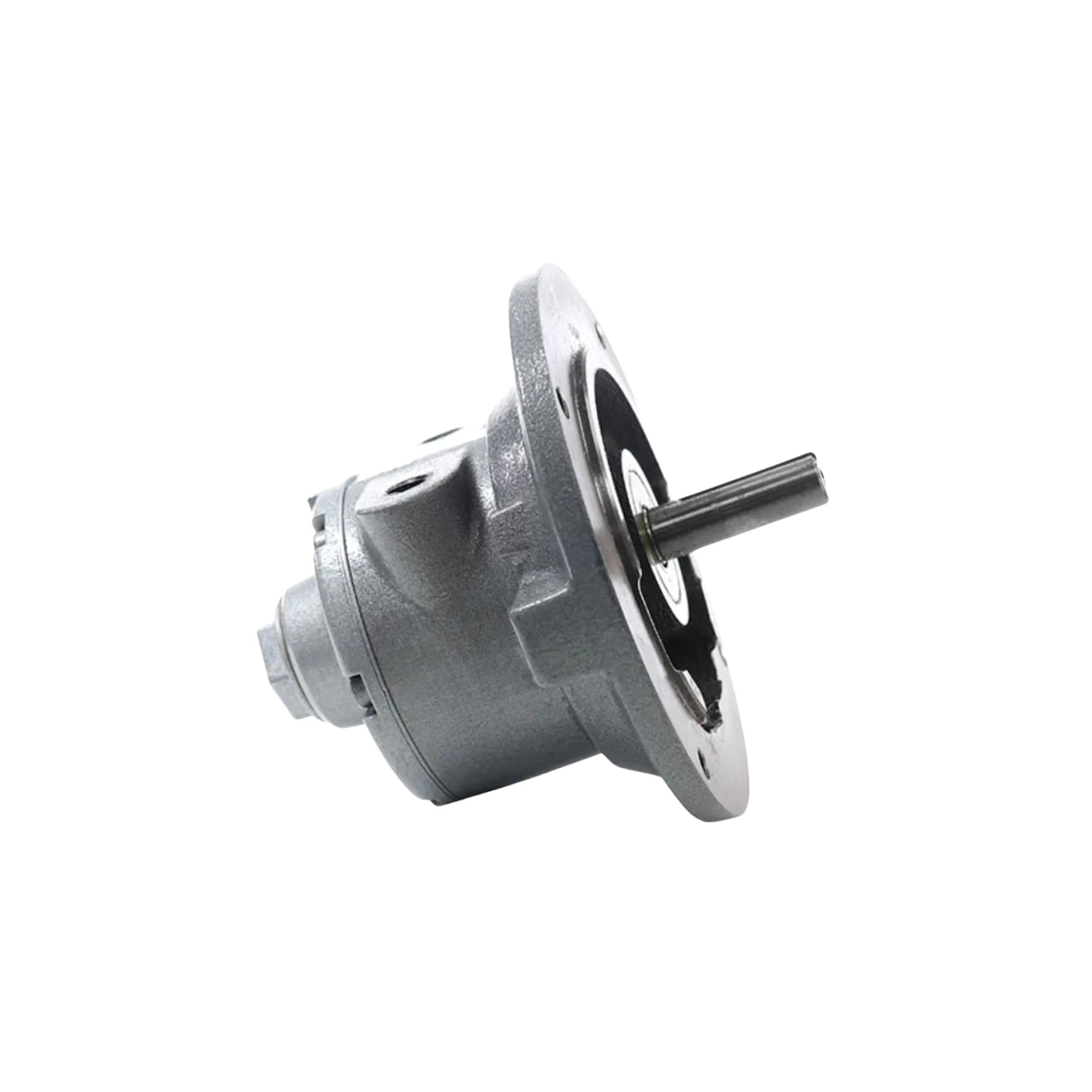

Gast 4AM-NRV-50C 1.7 HP Reversible Air Motor - 3000 RPM, 100 PSI, 56 lb/in Torque, ATEX Certified, 56C Flange - Ideal for Mixers, Conveyors & Hazardous Locations.
Key Features:
- Maximum power output: 1.7 HP.
- Maximum torque: 56 lb/in (at 300 rpm); torque at max speed: 36 lb/in.
- Speed range: Up to 3,000 rpm.
- Operating pressure: Up to 100 PSI (7 bar).
- Air consumption: Up to 78 CFM.
- Reversible rotation with instant start/stop/reverse.
- Cool-running operation; stall-proof without damage.
- Spark-free design, certified CE and ATEX for hazardous locations.
- Four-vane configuration for smooth performance; weight: 11 lbs.
- Ports: 1/4" NPT; keyed output shaft.

Common Applications:
- Driving conveyor systems in manufacturing.
- Powering industrial mixers and agitators.
- Operating hoists and winches in material handling.
- Automation in packaging equipment.
- Hazardous environment tools, such as in chemical processing or painting booths.

Specification	Details
Part Number	4AM-NRV-50C
Manufacturer	Gast Manufacturing
Type	Lubricated Rotary Vane Air Motor
Maximum Power	1.7 HP
Maximum Speed	3,000 RPM
Maximum Torque	56 lb/in (6.3 Nm)
Operating Pressure	100 PSI (7 bar) max
Air Consumption	78 CFM max
Direction	Reversible
Mounting	NEMA 56C Face/Flange
Port Size	1/4" NPT
Certifications	CE, ATEX (hazardous locations)
Weight	11 lbs (5 kg)
Features	Stall-proof, cool-running, spark-free
