Gast | 1.5HP-4 Vane-Vacuum pump | 2565-V2A used on gast product line
Free 2-Day Shipping
$1,459.22

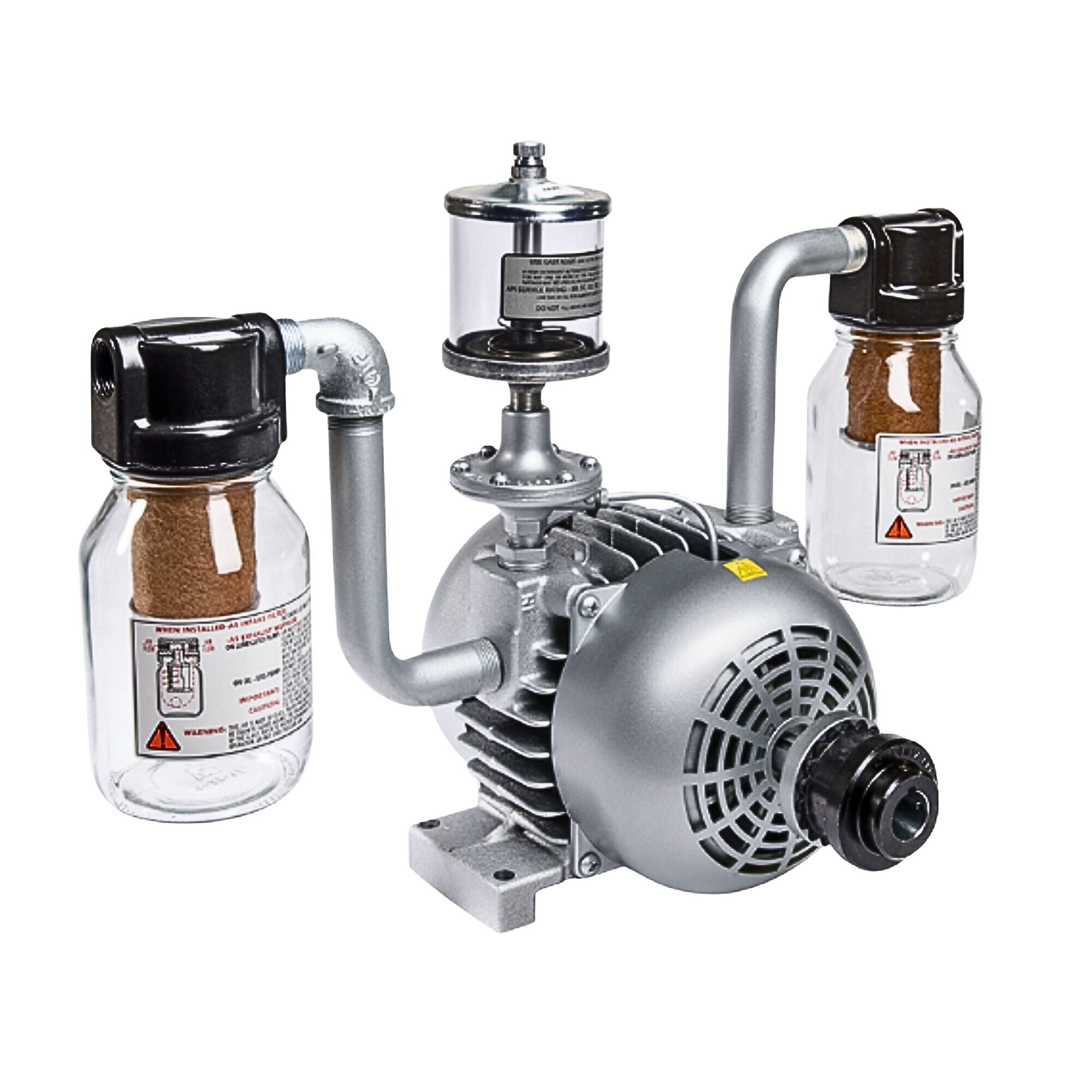

Gast | 1.5HP-4 Vane-Vacuum pump | 2565-V2A


Mfr. Part #: 2565-V2A

7 in stock | Need More? >>


Ships same day with standard 2-day shipping if ordered M-F before 3PM PT.

Pickup Available at Livermore

ID #: 3866

  • The easy to install, rugged 2565 allows for higher vacuum levels and provides better internal corrosion protection and longer life. Their internal sound suppression results in lower operating noise levels, which makes them well suited for noise sensitive environments like medical, dental and laboratory applications. In addition, these compact units offer high flow, pulse free air making them ideal for applications requiring consistent air pressure and air flow.

  • The Gast 2565-V2A is a high-performance, oil-lubricated rotary vane vacuum pump designed for continuous operation in demanding applications. Its robust construction and efficient design make it ideal for various industrial and laboratory settings.

    Key Features:
    - Oil-lubricated rotary vane design for enhanced durability
    - Delivers up to 21 cfm (35.68 m³/h) free air flow at 60 Hz
    - Achieves a maximum vacuum of 28 inHg (948.19 mbar)
    - Maximum continuous pressure of 15 psi (1.03 bar)
    - Operates at 1.5 hp (1.1 kW) with a maximum speed of 1,725 RPM
    - 100% duty cycle for continuous use
    - Compact design with 3/4" NPT inlet and outlet ports
    - Includes oil reservoir, pressure/vacuum lubricator, and pressure gauge
    - Suitable for temperatures ranging from 33.8°F (1°C) to 104°F (40°C)
    - Weighs approximately 38 lbs (17.24 kg)
    - CE certified
    - Includes 1-year warranty

    Common Applications:
    - Laboratory and research instrumentation
    - Medical and dental equipment
    - Food and beverage processing
    - Environmental monitoring systems
    - Industrial automation and OEM machinery
    - Printing and packaging equipment
    - Material handling and pneumatic systems

  • SPECIFICATIONS
    Thermal Protection NO
    Regulatory Approval CE
    Power Requirement 1 1/2
    Vanes 4
    Flow @ 50hz 16.5 cfm ( 28.03 m3h )
    Flow @ 60hz 21 cfm ( 35.68 m3h )
    Max Vacuum @ 50hz 28 in-hg ( 948.19 mbar )
    Max Vacuum @ 60hz 28 in-hg ( 948.19 mbar )
    Weight 38 lbs ( 17.24 kg )
    Duty Cycle 100%
    Warranty 1 Year
