$21.80

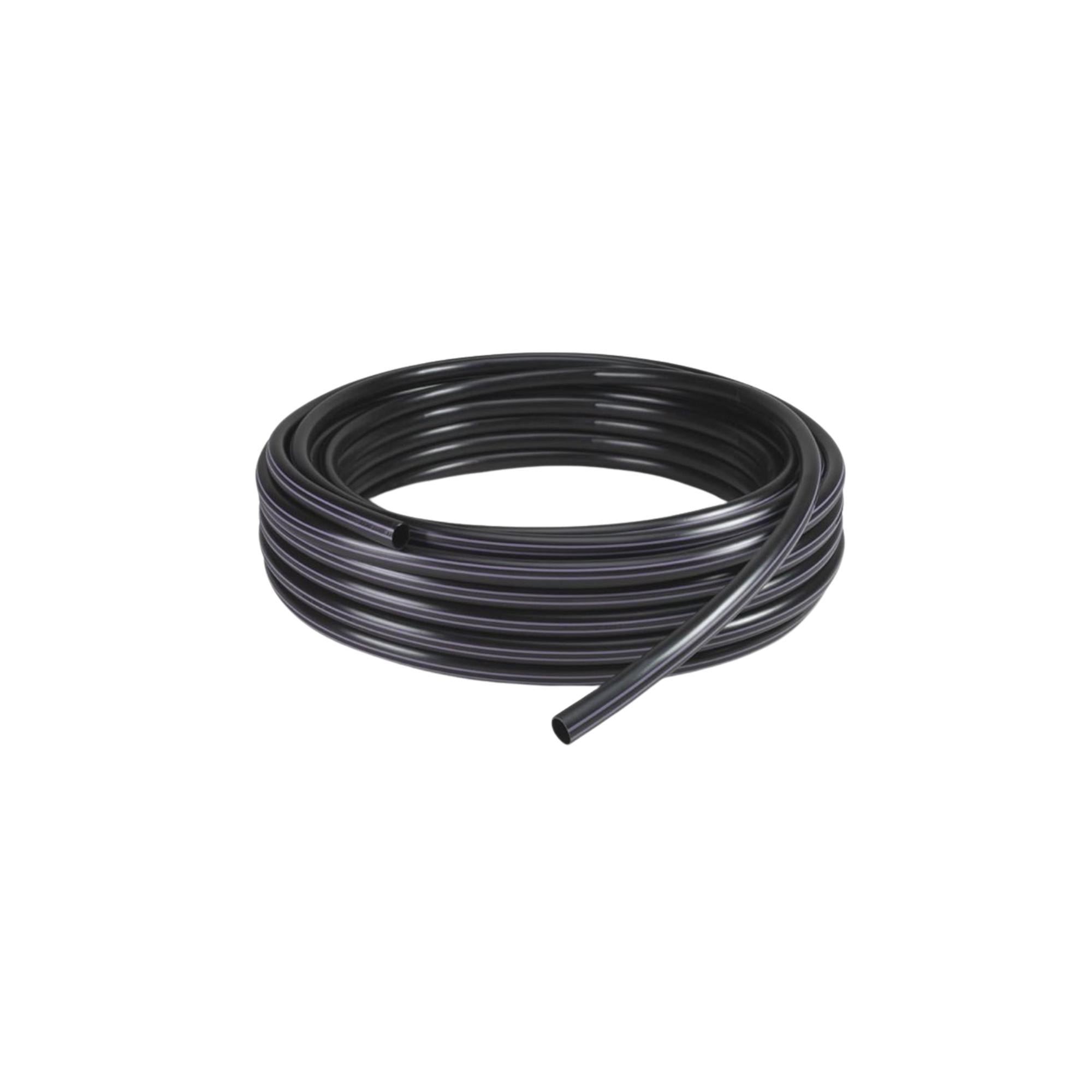

Freelin Wade | Black Nylon D.O.T. Tubing 100' Bag 1/8" O.D. | 1J-220-01

Name: Freelin Wade | Black Nylon D.O.T. Tubing 100' Bag 1/8" O.D. | 1J-220-01
Brand: Freelin-Wade Company
SKU: 1J-220-01
Price: 21.80 USD
Availability: InStock

Mfr. Part #: 1J-220-01

Ships same day with standard 2-day shipping if ordered M-F before 3PM PT.

Pickup Available at Livermore

Freelin-Wade 1J-220-01: 1/8" OD Nylon 11 DOT Tubing, 1000 PSI burst, UV-stabilized, flexible air brake & pneumatic lines. 100ft bag. SAE J844 compliant.

Key Features:
- Material: Nylon 11 (strong, lightweight, flexible)
- Outer Diameter: 1/8 inch
- Wall Thickness: 0.023 inch
- Temperature Range: -60°F to +200°F
- Vacuum Rating: To 28 inches Hg
- Burst Pressure: 1000 PSI (with 4:1 safety factor)
- Bend Radius: 3/8 inch
- Hardness: 78 Rockwell R
- UV Stabilized: Yes
- Compliant: SAE J844 Type A, DOT marked, meets UL94HB
- Compatible Fittings: Push-In, Compression
- Packaging: 100 ft bag

Common Applications:
- Air brake systems on vehicles
- Pneumatic instrumentation in automotive settings
- DOT-compliant pneumatic accessories

Specification	Details
Part Number	1J-220-01
Brand	Freelin-Wade
Material	Nylon 11
Outside Diameter	1/8" (0.125")
Wall Thickness	0.023"
Burst Pressure	1000 PSI (4:1 safety factor)
Temperature Range	-60°F to +200°F
Vacuum Rating	28" Hg
Bend Radius	3/8"
Hardness	78 Rockwell R
Compliance	DOT FMVSS 571.106, SAE J844 Type A, UL94HB
UV Stabilized	Yes
Compatible Fittings	Push-to-Connect, Compression
Packaging	100 ft bag
