Freelin-Wade | 1/4" DOT Nylon Tube, Red | 1J-223-05

Name: Freelin-Wade | 1/4" DOT Nylon Tube, Red | 1J-223-05
Brand: Freelin-Wade Company
SKU: 1J-223-05
Price: 52.13 USD
Availability: InStock

Mfr. Part #: 1J-223-05

Ships same day with standard 2-day shipping if ordered M-F before 3PM PT.

Pickup Available at Livermore

ID #: 195120

Description
Features
Specifications
Resources

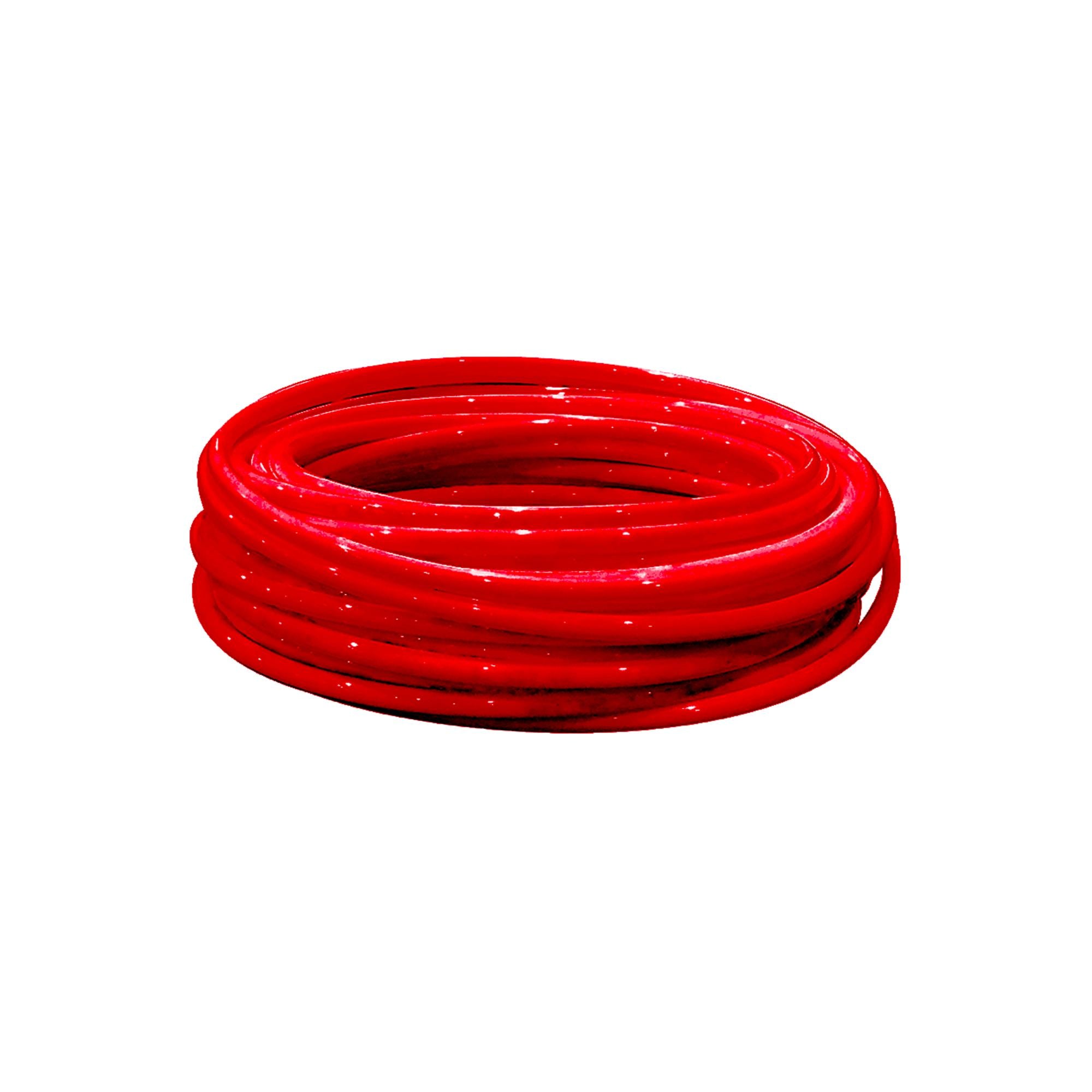

Durable 1/4" DOT-rated nylon tubing ideal for pneumatic, air brake, and industrial fluid systems, offering high pressure strength and excellent chemical resistance.
Key Properties:
- 1/4" outer diameter (OD) nylon tubing, DOT-223 series.
- Manufactured by Freelin‑Wade as “Nylon DOT ‘A’ Tubing”.
- The tubing is made from nylon (polyamide) — giving it good heat resistance, chemical and abrasion resistance, and dimensional stability.
- Temperature rating: approximately –60 °F to +200 °F (–51 °C to ~93 °C).
- Vacuum rating: to 28″ Hg.
- Compatible with push-in or compression-type fittings.
- Offers a high pressure safety margin (standard tubing built with a 4:1 safety factor according to manufacturer docs) for pneumatic / fluid applications.

Common Applications:
- Pneumatic air lines (e.g. for compressed air systems, air brakes) — “DOT”-rated tubing suitable for vehicular or industrial pneumatic systems.
- Hydraulic or vacuum lines where nylon’s chemical and abrasion resistance is advantageous.
- Chemical processing, oil/fluid transport, or lubricant delivery systems requiring corrosion- and chemical-resistant tubing.
- Automation / robotics / manufacturing equipment pneumatic tubing, where flexibility, reliability and resistance to environmental factors (heat, UV, chemicals) matter.
- General industrial fluid or gas transfer lines — as a lightweight alternative to metal tubing when appropriate.

**1J-223-05 — Product Specifications**
Part Number	1J-223-05
Manufacturer	Freelin-Wade
Series / Type	DOT-223 (Nylon DOT "A" tubing)
Material	Nylon (polyamide)
Outer Diameter (OD)	1/4" (6.35 mm)
Temperature Range	−60°F to +200°F (−51°C to +93°C)
Vacuum Rating	Up to 28" Hg
Safety Factor	Manufacturer standard 4:1 design safety margin
Fitting Compatibility	Push-in / compression-type fittings (standard pneumatic fittings)
Typical Applications	Pneumatic air lines, air brake systems, vacuum lines, fluid/lubricant delivery, automation & robotics pneumatic systems
Notes	DOT-rated nylon tubing with good chemical, abrasion and dimensional stability; consult manufacturer for exact pressure ratings and available colors/sizes.
