ControlAir | 4-20mA 0-120PSI | 550-AKA

Name: ControlAir | 4-20mA 0-120PSI | 550-AKA
Brand: ControlAir LLC
SKU: 550-AKA
Price: 517.59 USD
Availability: InStock

Mfr. Part #: 550-AKA

Ships same day with standard 2-day shipping if ordered M-F before 3PM PT.

ID #: 216953

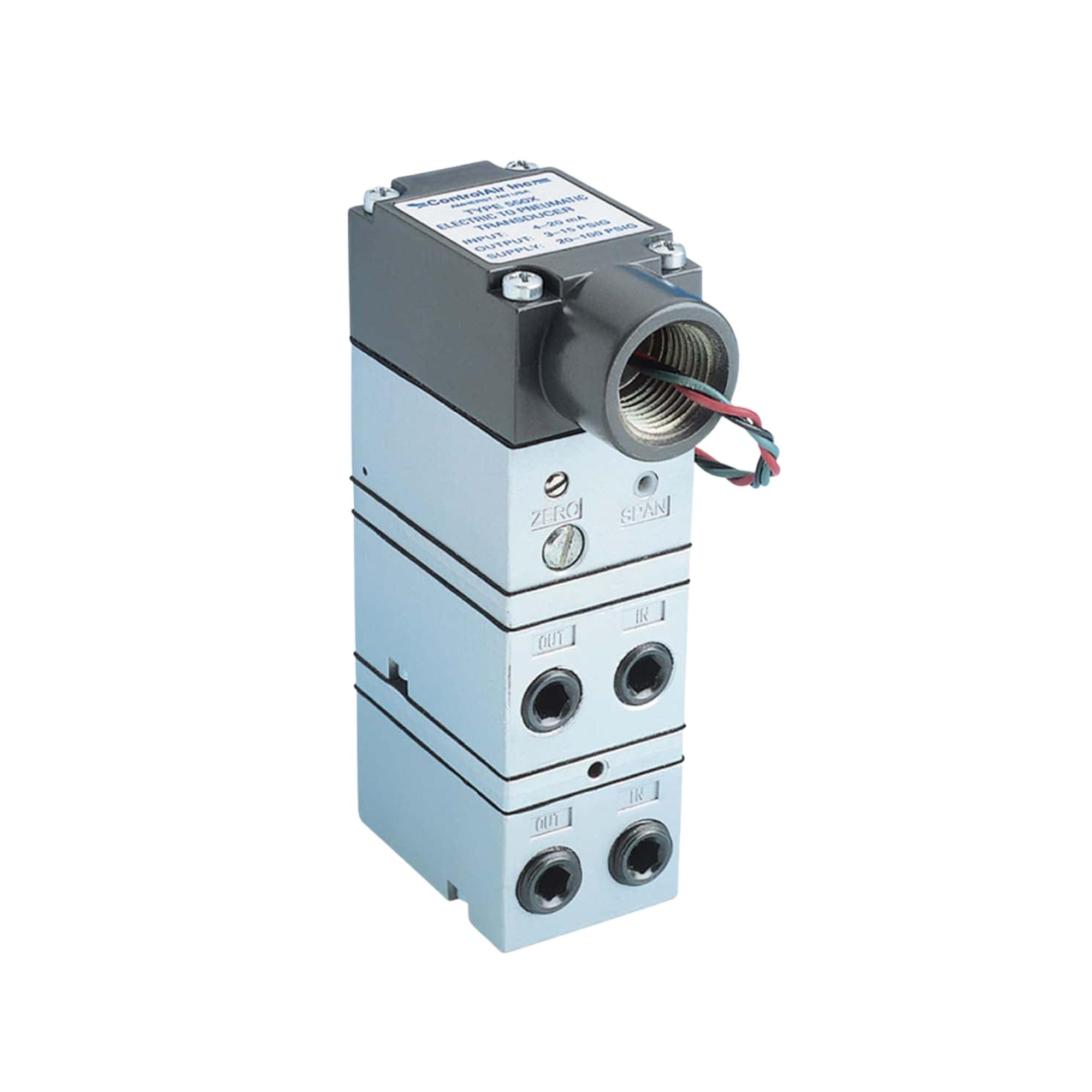

550-AKA I/P transducer, 4-20 mA to 0-120 psig, 12 scfm. Compact, NEMA 4X, DIN mount for valve control and automation.
Key Features:
• Compact electropneumatic I/P transducer for space-constrained installations
• Converts 4-20 mA input signal to proportional 0-120 psig pneumatic output
• High flow capacity of 12 scfm at 100 psig supply pressure
• External zero and span adjustments for field calibration
• Multiple mounting options including wall, panel, DIN rail, and pipe
• NEMA 4X/IP65 enclosure rating with temperature range -40°F to +158°F
Common Applications:
• Precision pressure regulation for pneumatic actuators in process control
• Valve and positioner control in industrial automation systems
• High-flow pneumatic circuits in manufacturing equipment
• Final control elements in HVAC and fluid power applications

Specifications - 550-AKA
Model	550-AKA
Type	Electropneumatic I/P Transducer
Input Signal	4-20 mA
Output Pressure	0-120 psig
Flow Capacity	12 scfm (at 100 psig supply)
Enclosure Rating	NEMA 4X / IP65
Temperature Range	-40°F to +158°F
Mounting Options	Wall, Panel, DIN Rail, Pipe
Adjustments	External Zero and Span
Applications	Pneumatic actuator control, valve positioning, process automation, HVAC, fluid power systems
