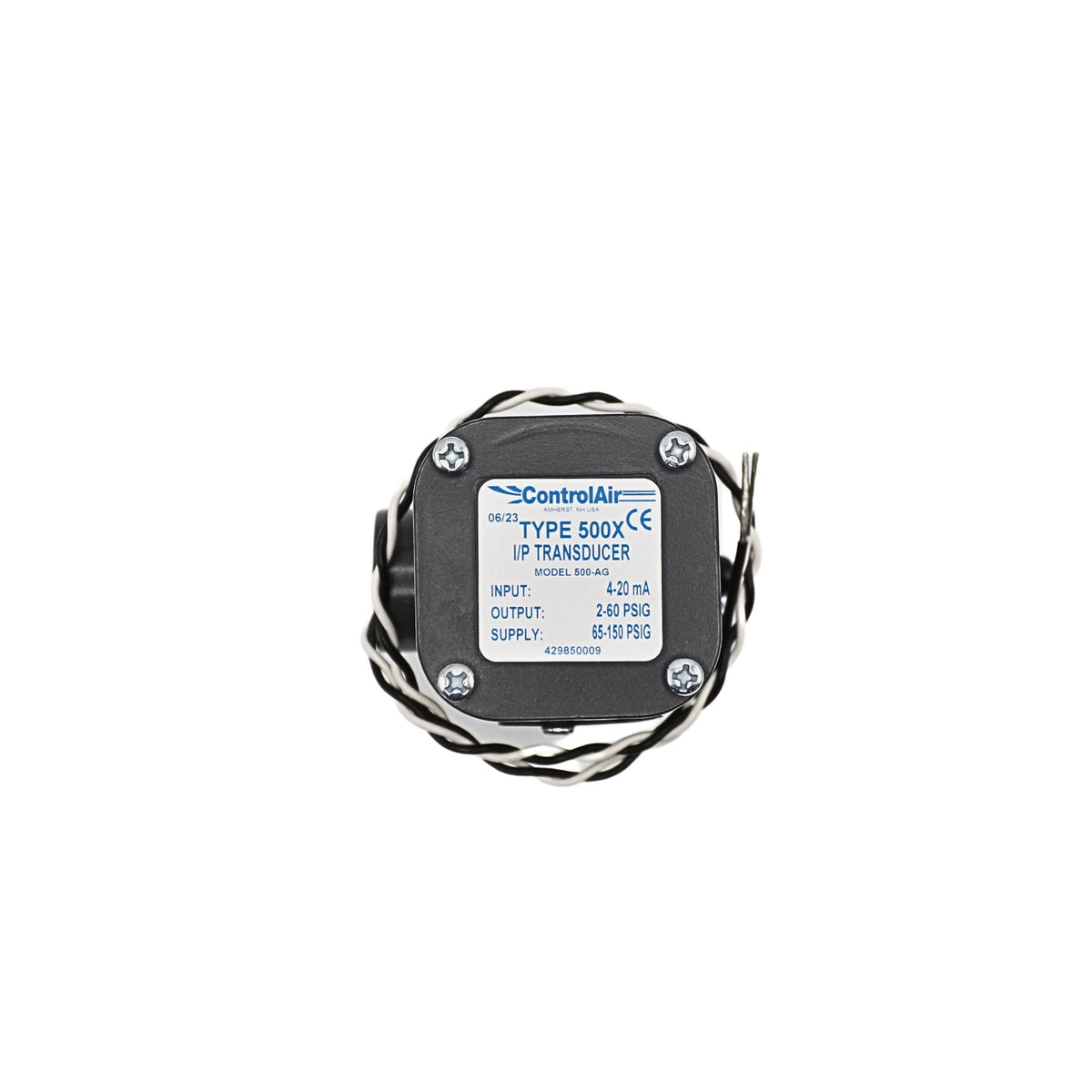

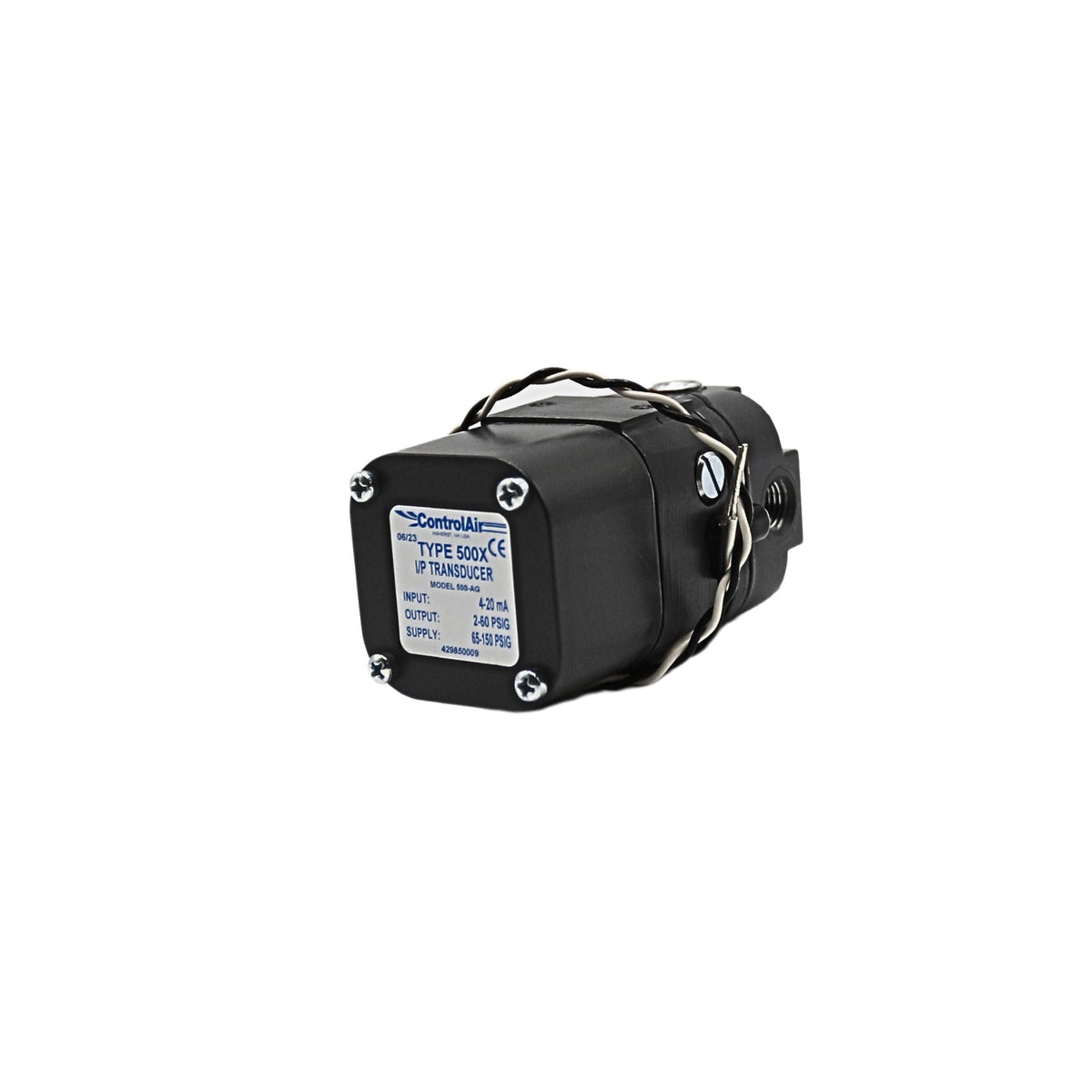

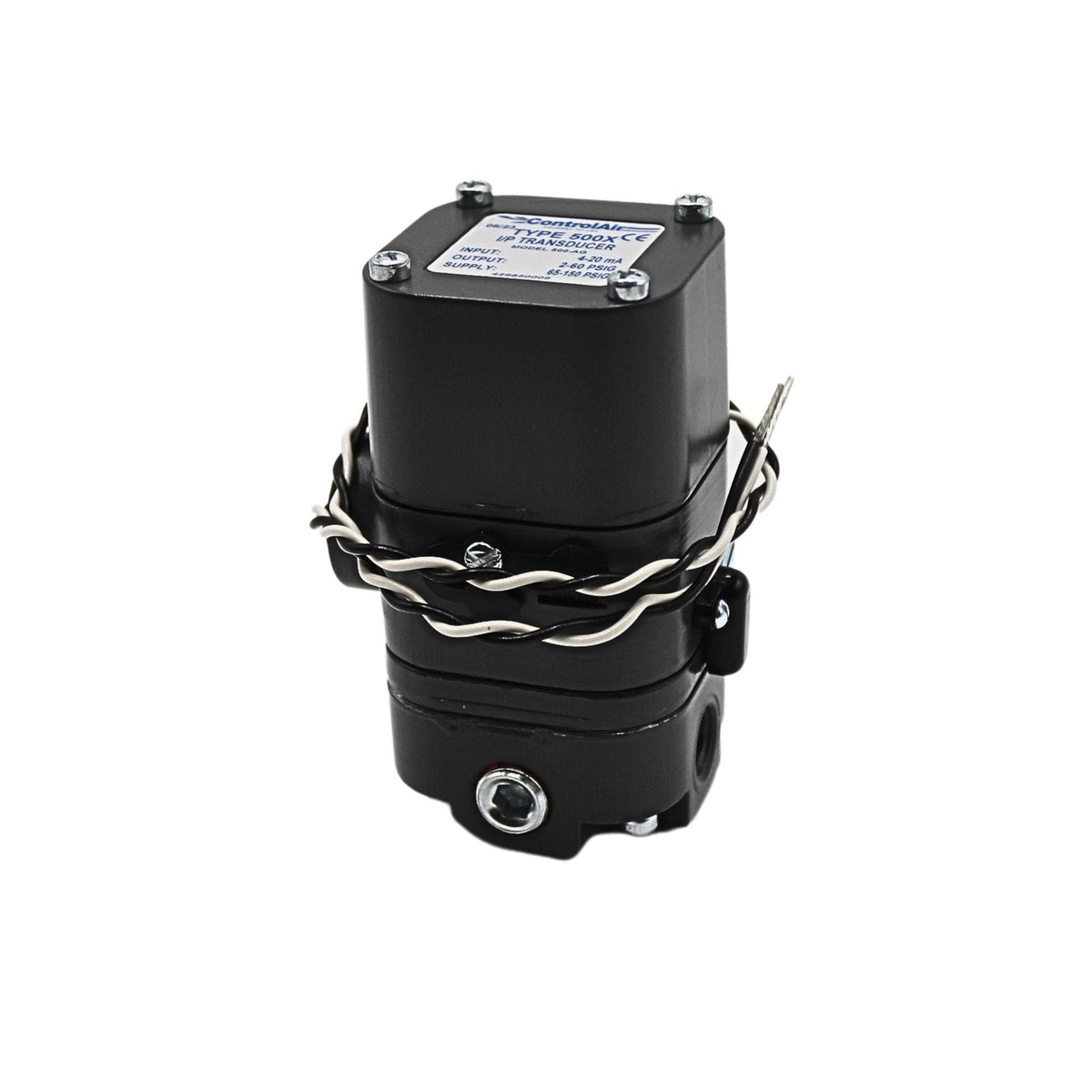

The ControlAir Type 500X converts a current or voltage input signal to a linearly proportional pneumatic output pressure. This versatile instrument is designed for control applications that require a high degree of reliability and repeatability at an economical cost.
The Type 500X is available in two different versions. The lower range model is designed for standard process control applications which typically utilize a 3 to 15 psig (0.2 to 1 bar) output. The extended range unit provides up to 145 psig (10 bar) output for higher pressure industrial pneumatic and process control system requirements.
| Specifications | |
| Input | 4-20 mA, 225 Ohms |
| Output Range | 2-60 psig (0.14-4.1 bar) |
| Max. Supply Pressure | 65-150 (4.5-10.3) |
| Supply Pressure Sensitivity - Low Output Range | <+ 0.1% of span per psig (<+ 0.15% of span per 0.1 bar) |
| Supply Pressure Sensitivity - High Output Range | <+ 0.04% of span per 1.0 psig (0.07 bar) |
| Flow Rate | 20.0 scfm (566 NL/min) @ 150 psig (10.5 bar) |
| Maximum Air Consumption | 0.07 scfm (1.98 NL/min) midrange typical |
| Repeatability | < 0.5% of span < 0.5% of span |
| Hysteresis | < 1.0% of span < 0.5% of span |
| Response Time | Dependent on pressure range – typically less than 0.25 sec. for 3-15 psig units |
| Media | Oil free, clean dry air filtered to 40 micron |
| Electrical Connection | Conduit 1/2" NPT, DIN 43650 |
| Enclosure | Nema 1 |
| Ambient Temperature Limits | -20° to +140°F ('-30° to 60°C) |
| Port Sizes | Pneumatic: 1/4 NPT (1/4 BSP option) Electric: 1/2 NPT (1/2 BSP option) |
| Weight | 2.1 lbs (0.94 kg.) |
