Mfr. Part #: CF1P-020D
Ships same day with standard 2-day shipping if ordered M-F before 3PM PT.

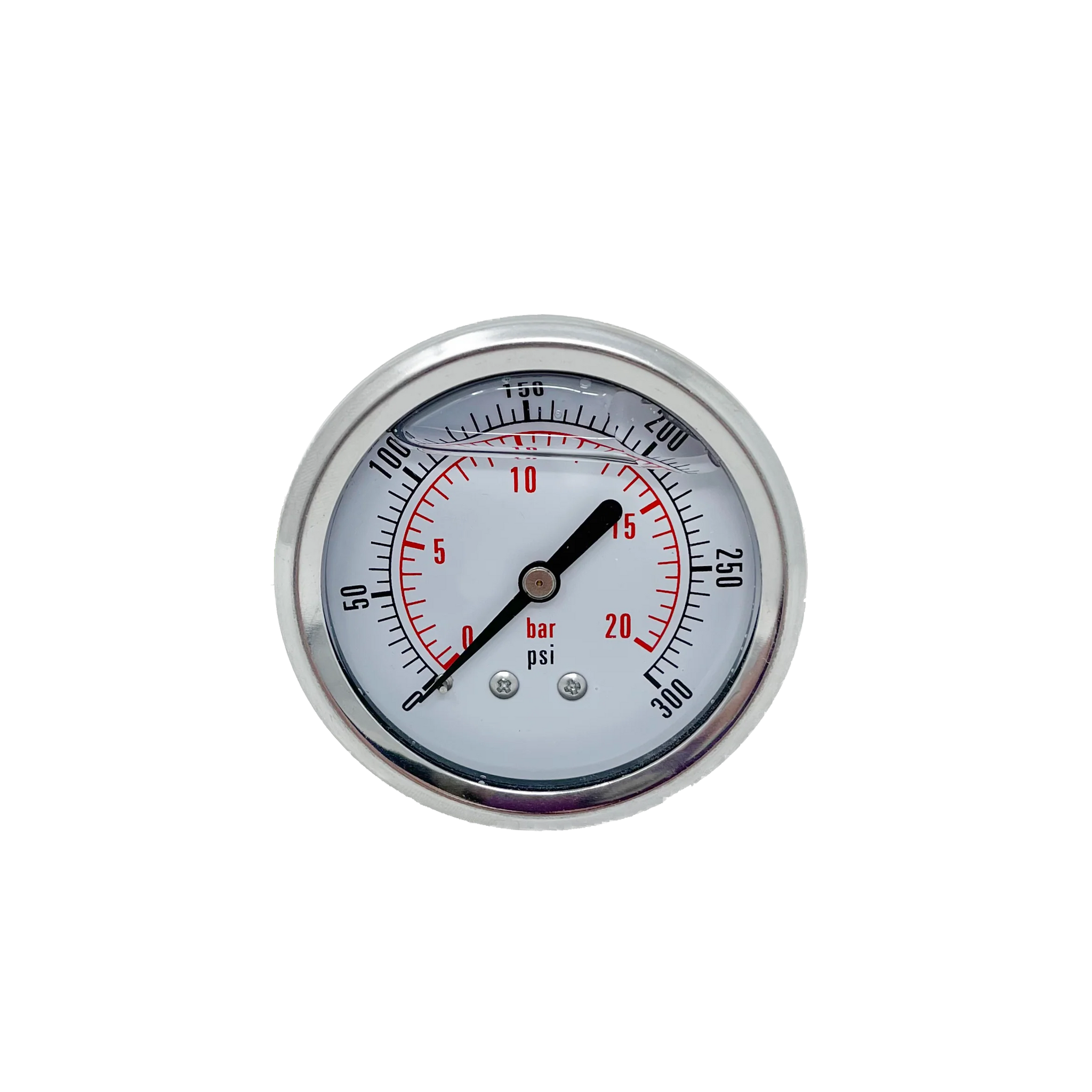

The Dynamic Fluid Components CF1P-020D is a 2.5-inch glycerin-filled pressure gauge designed for monitoring hydraulic and industrial system pressure from 0 to 300 PSI. Its liquid-filled design helps reduce pointer vibration for easier reading in systems subject to pulsation. The gauge features a stainless steel case, phosphor bronze Bourdon tube, polycarbonate lens, and center-back mounting configuration.
| Manufacturer | Dynamic Fluid Components |
| Part Number | CF1P-020D |
| Product Type | Glycerin-Filled Pressure Gauge |
| Gauge Diameter | 2.5 in |
| Pressure Range | 0–300 PSI |
| Mounting Style | Center Back Mount |
| Case Material | Stainless Steel |
| Bourdon Tube Material | Phosphor Bronze |
| Lens Material | Polycarbonate |
| Connection | 1/4-inch NPT |
| Dial Scale | PSI and bar |
| Accuracy | ±1.6% of Full Scale |
| Snubber | Built-in |
ID #: 222093
