Mfr. Part #: R432000793
Ships same day with standard 2-day shipping if ordered M-F before 3PM PT.
ID #: 172157

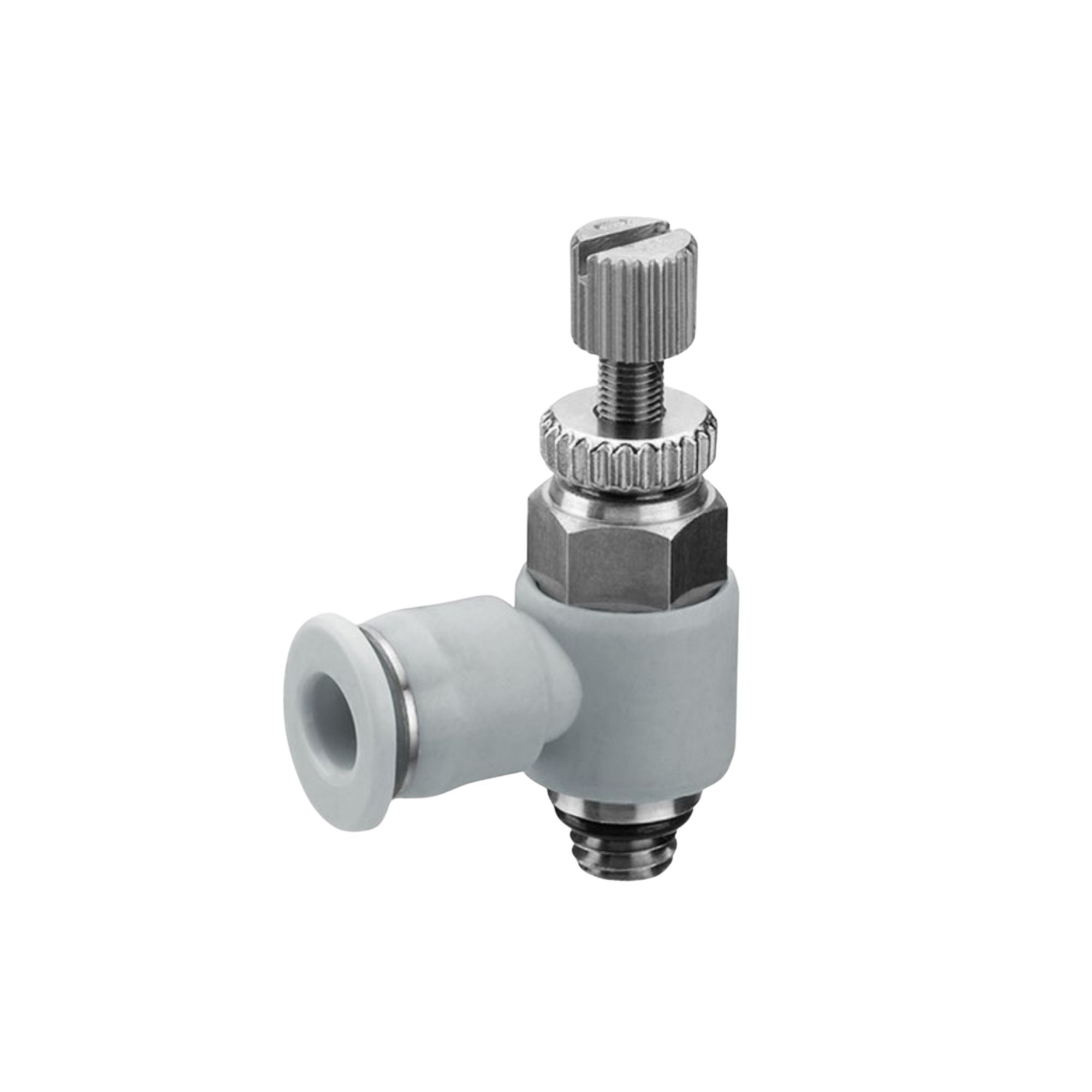

QR1-DWA-D012-N012-IN Elbow Flow Control Push In 1/2" NPT 1/2" thread
Polybutylene Terephthalate housing
Sealing material: Acrylonitrile butadiene rubber
| Port 1 | 1/2 NPT |
| Port 2 | Ø1/2 |
| direction of throttle | 1 > 2 |
| Nominal flow Qn 1 to 2 | 53844.48 l/min |
| Compressed air connection type 1 | push-in fitting |
| Compressed air connection type 2 | External thread |
| Throttle | Inlet-Side Throttling |
| Medium | Compressed air |
| Working pressure min. | 0.4827 bar |
| Working pressure max | 10 bar |
| Min. ambient temperature | 0 °C |
| Max. ambient temperature | 60 °C |
| Min. medium temperature | 0 °C |
| Max. medium temperature | 60 °C |
| Weight | 0.1043 kg |
| Housing material | Polybutyleneterephthalate |
| Seal material | Acrylonitrile butadiene rubber |
| Material flow control screw | Brass |
| Material compressed air connection | Brass |
