Alkon | DOT, PUSH-IN TEE, SWIVEL MALE BRANCH, 3/8 IN OD X 1/4 IN NPT | AQ72-DOTS-6X4

Name: Alkon | DOT, PUSH-IN TEE, SWIVEL MALE BRANCH, 3/8 IN OD X 1/4 IN NPT | AQ72-DOTS-6X4
Brand: ALKON CORPORATION
SKU: AQ72-DOTS-6X4
Price: 14.45 USD
Availability: InStock

Mfr. Part #: AQ72-DOTS-6X4

Ships same day with standard 2-day shipping if ordered M-F before 3PM PT.

Pickup Available at Livermore

Quantity	Discount	Part Price
>10 pieces	10.0 %	$13.01

ID #: 213611

Description
Features
Specifications
Resources

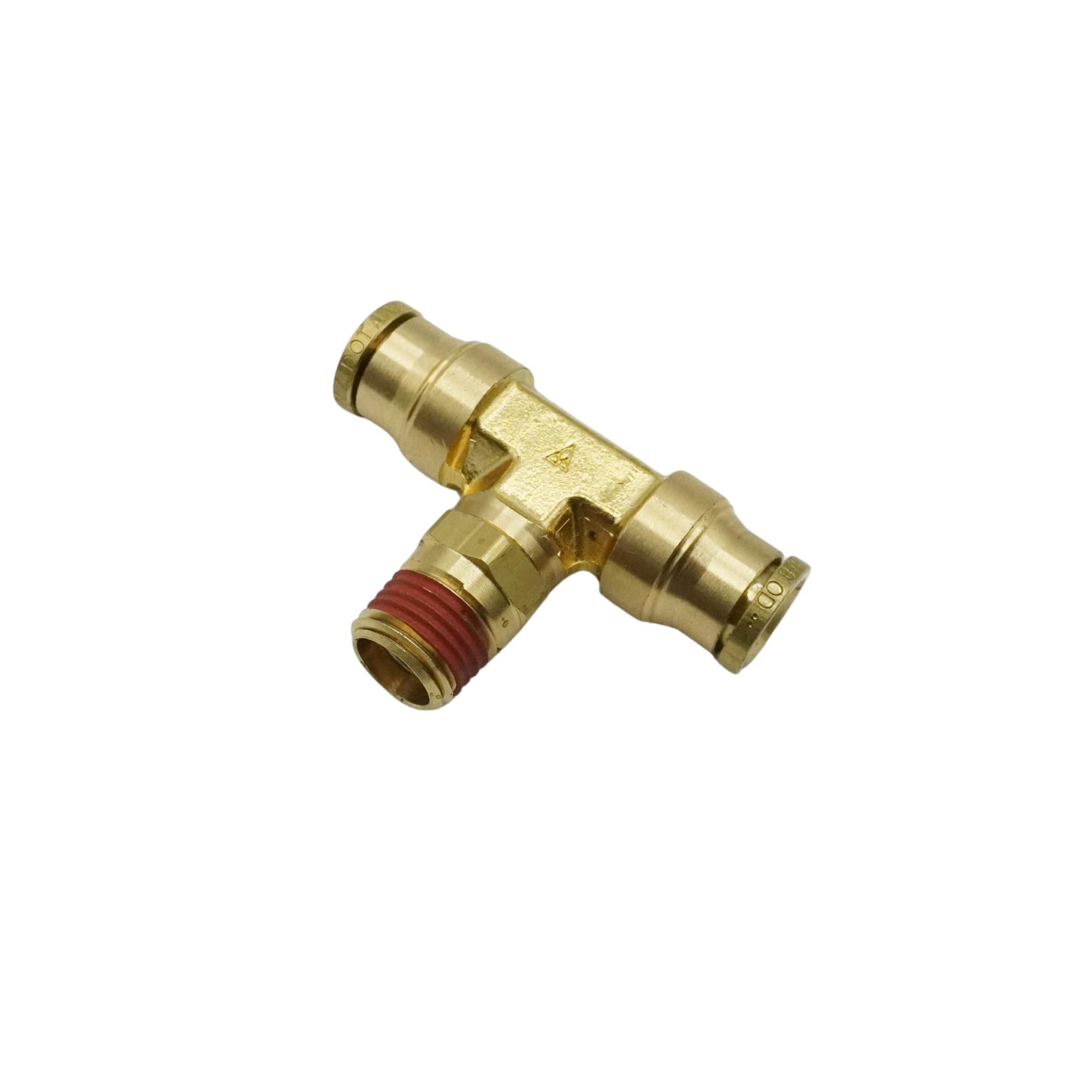

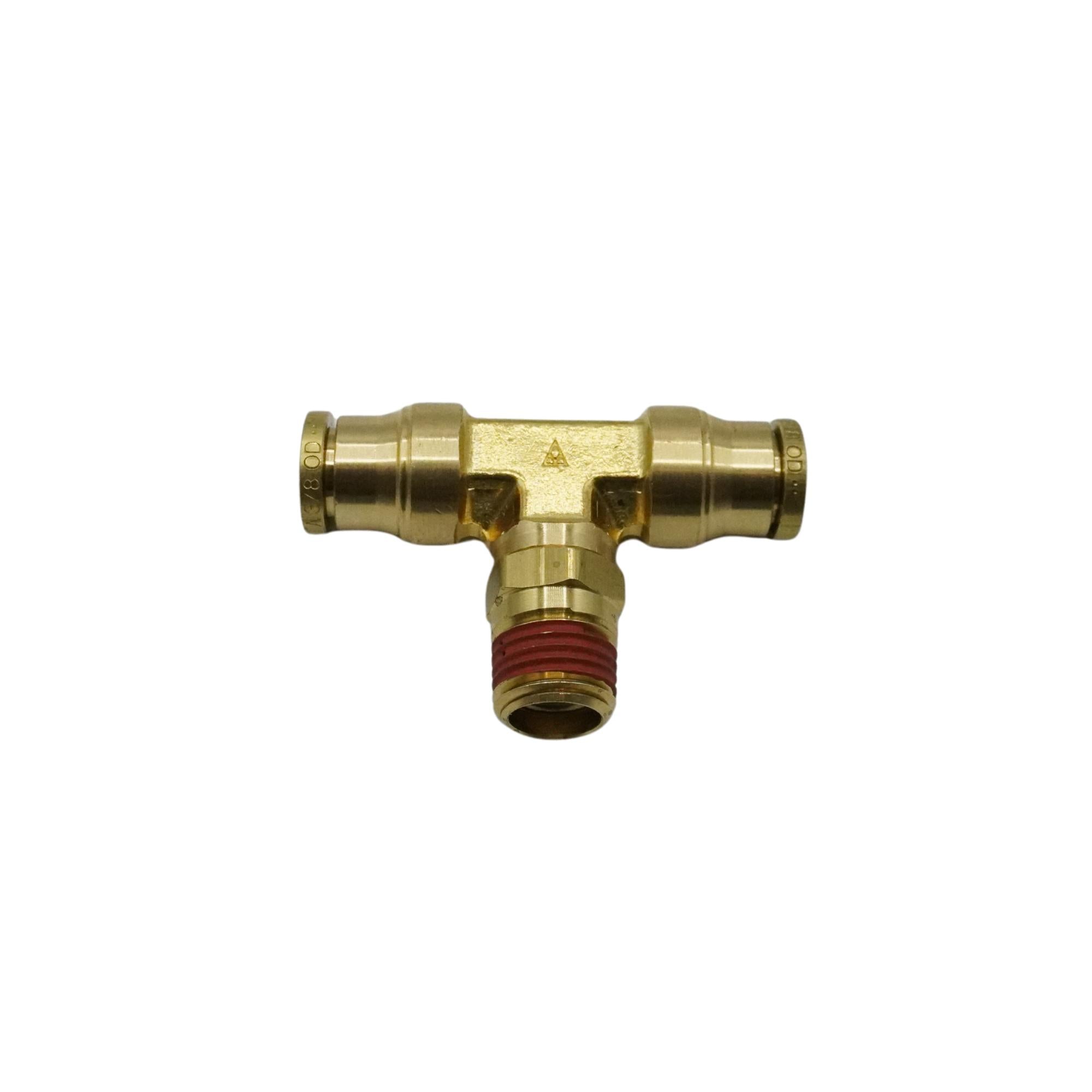

Alkon AQ72-DOTS-6X4 swivel male branch tee, 3/8" OD push-to-connect with 1/4" NPT thread, DOT-approved for pneumatic and air brake systems.
Key Features:
• Swivel male branch tee fitting from Alkon AQ-DOT series
• Connects 3/8" OD push-to-connect tube at two ends, with 1/4" NPT male thread
• Made of brass with pre-applied thread sealant for secure, leak-resistant connection
• Compact size (~1.06" length) with swivel functionality for easy alignment
• Temperature range: -40 °F to 212 °F

Common Applications:
• Branching pneumatic tubing in air brake and vehicle systems
• Flexible air distribution in confined layouts or modular pneumatic assemblies
• DOT-compliant pneumatic connections in OEM and heavy-duty vehicle systems

Specification	Details
Model	AQ72-DOTS-6X4
Type	Swivel Male Branch Tee (Push-to-Connect)
Tube Size	3/8" OD (push-in connections)
Thread	1/4" NPT Male
Material	Brass
Sealant	Pre-applied thread sealant for leak resistance
Swivel Function	Allows flexible alignment and installation
Overall Length (approx.)	1.06 in
Temperature Range	-40°F to 212°F
Compliance	DOT-approved fitting
Typical Applications	Air brake systems, pneumatic branching in vehicles, OEM pneumatic assemblies, modular air distribution
