Mfr. Part #: AQ72-DOTS-4X4
Ships same day with standard 2-day shipping if ordered M-F before 3PM PT.
| Quantity | Discount | Part Price |
|---|---|---|
| >10 pieces | 10.0 % | $11.24 |
ID #: 213609

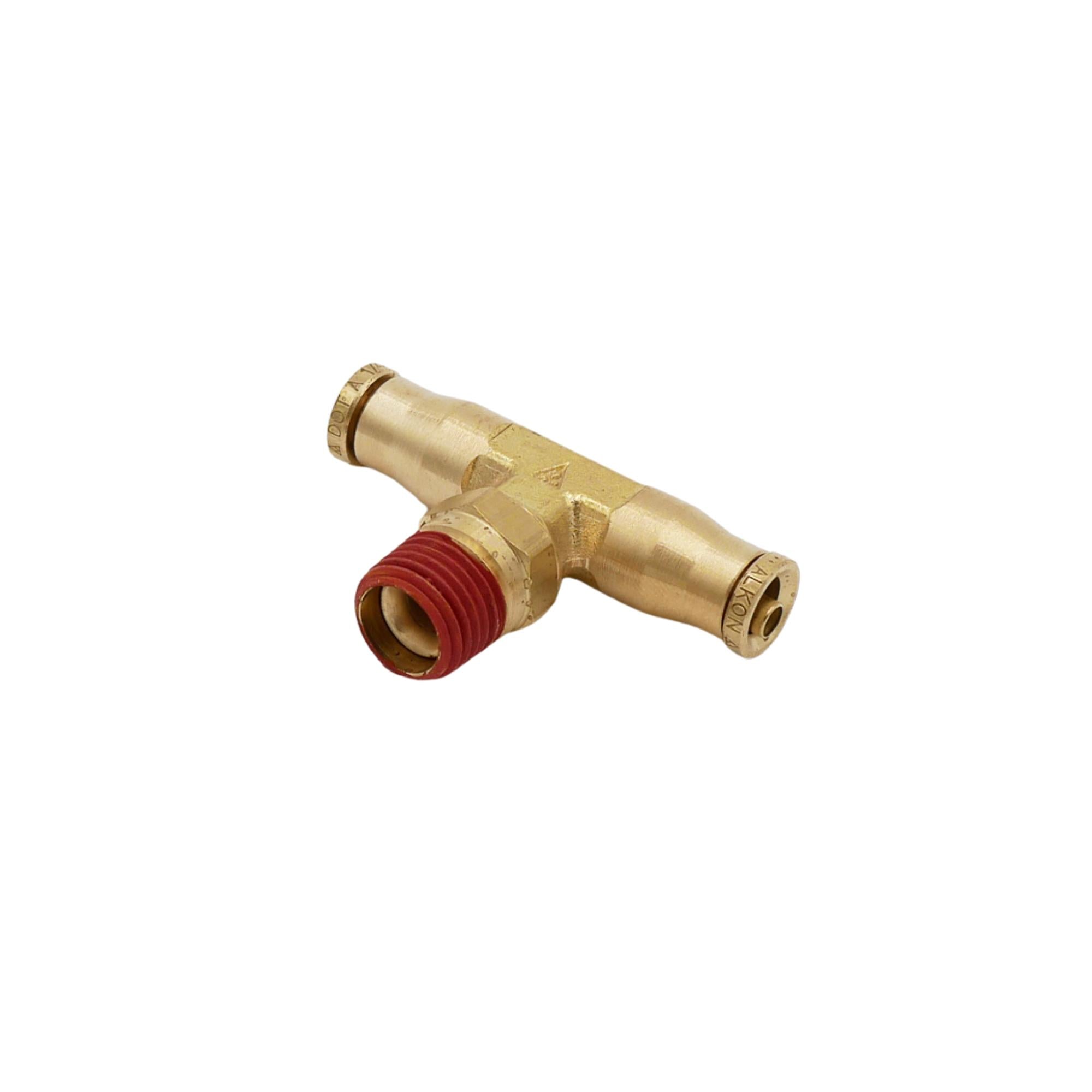

DOT AQ72-DOTS-4X4 brass swivel male branch tee, 1/4" push-to-connect tube, 1/4" NPT thread, ideal for air brake and pneumatic systems.
| Specification | Details |
|---|---|
| Model | AQ72-DOTS-4X4 |
| Series / Brand | Alkon AQ-DOT |
| Type | Swivel Male Branch Tee (Push-to-Connect) |
| Tube Size | 1/4" OD push-in (inlets) |
| Thread | 1/4" NPT Male (outlet) |
| Material | Brass |
| Sealant | Pre-applied thread sealant |
| Swivel Function | Yes — allows alignment during installation |
| Overall Length (approx.) | ~1.3 in |
| Temperature Range | -40°F to 212°F (-40°C to 100°C) |
| Compliance | DOT FMVSS 571.106 (DOT-compatible) |
| Typical Applications | Branching pneumatic tubing in vehicle air brake systems, DOT-compliant OEM assemblies, compact pneumatic routing |
