Mfr. Part #: AQ69-DOTS-4X2
Ships same day with standard 2-day shipping if ordered M-F before 3PM PT.

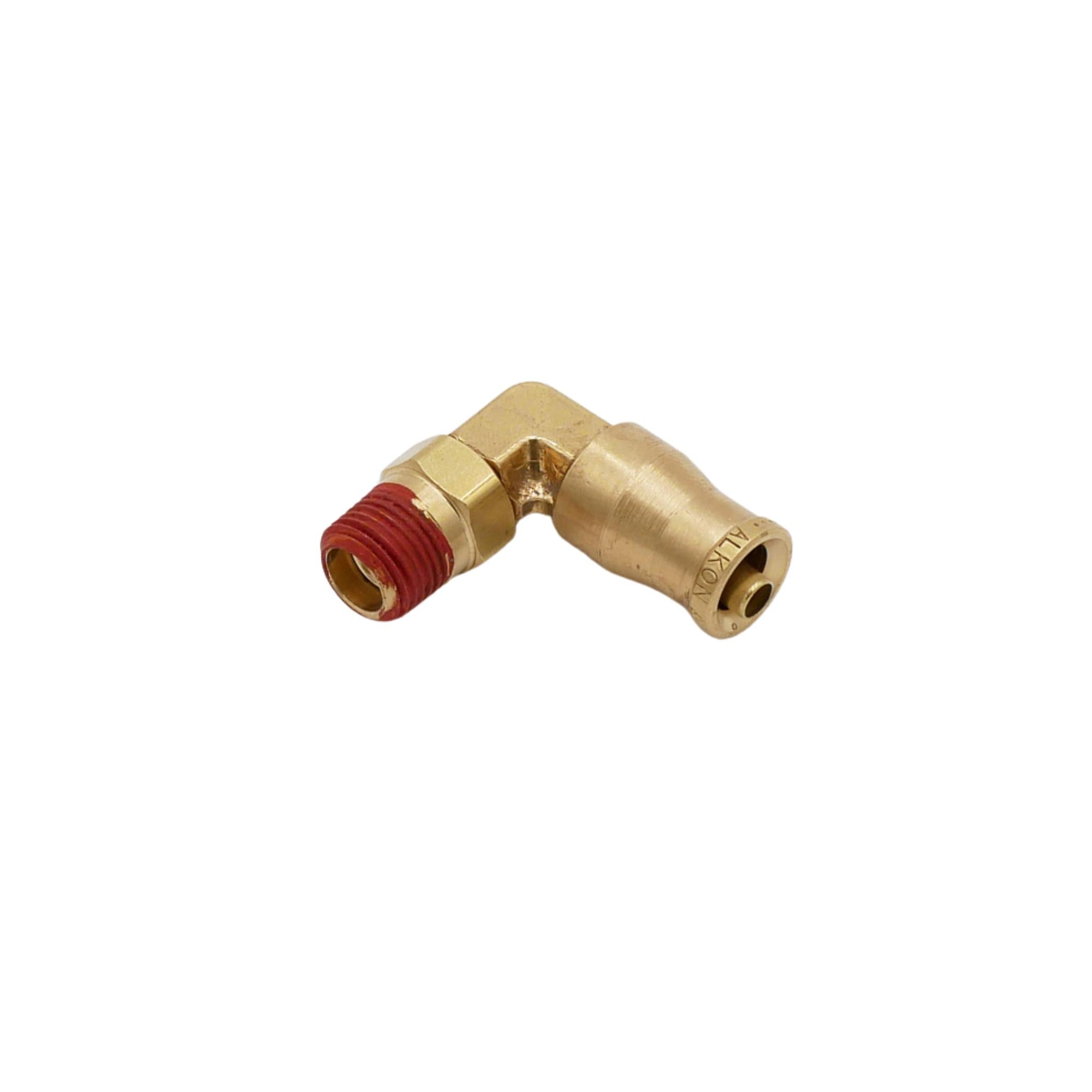

AQ69-DOTS-4X2 brass swivel elbow, 1/4" x 1/8" NPT, for air brakes & suspension. 200 psi, DOT compliant, easy push-to-connect install.
| Specification | Details |
|---|---|
| Material | Brass |
| Connection Type | Push-to-connect with swivel elbow |
| Seal Type | Positive seal with O-ring and extended tube support |
| Thread Sealant | Pre-applied Loctite 516 on male NPT threads |
| Working Pressure | 200 psi |
| Standards Compliance | DOT FMVSS 571.106 |
| Nominal Size | 1/4" tube OD x 1/8" male NPT |
| Temperature Range | -40°F to 212°F |
| Applications | Air brake systems, air suspension, pneumatic controls, transit/rail connections |
