Mfr. Part #: AQ69-DOTS-4X4
Ships same day with standard 2-day shipping if ordered M-F before 3PM PT.

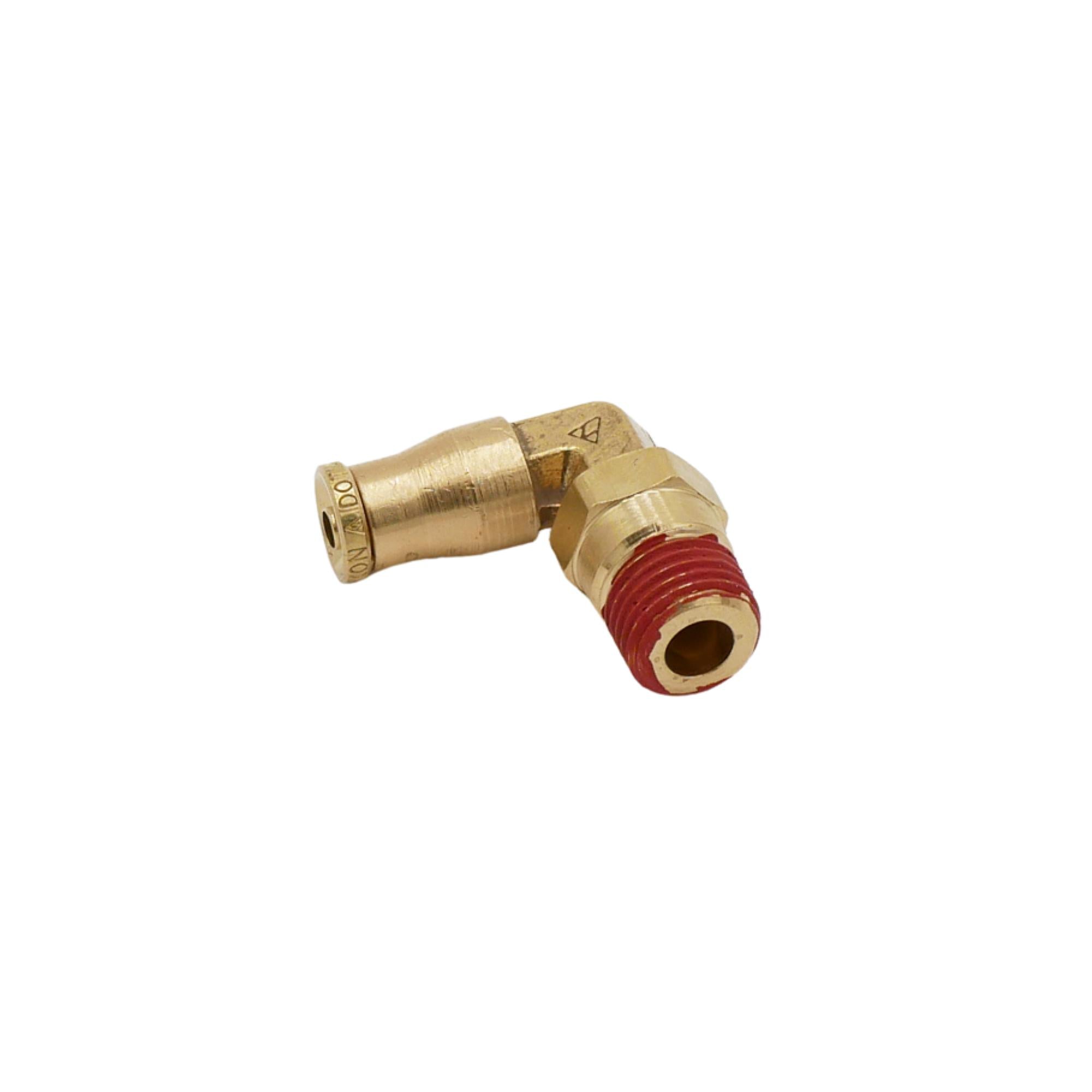

AQ69-DOTS-4X4 90° swivel male elbow, 1/4" tube to 1/4" NPT. DOT-approved brass fitting for air brake and pneumatic systems.
| Specifications - AQ69-DOTS-4X4 | |
|---|---|
| Model | AQ69-DOTS-4X4 |
| Fitting Type | 90° Swivel Male Elbow, Push-to-Connect |
| Tubing Size | 1/4" OD Tube (inlet) |
| Thread Size | 1/4" NPT Male (outlet) |
| Material | Brass with Pre-Applied Thread Sealant |
| Operating Temperature | -40 °F to 212 °F |
| Compliance | DOT FMVSS 571.106 Approved |
| Applications | Vehicle air brake systems, air suspension, heavy-duty trucks, trailers, and pneumatic control lines |
