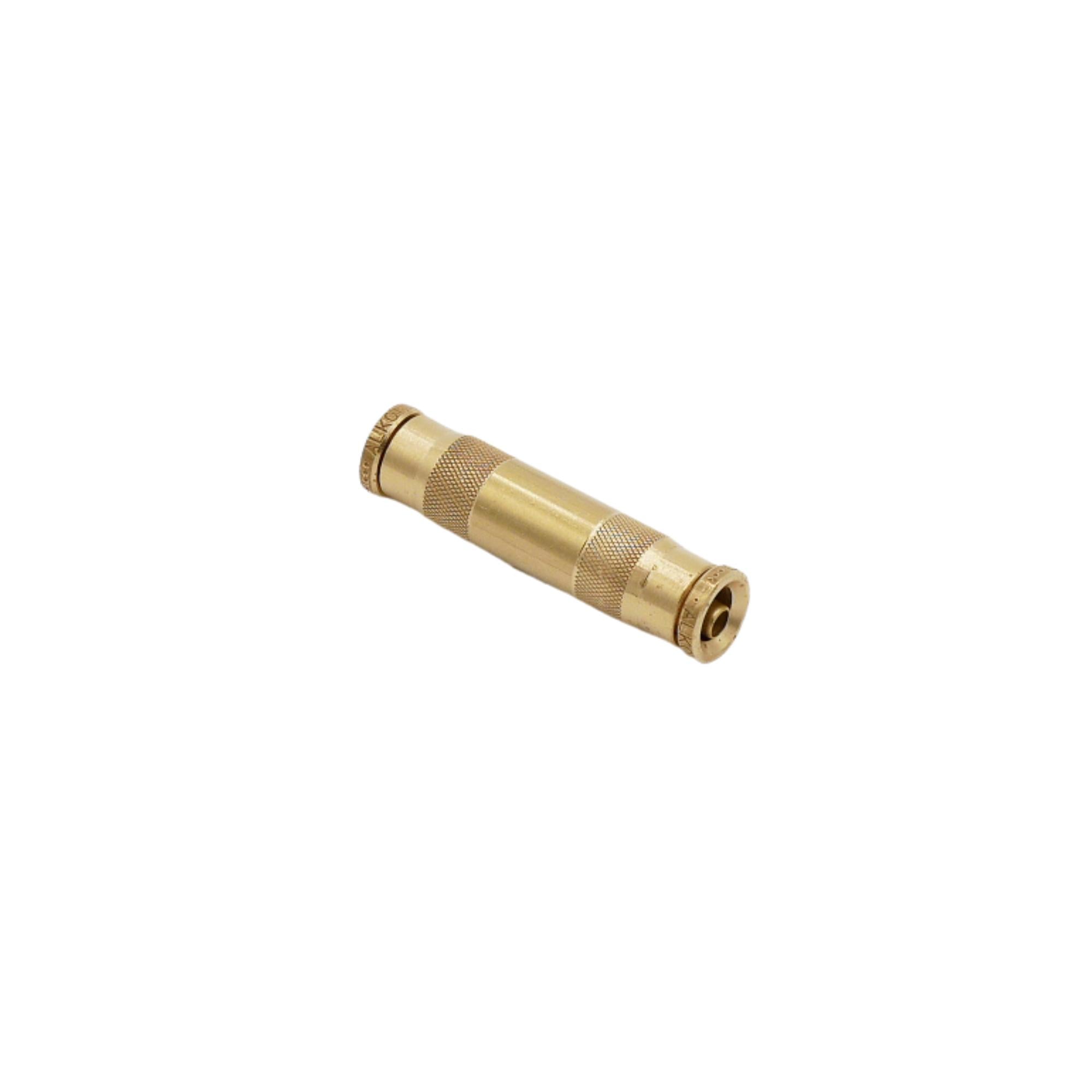

Alkon | DOT, PUSH-IN CONNECTOR UNION, 1/4 IN TUBE | AQ62-DOT-4

Name: Alkon | DOT, PUSH-IN CONNECTOR UNION, 1/4 IN TUBE | AQ62-DOT-4
Brand: ALKON CORPORATION
SKU: AQ62-DOT-4
Price: 7.42 USD
Availability: InStock

Mfr. Part #: AQ62-DOT-4

Ships same day with standard 2-day shipping if ordered M-F before 3PM PT.

Pickup Available at Livermore

Quantity	Discount	Part Price
>10 pieces	10.0 %	$6.68

ID #: 28025

Description
Features
Specifications
Resources

AQ62-DOT-4 brass push-to-connect fitting, 1/4" tube OD, for air brakes & suspension. 200 psi, DOT/SAE compliant, full flow, easy install.
Key Features:
- Brass construction for corrosion resistance and durability
- Push-to-connect design for tool-free, quick installation and release
- Full flow design providing up to 60% more flow area than conventional fittings
- Positive seal with ethylene propylene gasket for reliable performance
- DOT approved, compliant with FMVSS 571.106 and SAE J1131/J2494 standards
- 200 psi maximum working pressure
- Nominal size: 1/4" tube OD x 1/4" tube OD; temperature range: -40°F to 200°F

Common Applications:
- Air brake systems in trucks and trailers
- Air suspension systems in heavy-duty vehicles
- Pneumatic controls in RVs and buses
- Transit and rail pneumatic connections
- Air-operated seats, gauges, horns, and heater controls

Specification	Details
Material	Brass
Connection Type	Push-to-connect
Seal Type	Positive seal with ethylene propylene gasket
Flow Design	Full flow (up to 60% more flow area than conventional fittings)
Working Pressure	200 psi
Standards Compliance	DOT FMVSS 571.106, SAE J1131, SAE J2494
Nominal Size	1/4" tube OD x 1/4" tube OD
Temperature Range	-40°F to 200°F
Applications	Air brake systems, air suspension, pneumatic controls, transit/rail connections, air-operated seats, gauges, horns, heater controls
