Alkon | DOT, PUSH-IN CONNECTOR, MALE 3/8 IN TUBE X 1/4 IN NPT | AQ68-DOT-6X4

Name: Alkon | DOT, PUSH-IN CONNECTOR, MALE 3/8 IN TUBE X 1/4 IN NPT | AQ68-DOT-6X4
Brand: ALKON CORPORATION
SKU: AQ68-DOT-6X4
Price: 6.74 USD
Availability: InStock

Mfr. Part #: AQ68-DOT-6X4

Ships same day with standard 2-day shipping if ordered M-F before 3PM PT.

Pickup Available at Livermore

Description
Features
Specifications
Resources

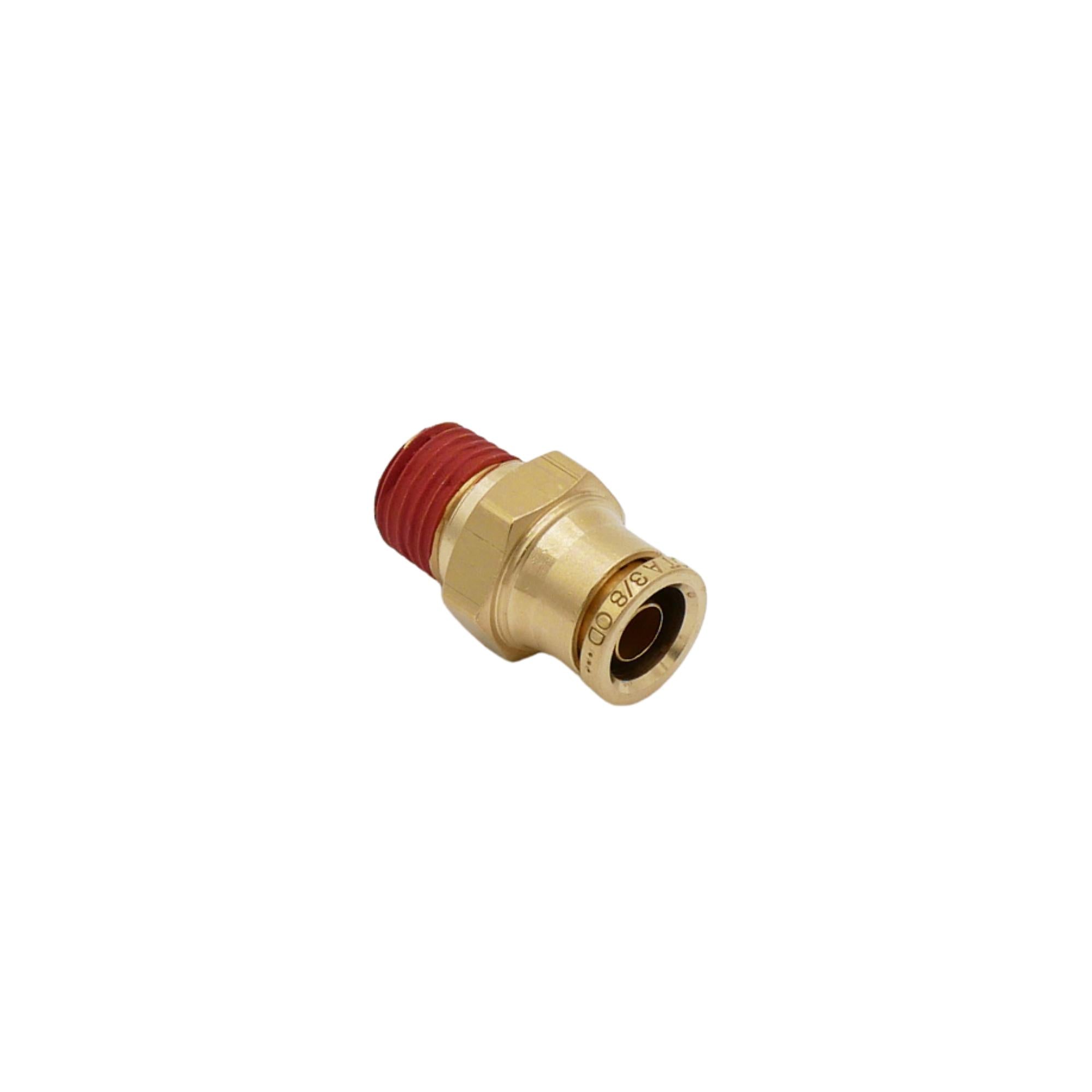

AQ68-DOT-6X4 brass push-to-connect fitting, 3/8" x 1/4" NPT, for air brakes & suspension. 200 psi, DOT/SAE compliant, easy install.
Key Features:
- Brass construction for corrosion resistance and durability
- Push-to-connect design for tool-free, quick installation and release
- Positive seal with O-ring and extended tube support for secure hold
- Pre-applied Loctite 516 thread sealant on male NPT threads
- 200 psi maximum working pressure
- DOT FMVSS 571.106 and SAE J2494-3 compliant for air brake applications
- Nominal size: 3/8" tube OD x 1/4" male NPT; overall length: 1.15"

Common Applications:
- Air brake systems in trucks and trailers
- Air suspension systems in heavy-duty vehicles
- Pneumatic controls in RVs and buses
- Transit and rail pneumatic connections

Specification	Details
Material	CA360 brass with nitrile rubber seal
Thread Sealant	Pre-applied Loctite 516 on male pipe threads
Connection Type	Push-to-connect, 3/8" tube OD, 1/4" male NPTF thread
Standards Compliance	DOT FMVSS 571.106, SAE J1131, SAE J2494-1, SAE J2494-3
Temperature Range	-40°F to 212°F
Pressure Rating	Suitable for vacuum service up to maximum tubing working pressure
Common Applications	Air brake systems, pneumatic connections, vacuum lines, compatible with SAE J844 nylon tubing
