Alkon | DOT, PUSH-IN CONNECTOR, MALE 1/4 IN TUBE X 1/8 IN NPT | AQ68-DOT-4X2

Name: Alkon | DOT, PUSH-IN CONNECTOR, MALE 1/4 IN TUBE X 1/8 IN NPT | AQ68-DOT-4X2
Brand: ALKON CORPORATION
SKU: AQ68-DOT-4X2
Price: 4.43 USD
Availability: InStock

Mfr. Part #: AQ68-DOT-4X2

Ships same day with standard 2-day shipping if ordered M-F before 3PM PT.

Pickup Available at Livermore

Description
Features
Specifications
Resources

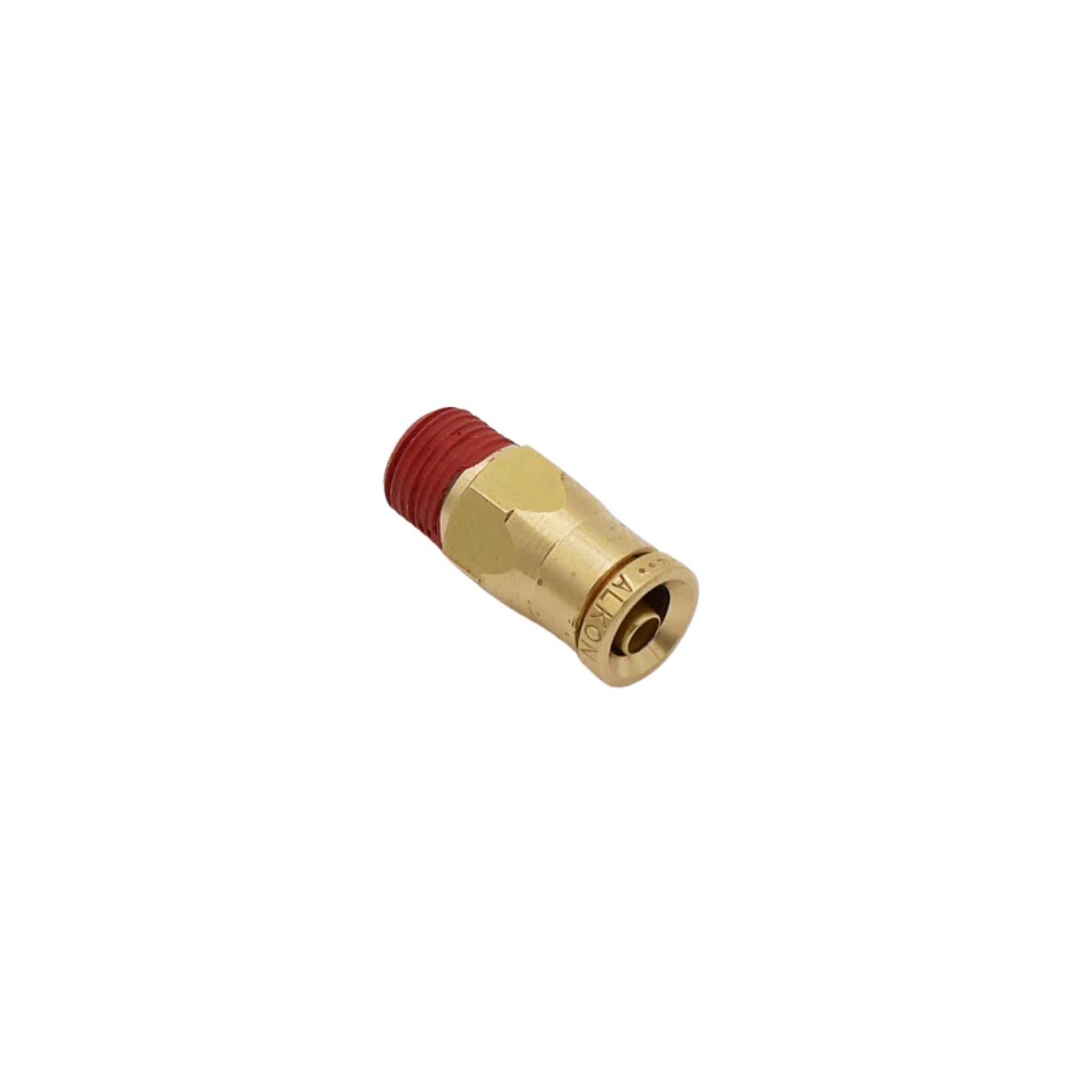

AQ68-DOT-4X2 brass push-to-connect fitting, 1/4" x 1/8" NPT, for air brakes & suspension. 200 psi, DOT/SAE compliant, easy install.
Key Features:
- Brass construction for corrosion resistance and durability
- Push-to-connect design for tool-free, quick installation and release
- Positive seal with O-ring and extended tube support for secure hold
- Pre-applied Loctite 516 thread sealant on male NPT threads
- 200 psi maximum working pressure
- DOT FMVSS 571.106 and SAE J2494-3 compliant for air brake applications
- Nominal size: 1/4" tube OD x 1/8" male NPT; overall length: 0.98"

Common Applications:
- Air brake systems in trucks and trailers
- Air suspension systems in heavy-duty vehicles
- Pneumatic controls in RVs and buses
- Transit and rail pneumatic connections

Specification	Details
Material	Brass
Connection Type	Push-to-connect
Seal Type	Positive seal with O-ring and extended tube support
Thread Sealant	Pre-applied Loctite 516 on male NPT threads
Working Pressure	200 psi
Standards Compliance	DOT FMVSS 571.106, SAE J2494-3
Nominal Size	1/4" tube OD x 1/8" male NPT
Overall Length	0.98"
Applications	Air brake systems, air suspension, pneumatic controls, transit/rail connections
