Alkon | DOT, PUSH-IN CONNECTOR, MALE 1/2 IN TUBE X 1/4 IN NPT | AQ68-DOT-8X4

Name: Alkon | DOT, PUSH-IN CONNECTOR, MALE 1/2 IN TUBE X 1/4 IN NPT | AQ68-DOT-8X4
Brand: ALKON CORPORATION
SKU: AQ68-DOT-8X4
Price: 10.09 USD
Availability: InStock

Mfr. Part #: AQ68-DOT-8X4

Ships same day with standard 2-day shipping if ordered M-F before 3PM PT.

Pickup Available at Livermore

Quantity	Discount	Part Price
>10 pieces	10.0 %	$9.08

ID #: 69398

Description
Features
Specifications
Resources

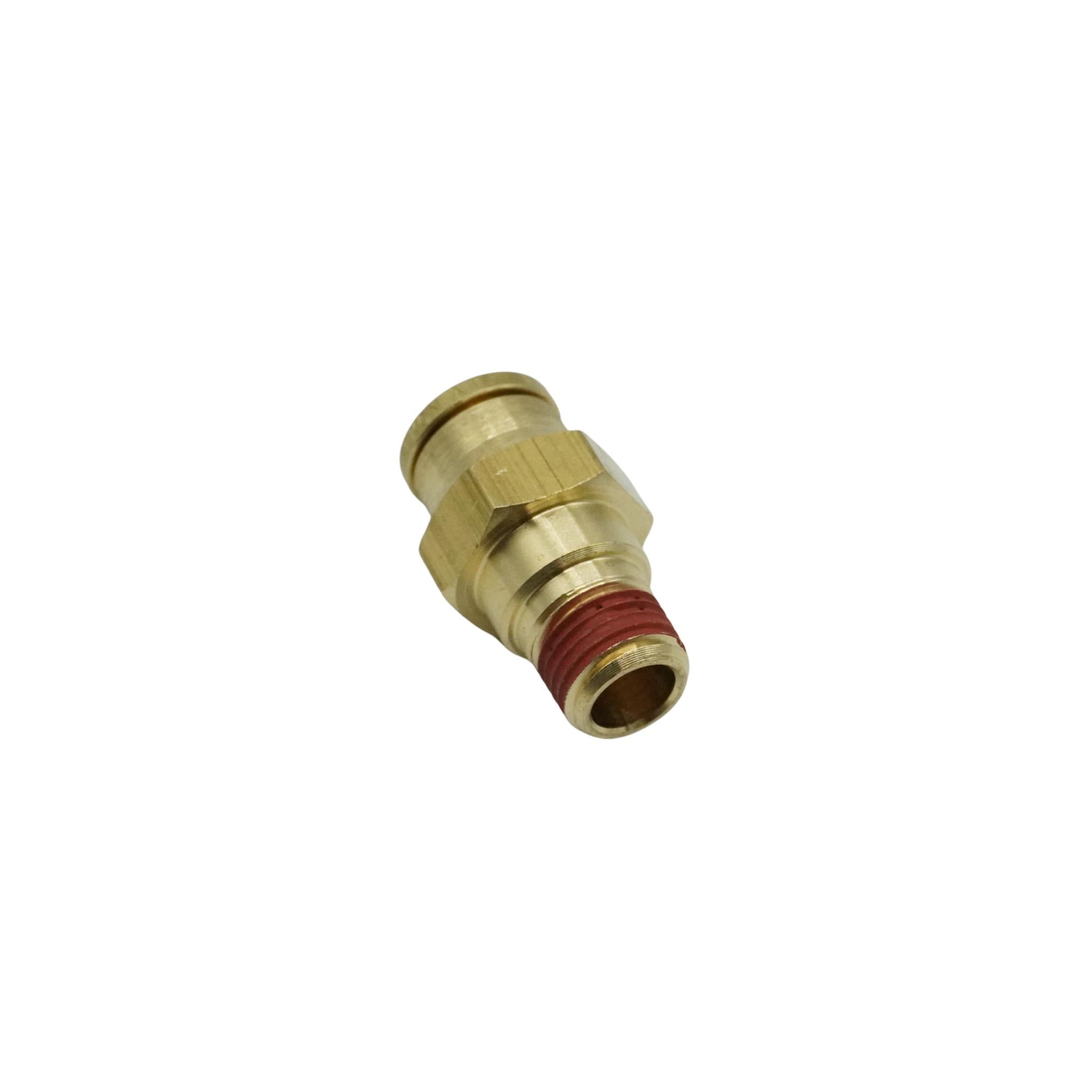

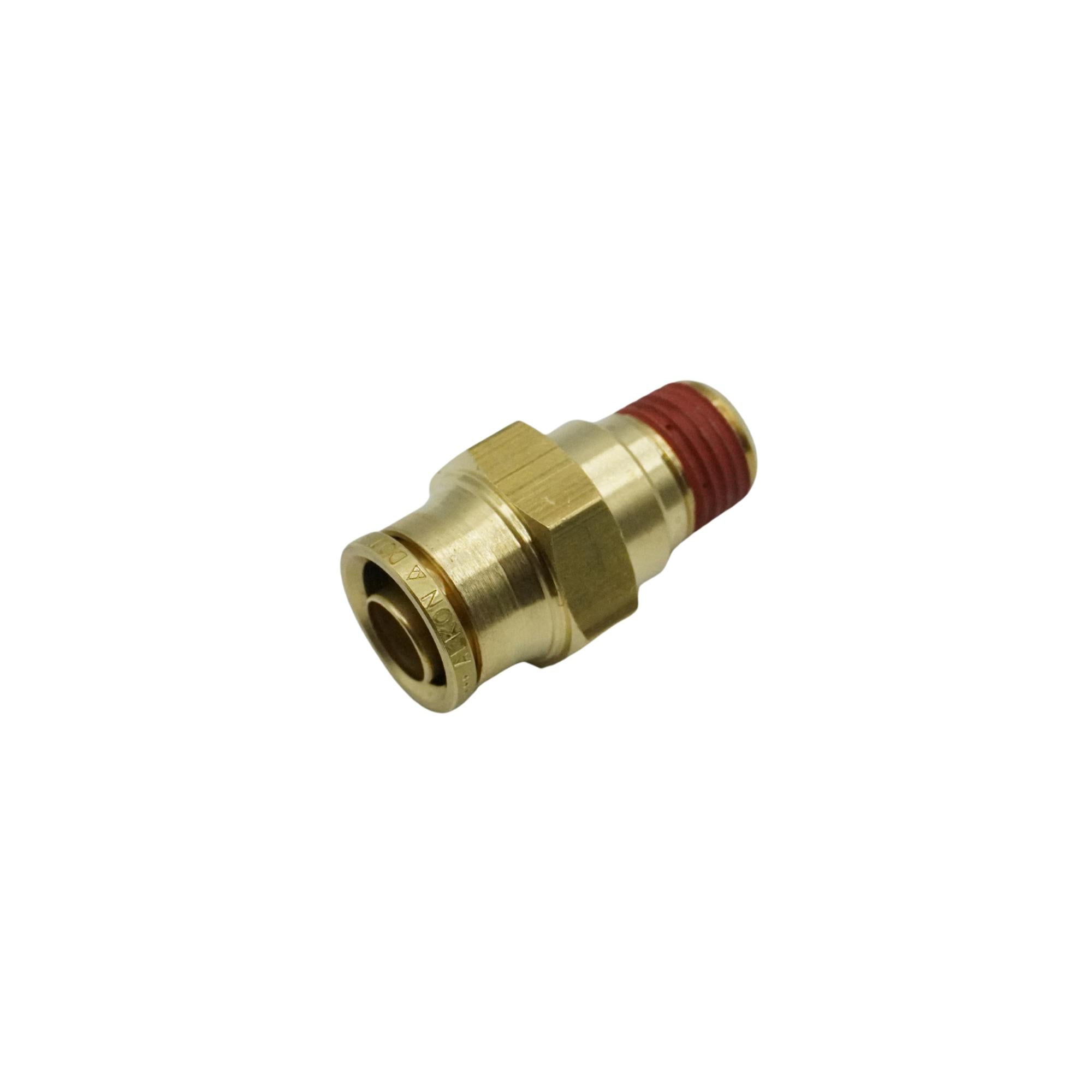

AQ68-DOT-8X4 brass push-to-connect fitting, 1/2" x 1/4" NPT, for air brakes & suspension. 200 psi, DOT/SAE compliant, easy install.
Key Features:
- Brass construction for corrosion resistance and durability
- Push-to-connect design for tool-free, quick installation and release
- Positive seal with O-ring and extended tube support for secure hold
- Pre-applied Loctite 516 thread sealant on male NPT threads
- 200 psi maximum working pressure
- DOT FMVSS 571.106 and SAE J2494-3 compliant for air brake applications
- Nominal size: 1/2" tube OD x 1/4" male NPT; overall length: 1.18"

Common Applications:
- Air brake systems in trucks and trailers
- Air suspension systems in heavy-duty vehicles
- Pneumatic controls in RVs and buses
- Transit and rail pneumatic connections

Specification	Details
Material	Brass
Connection Type	Push-to-connect
Seal Type	Positive seal with O-ring and extended tube support
Thread Sealant	Pre-applied Loctite 516 on male NPT threads
Working Pressure	200 psi
Standards Compliance	DOT FMVSS 571.106, SAE J2494-3
Nominal Size	1/2" tube OD x 1/4" male NPT
Overall Length	1.18"
Applications	Air brake systems, air suspension, pneumatic controls, transit/rail connections
