Alkon | B-DOT, CONNECTOR UNION, 5/32" TUBE, PUSH-IN | AQ62-DOT-5/32

Name: Alkon | B-DOT, CONNECTOR UNION, 5/32" TUBE, PUSH-IN | AQ62-DOT-5/32
Brand: ALKON CORPORATION
SKU: AQ62-DOT-5/32
Price: 7.50 USD
Availability: InStock

Mfr. Part #: AQ62-DOT-5/32

Ships same day with standard 2-day shipping if ordered M-F before 3PM PT.

Pickup Available at Livermore

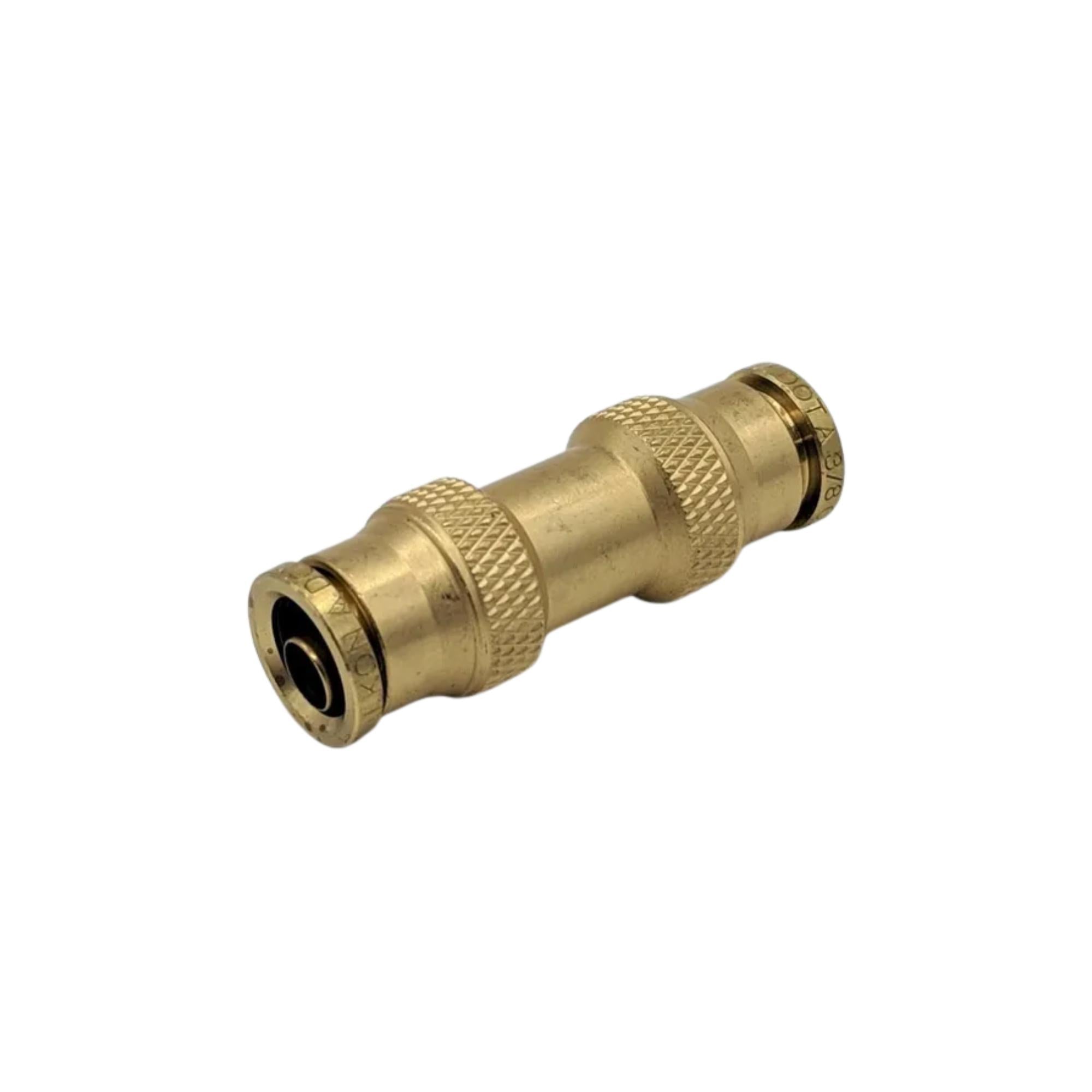

Alkon AQ62-DOT-5/32 union connector, 5/32" push-to-connect both ends. DOT-approved brass fitting for air brake and pneumatic systems.

Key Features:
• Straight union connector fitting from Alkon AQ-DOT series
• Push-to-connect 5/32" OD tube on both ends for easy, tool-free installation
• Brass construction (CA 377 shapes, CA 360 straights) with pre-applied thread sealant for secure, leak-resistant connections
• Compact design (1.38" length, 0.38" hex) with positive tube stop, gripping teeth, and lubricated O-ring for reliable hold under pressure
• 200 PSI working pressure; temperature range: -40 °F to 180 °F; meets DOT FMVSS 571.106 and SAE J1131, J2494-1, J2494-3 standards

Common Applications:
• Straight connections in vehicle air brake systems
• Pneumatic tubing extensions in trucks and trailers
• Heavy-duty pneumatic setups requiring DOT-compliant union fittings

Specifications - AQ62-DOT-5/32
Model	AQ62-DOT-5/32
Fitting Type	Straight Union Connector, Push-to-Connect
Tubing Size	5/32" OD Tube (both ends)
Material	Brass (CA 377 / CA 360)
Working Pressure	200 PSI
Operating Temperature	-40 °F to 180 °F
Length	1.38"
Hex Size	0.38"
Compliance	DOT FMVSS 571.106, SAE J1131, J2494-1, J2494-3
Applications	Vehicle air brake systems, pneumatic tubing extensions, heavy-duty trucks, trailers, and pneumatic control lines
