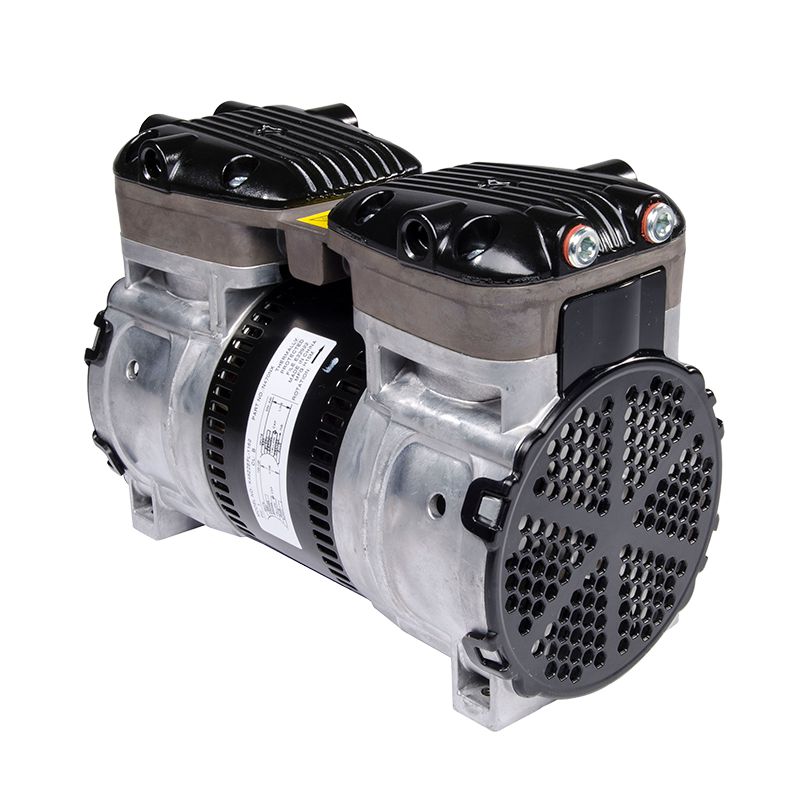

Gast | Rocking Piston Twin Oil-less Pump | 87R645-101-N470X

Mfr. Part #: 87R645-101-N470X

7 in stock | Need More? >>

Ships same day with standard 2-day shipping if ordered M-F before 3PM PT.

Pickup Available at Livermore

ID #: 141388

  • The sleek, new 87R redefines industry standards by delivering higher-pressure performance at significantly lower sound levels. Re-engineered from the ground up, these oil-less rocking piston compressors and vacuum pumps offer outstanding performance, durability, and flexibility making them the ideal choice for a wide array of applications. Not to mention, they're also easy to retrofit, have lower exhaust temperatures and carry a longer life span.

    This family of products can be upgraded with Sound Shield which delivers up to a 25% dB(A) drop and a 40% Sone decrease compared to our standard offerings.

  • The Gast 87R645-101-N470X is a high-performance, oil-less rocking piston compressor and vacuum pump designed for quiet, efficient operation. Ideal for various applications, it offers reliable pressure and vacuum control with low maintenance and continuous operation.

    Key Features:
    - Oil-less design for low maintenance and clean operation
    - Delivers up to 30 psi (2.1 bar) pressure and 27.5 inHg (930.4 mbar) vacuum
    - Flow rates: 4.6 cfm (7.8 m³/h) at 0 psi and 1.3 cfm (2.2 m³/h) at 50 psi
    - Thermal protection for safety
    - Operates quietly with Sound Shield technology (max 65 dB(A))
    - Supports 115/230V at 50/60 Hz
    - Durable aluminum construction
    - 100% duty cycle for continuous use
    - Includes 1-year warranty

    Common Applications:
    - Industrial pneumatic systems
    - Environmental monitoring equipment
    - Food and beverage processing
    - Medical and laboratory equipment
    - Printing and packaging machinery
    - Material handling systems
    - Transportation and vehicle diagnostics

  • Thermal Protection

     YES

    Operating Voltage

     110-120/220-240; 115-120/230-240

    Regulatory Approval

     UL / CE

    Flow‎ @ 50hz

     3.9 cfm( 6.63 m3h )

    Flow @ 60hz

     4.6 cfm( 7.82 m3h )

    Max Pressure

     30 psi( 2.07 bar )

    Max Pressure @ 50hz

     30 psi( 2.07 bar )

    Max Pressure @ 60hz

     30 psi( 2.07 bar )

    Max Vacuum @ 50hz

     27.5 in-hg( 931.26 mbar )

    Max Vacuum @ 60hz‎

     27.5 in-hg( 931.26 mbar )

    Weight

     19.1 lbs( 8.66 kg )

    Duty Cycle

     100%

    Warranty

     1 Year
