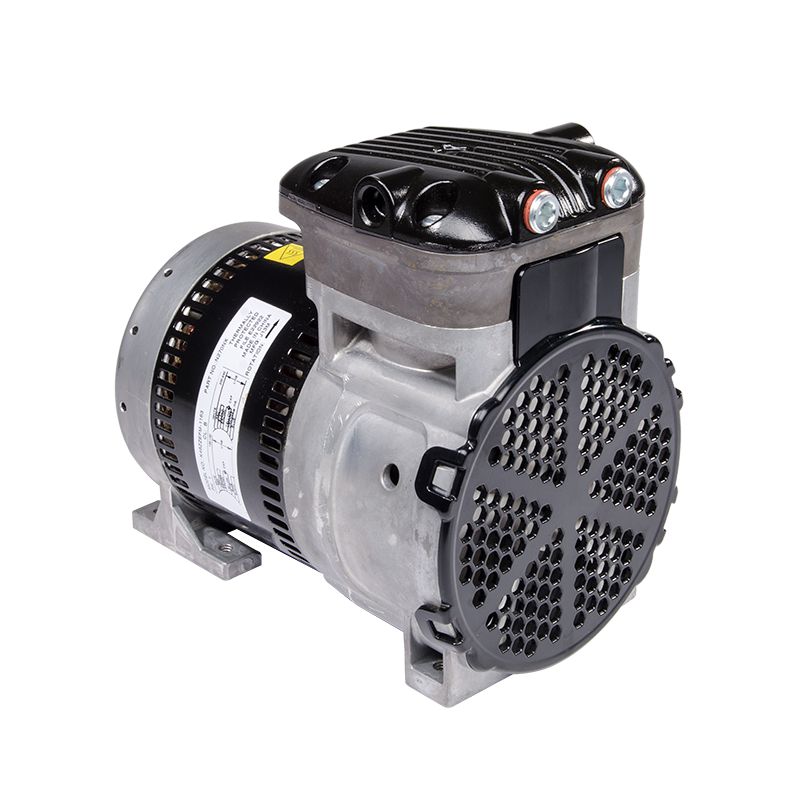

Gast | 86R Rocking Piston Vacuum Pump | 86R142-P001B-N270X

Name: Gast | 86R Rocking Piston Vacuum Pump | 86R142-P001B-N270X
Brand: Gast Manufacturing Corporation
SKU: 86R142-P001B-N270X
Price: 714.42 USD
Availability: InStock

Mfr. Part #: 86R142-P001B-N270X

Ships same day with standard 2-day shipping if ordered M-F before 3PM PT.

Pickup Available at Livermore

ID #: 144480

Description
Features
Specifications
Resources

The sleek, new 86R redefines industry standards by delivering higher-pressure performance at significantly lower sound levels. Re-engineered from the ground up, these oil-less rocking piston compressors and vacuum pumps offer outstanding performance, durability, and flexibility making them the ideal choice for a wide array of applications. Not to mention, they're also easy to retrofit, have lower exhaust temperatures and carry a longer life span. This family of products can be upgraded with Sound Shield which delivers up to a 25% dB(A) drop and a 40% Sone decrease compared to our standard offerings.
The Gast 86R142-P001B-N270X is a high-performance, oil-less rocking piston compressor and vacuum pump designed for quiet, efficient operation. Ideal for various applications, it offers reliable pressure and vacuum control with low maintenance and continuous operation.

Key Features:
- Oil-less design for low maintenance and clean operation
- Delivers up to 100 psi (6.89 bar) pressure and 27.2 inHg (921.1 mbar) vacuum
- Flow rates: 1.7 cfm (2.89 m³/h) at 50 Hz and 2.0 cfm (3.4 m³/h) at 60 Hz
- Thermal protection for safety
- Operates quietly with Sound Shield technology (max 65 dB(A))
- Supports 100–120V or 200–240V at 50/60 Hz
- Durable aluminum construction
- 100% duty cycle for continuous use
- Includes 1-year warranty

Common Applications:
- Medical and dental equipment
- Laboratory and research instrumentation
- Food and beverage processing
- Environmental monitoring systems
- Industrial automation and OEM machinery
- Printing and packaging equipment
- Material handling and pneumatic systems

Thermal Protection	YES
Operating Voltage	100-120/200-240
Flow‎ @ 50hz	1.7 cfm( 2.89 m³h )
Flow @ 60hz	2 cfm( 3.4 m³h )
Max Pressure	100 psi( 6.89 bar )
Max Pressure @ 50hz	100 psi( 6.89 bar )
Max Pressure @ 60hz	100 psi( 6.89 bar )
Max Vacuum @ 50hz	27.2 in-hg( 921.1 mbar )
Max Vacuum @ 60hz‎	27.2 in-hg( 921.1 mbar )
Duty Cycle	100%
Warranty	1 Year
