metal assembly with a cam on the left with a screw inserted through the bottom of it, a spring in the center of the screw and a t-stud end on the right

diagram of a central connector

diagram of a central connector and a t-slotted bar

diagram of a central connector and a t-slotted bar

diagram of a central connector and a t-slotted bar

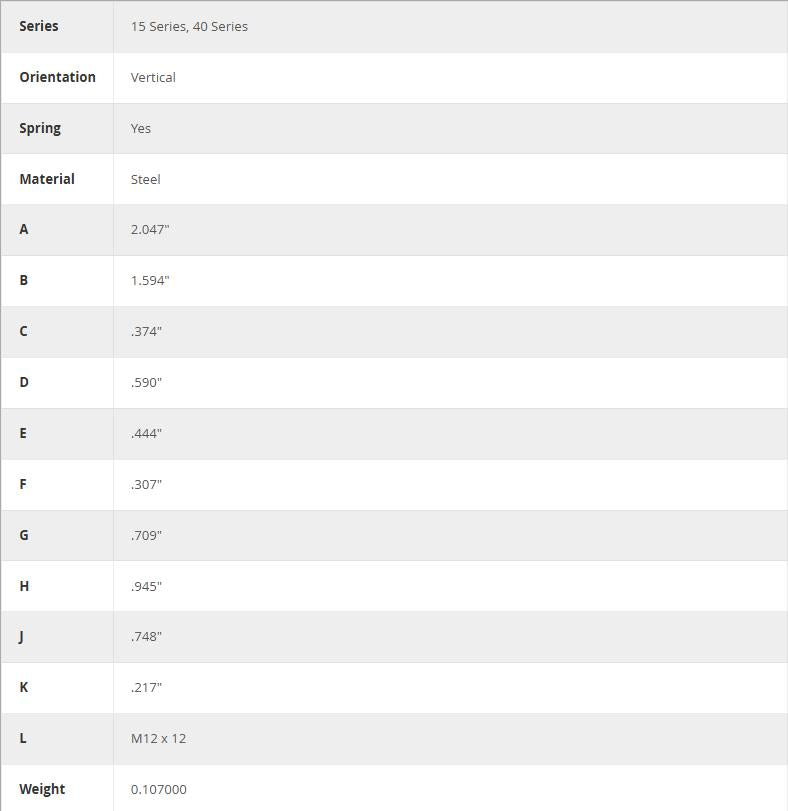

80/20 | 15 & 40 Series Central Connector, Vertical Orientation | 13187

$6.37

13187

Pickup Available at Livermore

ID #: 30363

Description
Resources

The central connector is an assembly comprised of a cam, conical set screw, spring, and T-stud. It is a strong internal fastening method, offering a long-lasting connection. The central connector can be used when profile ends are captivated and it provides infinite positioning along the mating profile’s T-slot, allowing a large degree of adjustability. The central connector is a 90 degree, hidden, aesthetic connection. This connection method requires a central connector profile milling machining service.
Product Resources

STEP file

Download Step File
