top side view of a black, metal anchor fastener assembly with a round piece on the left that has a screw inserted at the end, and a square piece connected to the other end

diagram of a fastener assembly

diagram of a fastener assembly

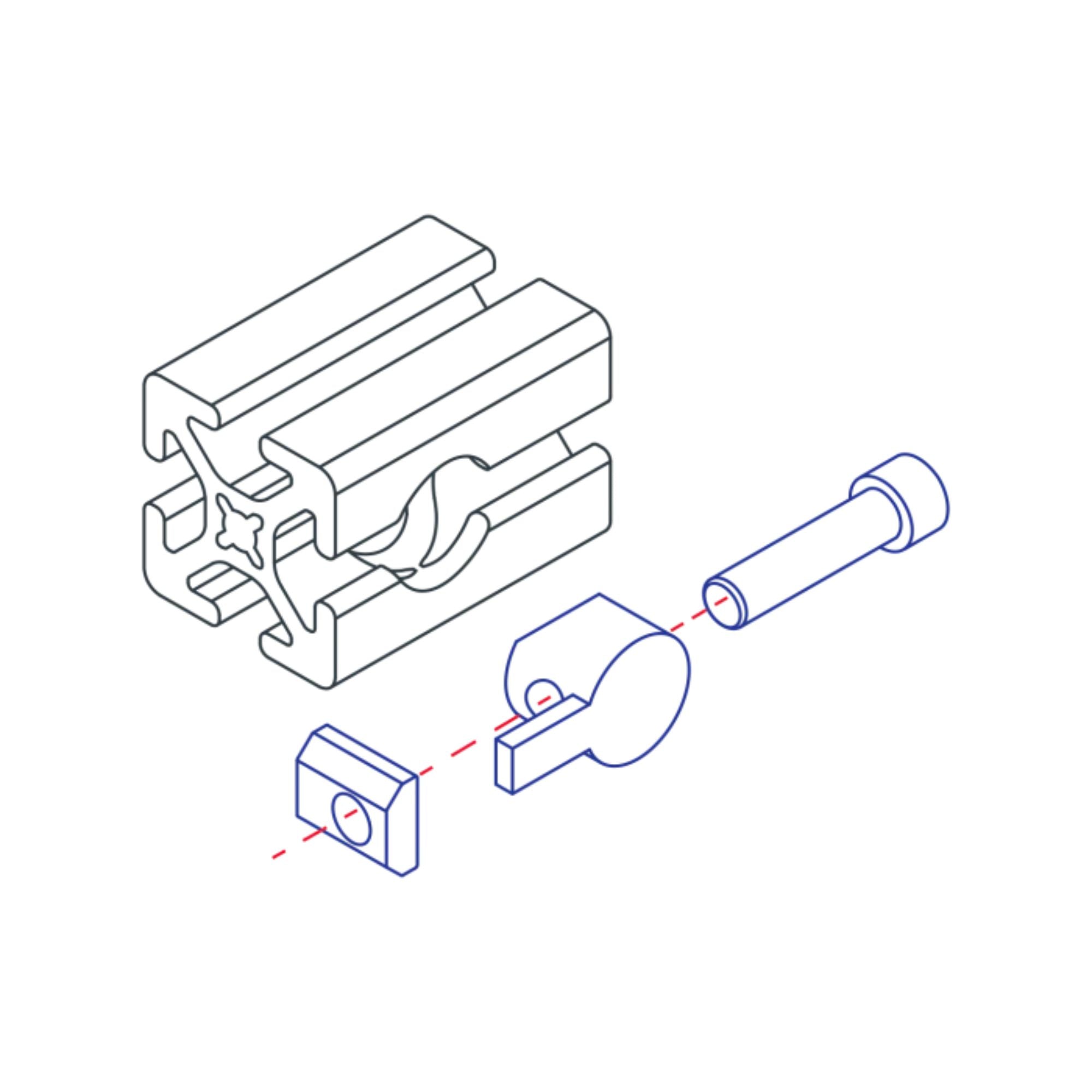

diagram of a fastener assembly and a t-slotted bar

diagram of a fastener assembly and a t-slotted bar

80/20 | 25 Series M5 Standard Anchor Fastener Assembly | 25-3392

$4.67

Mfr. Part #: 25-3392

Pickup Available at Livermore

ID #: 58982

Description
Resources

The standard anchor fastener assembly is comprised of a socket head cap screw, cam, and T-nut. It is one of the strongest internal fastening methods, offering a long-lasting connection. The anchor fastener provides infinite positioning along the mating profile’s T-slot, allowing a large degree of adjustability. The anchor fastener provides 90 degree, flush, vibration resistant connections, especially convenient where space restrictions apply. This connection method requires a counterbore machining service on the mounting profile. Additional Information: Cams are available separately (without the socket head cap screw and T-nut) for instances where you want to create your own custom assembly.
Product Resources

STEP file

Download Step File
