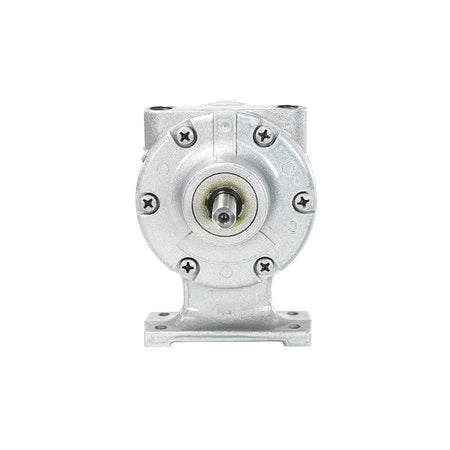

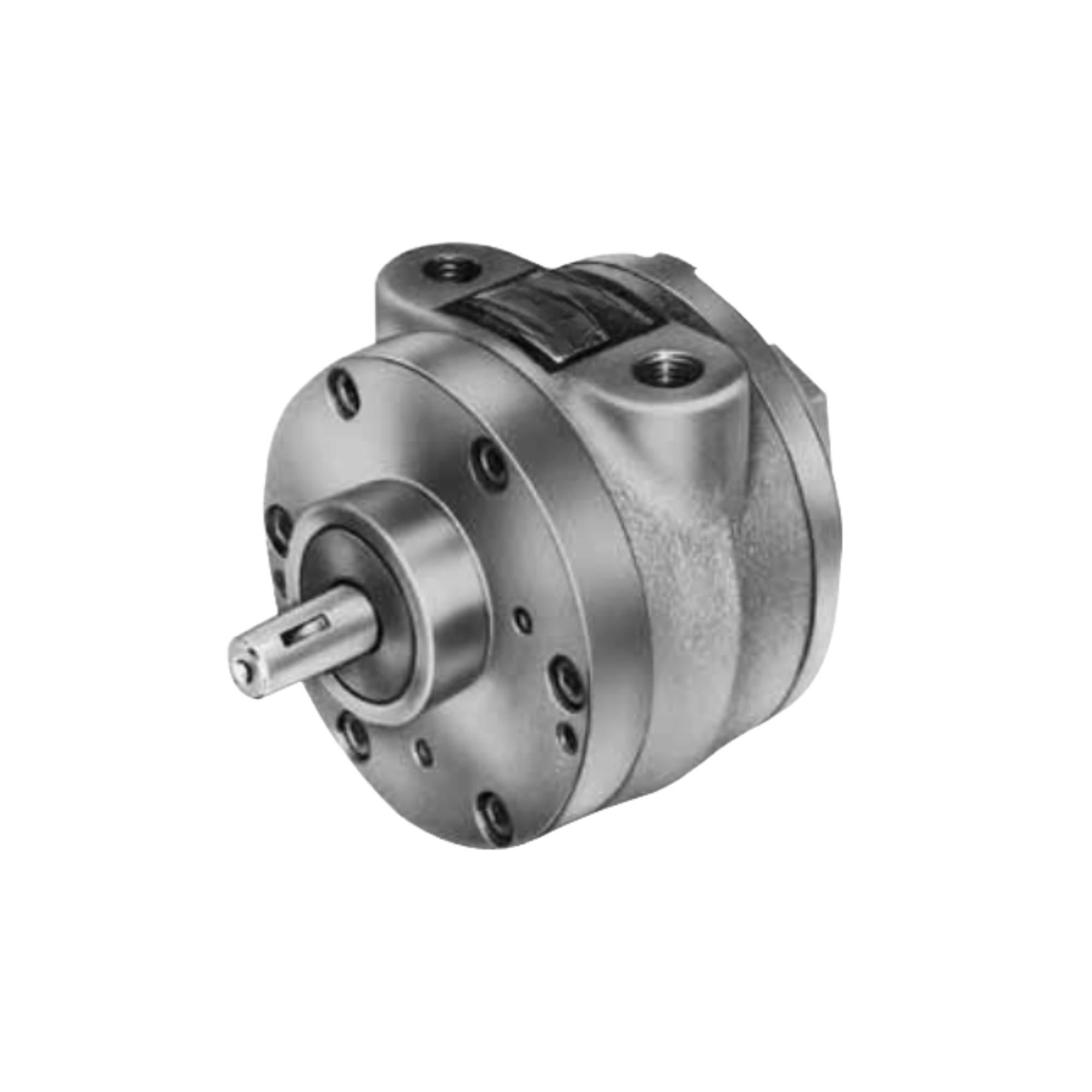

Gast | Stock 30/Skid 4Am-Nrv-22B Air Motor | 4AM-NRV-22B

Mfr. Part #: 4AM-NRV-22B

4 in stock | Need More? >>

Ships same day with standard 2-day shipping if ordered M-F before 3PM PT.

Pickup Available at Livermore

ID #: 4796

  • The compact and portable 4AM series offers air motor operating speed and power output that can be adjusted to meet the precise needs of your application. Their air throttling and pressure control is not only cost effective over electric motor controls, but they also can be stalled or overloaded for long periods without damaging the motor. In addition, these Gast air motors are cool running and have no electrical spark, which makes them ideal for use in hazardous locations.

  • The Gast 4AM-NRV-22B is a versatile, lubricated pneumatic air motor known for its reliability and adaptability across various industrial applications. Designed for environments where electric motors may pose risks, this air motor offers instant start/stop/reverse capabilities, making it ideal for tasks requiring precise control and safety.

    Common Applications:
    - Conveyor systems
    - Packaging machinery
    - Material handling equipment
    - Food processing equipment
    - Pharmaceutical manufacturing
    - Automotive assembly lines
    - Textile machinery
    - Printing presses
    - Laboratory equipment
    - Chemical processing
    - Mining operations
    - Oil and gas industry
    - Agricultural machinery
    - HVAC systems
    - Water treatment plants

    Key Features:
    - Oil-lubricated operation
    - Reversible rotation
    - Adjustable speed up to 3000 RPM
    - Maximum power output of 1.7 hp
    - Maximum torque of 56 in-lb
    - 4-vane design
    - Face mounting configuration
    - Keyed output shaft (0.5 in)
    - 1/4" NPT air inlet
    - CE and ATEX certified for safety
    - Cool-running design
    - No electrical sparking
    - Suitable for hazardous locations
    - Compact and portable
    - Weight: 7 lbs
    - Maximum air consumption: 78 cfm
    - Maximum operating pressure: 7 bar (101.53 psi)
    - Maximum sound level: 87 dB(A)
    - Starting torque at 80 psi: 28 in-lb
    - Torque at maximum speed: 36 in-lb

  • Key Type

     #3 Woodruff

    Max Air Consumption

     78 cfm ( 132.52 m3h )

    Max Power

     1.7 hp ( 1.27 kW )

    Max Pressure

     7 bar ( 101.53 psi )

    Max Sound Level

     87 dB(A)

    Max Speed

     3000 rpm

    Max Torque

     56 in-lb ( 6.33 N m )

    Mount

     FACE

    Output Shaft Type

     Keyed

    Port Size and Type

     1/4" NPT

    Regulatory Approval

     CE, ATEX

    Rotation

     Reversible

    Shaft Size

     0.5 in ( 12.7 mm )

    Stainless Steel

     NO

    Starting Torque @ 80psi

     28 in-lb ( 3.16 N m )

    Torque Max Speed

     36 in-lb ( 4.07 N m )

    Vanes

     4

    Weight

     7 lbs ( 3.18 kg )
