Mfr. Part #: 639.300.01
ID #: 193886

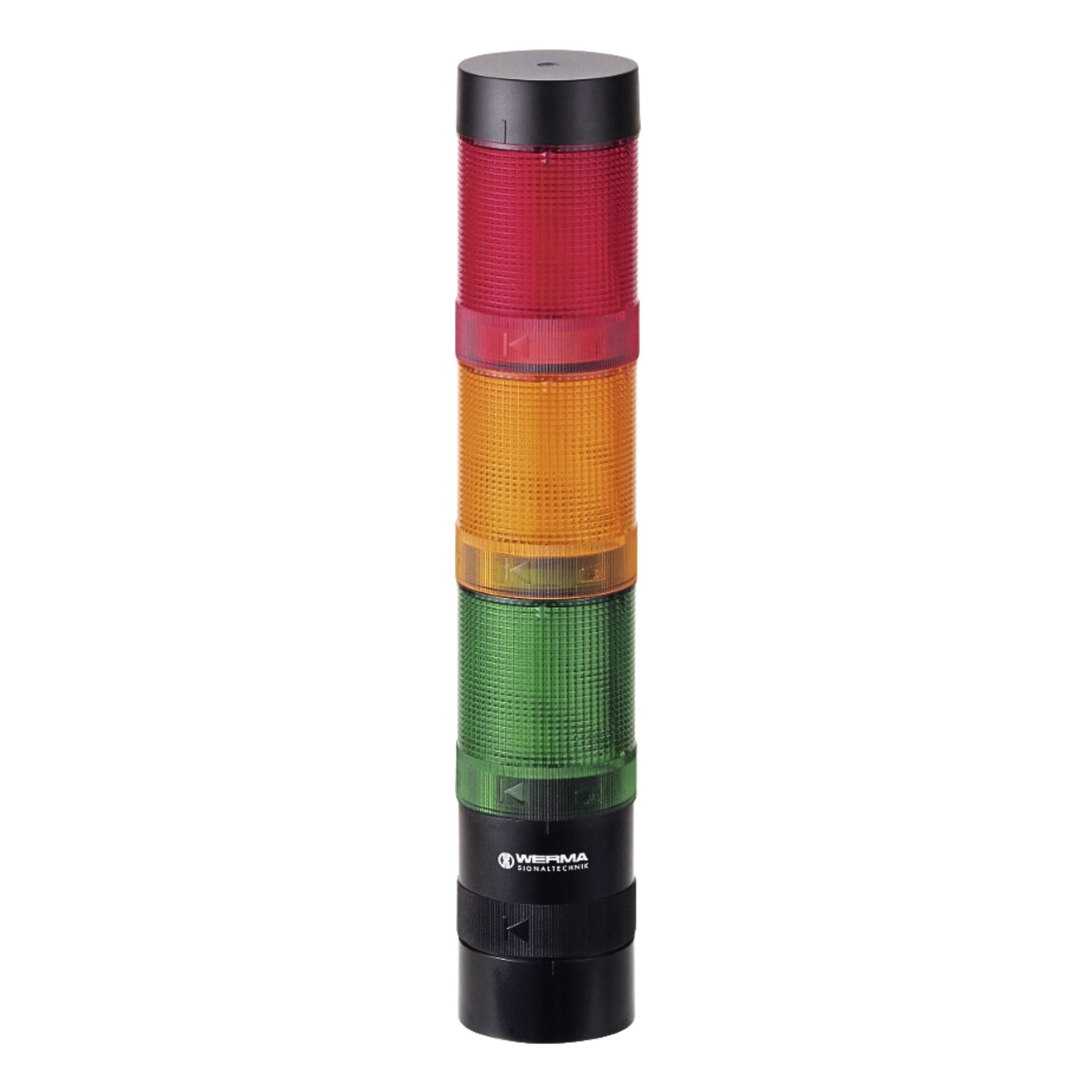

WERMA Signal Tower KS40 Classic BWM 24V AC/DC G/Y/R; IP66 IP69K; 40 mm
| Series: | KombiSIGN 40 |
|---|---|
| Diameter in mm: | 40 mm |
| Voltage: | 24V AC/DC |
| Signal effect: | Blink Permanent |
| Light color: | Green Red Yellow |
| Protection rating: | IP66 IP69K |
| Fixing: | Base mounting Wall mounting |
| Height | 215 mm |
| Diameter | 40 mm |
| Materials | PC |
| Dome color | Green Red Yellow |
| Housing color | Black |
| Protection category | IP66 IP69K |
| Connection | Push-in terminal |
| cross-sectional area minimum | 0,25mm² / 24AWG |
| cross-sectional area maximum | 1,50mm² / 16AWG |
| Cable entry | Through hole |
| Cable entry maximum | d = 9 mm |
| Tension relief | Not present |
| Type of fixing | Base mounting Wall mounting |
| Working temperature minimum | -30°C |
| Working temperature maximum | +60°C |
| Weight with packaging | 210 g |
| Product weight | 129 g |
| Operating voltage | 24V |
| Operating voltage type | AC/DC |
| Operating voltage frequency | 50Hz |
| Operating voltage tolerance | +/- 10% |
| Rated operational voltage | 24 VDC |
| Rated operational current | 40 mA |
| Rated inrush current | 500 mA |
| Protection class | Protection class 3 |
| Light source | LED |
| Light color | Green Red Yellow |
| Optical signal image | Blink Permanent |
| Blink frequency | 1 Hz |
| Service life optical | 50,000 h maximum |
| Conforms with CE | Yes (through the components) |
| WEEE | Yes |
| Conforms with ATEX-directive | No |
| Conforms with CCC | No |
| Conforms with UL | No |
| Conforms with FCC | No |
| Conforms with IC | No |
| EAC certificate available | Yes |
