IP67 SCP-X EXTREME ENVIRONMENT CLASS 2 SERIES

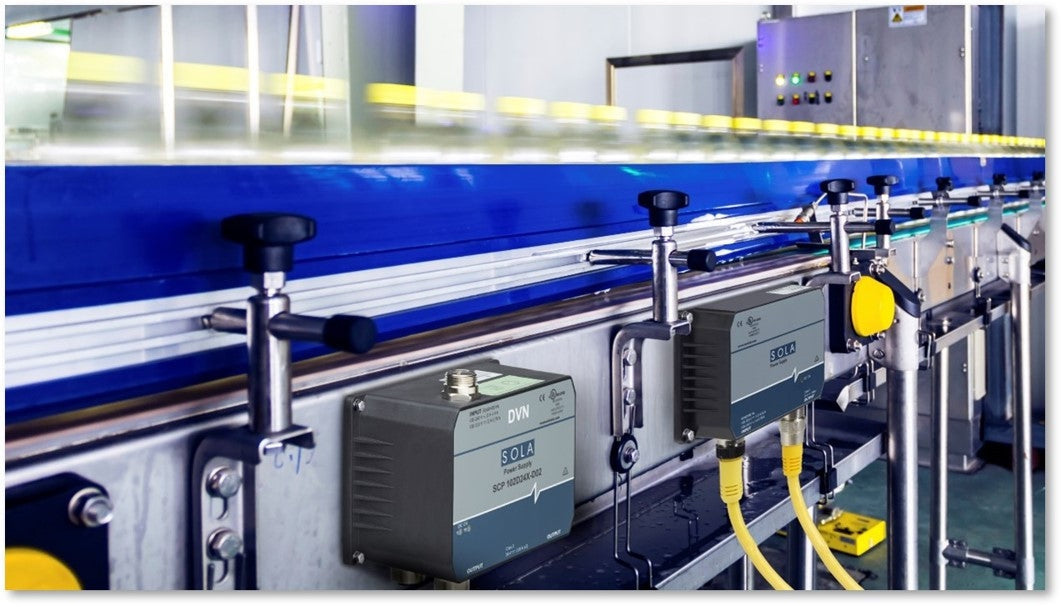

The SolaHD IP67 SCP-X power supplies offer the versatility and cost efficiency needed to provide reliable distributed and remote field power to machine controls. These power supplies mount directly on machines or production lines, eliminating the need for unnecessary enclosures and excess wiring, thereby simplifying installation and reducing costs. Quick-change connectors make it easy to connect distributed I/O devices on industrial machinery. The SCP-X Series is available in multiple configurations, tailored to meet the diverse needs of automotive manufacturing, conveyors, and other applications that require 24 Vdc power for geographically dispersed devices.

Class 2 Low Power Models

• Class 2 Rating: Each output is designed to not exceed 100 Watts for safety and reliability.
• Four Available Models:
  • Single Output: Provides up to 100 Watts using a single output connector.
  • Dual Output: Features two electrically isolated 100 Watt power supplies within a single IP67 case, with two connectors for each output (totaling 4 connectors). This simplifies connections to multiple devices.
• Two Output Wiring Configurations:
  • Grounded Output: For control power applications where a grounded output is required.
  • Isolated Output: For applications such as DeviceNet™ where isolation from ground is necessary.
• Connectors:
  • Input: 3-pin IP67 7/8” plug with external threading.
  • Output: 4-pin IP67 7/8” receptacle with internal threading.

General Features

• IP66/67 Rated Enclosure: Provides protection against dust and water, making it suitable for harsh environments.
• Reliable Operation: Functions in temperatures ranging from -40°C to 60°C without the need for derating.
• Diagnostic LED: Indicates proper DC output operation.
• Flexible Mounting: Can be mounted in any orientation without limitation.
• Universal Input Voltages: Accepts both AC and DC input.
• Five-Year Limited Warranty: Ensures long-term reliability and peace of mind.

Certifications and Compliances

• UL/CSA Listings:
  • UL/CSA 62368-1: Audio, video, information, and communication technology equipment.
  • UL/CSA 60950-1: Information technology equipment.
  • IEC/EN 62368-1: Low Voltage Directive, Electrical Equipment Safety Regulations 2016.
  • IEC/EN 60950-1: Safety for electrical equipment.
  • UL 508 & CSA C22.2 No. 107.1: Industrial control equipment.
• CB Certificate: For compliance with international standards.

Related Products

• SDN-D Series
• SDN-C Series
• SVL Series

Recommended Cordsets (to be provided by user)

• Input Cordset: Molex 3-pin mini-change (Part #: 113030K13MxxxE or equivalent).
• Output Cordset: Molex 4-pin mini-change (Part #: 114030K12Mxxx or equivalent).

Note: Cordsets are to be provided by the user. The "xxx" in the part number represents the cordset length in tenths of a meter.

The SolaHD IP67 SCP-X power supply is designed to address the increasing demand for distributed field power in industrial environments. As machinery becomes more reliant on remote controls and communication systems such as DeviceNet, Profibus, and Ethernet, providing power to various machine devices is becoming more complex and costly. Traditional 24 Vdc power supplies often require large enclosures for environmental protection, which adds to the cost and complexity of installation.

Key benefits of the SolaHD IP67 SCP-X power supply include:

1. Compact and Self-Sealing Design: The SCP-X is housed in a sealed, rugged unit that is resistant to dust, water, and other contaminants, thanks to its IP67 rating. This eliminates the need for bulky enclosures and simplifies installation. Its compact size allows direct mounting on machines, which reduces wiring and assembly complexity.

2. Environmentally Resistant: The SCP-X is designed to withstand harsh environments, with a housing that is resistant to corrosion, dust, and water, and it can operate in temperatures ranging from -40 to +60°C. This makes it suitable for a wide variety of industrial applications, where environmental exposure is a concern.

3. Cost Savings: When compared to traditional power supplies that require separate enclosures, connectors, fuses, and mounting hardware, the IP67 SCP-X power supply offers a significant reduction in installation costs. It is fully assembled and ready to be connected, eliminating the need for extra components and labor, saving over $300 compared to traditional setups.

4. Thermal Management: Unlike traditional power supplies, which rely on ventilation for heat dissipation, the SCP-X uses efficient passive convection cooling. This eliminates the need for fans and allows for a more compact and reliable design that can operate in tight spaces without compromising performance.

5. Flexibility and Interconnectivity: The SCP-X power supply is equipped with mini-DIN connections, which can be adapted to various industry-standard electrical connection types. This allows for flexibility in system design, enabling compatibility with a wide range of devices and easy integration into existing systems.

6. Size and Mounting: The SCP-X is much smaller than traditional enclosed power supplies. For example, it measures only 5.4” x 7” x 1.8” compared to the traditional unit’s 14” x 16” x 6” size, making it easier to fit into machines with limited space.

Traditional Field Power Supply vs. IP67 SCP-X Power Supply Cost Breakdown:

• Traditional setup (including power supply, enclosure, connectors, and labor) costs around $732.19.
• IP67 SCP-X unit costs around $336.48.

This comparison demonstrates significant cost savings with the SolaHD SCP-X power supply, as it eliminates the need for external enclosures and additional parts. The SCP-X also offers greater flexibility, durability, and ease of installation in demanding industrial environments.

In summary, the IP67 SCP-X power supply by SolaHD offers a streamlined, more efficient solution for powering industrial machine devices. It reduces the complexity and cost of installation while ensuring reliable operation in challenging conditions.
