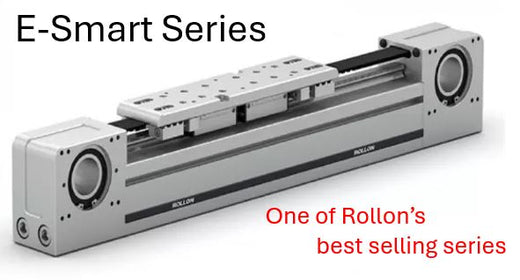

E-SMART
ACTUATORS AND SYSTEMS
myRollon
MyRollon is your digital platform for linear guides, telescopic slides, actuators, and actuator systems. It helps determine the best linear motion solution according to application specifications.
Index
- Ordering Key: 4
- Features and Advantages: 5
- Components and Dimensions: 6
- Accessories: 14
- Use and Maintenance: 19
- Service Life: 20
- Warning and Legal Notes: 21
Ordering Key
Example: L 10 2R 02000 2R
- 03 = 30, 05 = 50, 08 = 80, 10 = 100, 14 = 144
- Number of blocks: 1R = 1 block [SP1], 2R = 2 blocks [SP2], 3R = 3 blocks [SP3], 4R = 4 blocks [SP4]
- Total length of the unit [mm]
- Drive head, size details, and configurations available from page 6 to 13
Performance Characteristics
- Available Sizes: 30, 50, 80, 100, 144
- Max. Operating Speed: 4 m/s
- Max. Acceleration: 50 m/s²
- Repeatability: up to ±0.05 mm
- Profile Material: Aluminium
- Drive: Toothed belt AT pitch
- Guide: Recirculating ball bearings
Standard Accessories
- Shaft
- Synchronization kit
- Fixing system
- Sensors
- Gearbox assembly kit

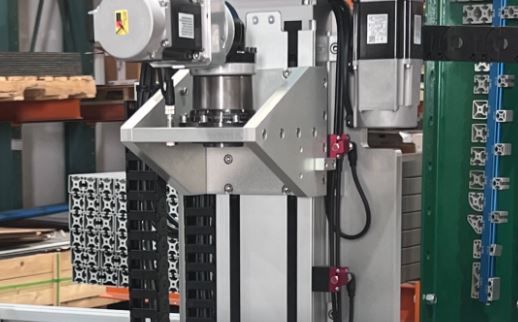

Features and Advantages
The E-SMART linear actuators combine performance, strength, and versatility with the following key characteristics:
- Self-Supporting Structure: Extruded and anodized aluminium profile.
- Available Sizes: From 30 to 144 mm width.
- Carriage: Machined anodized aluminium, guided and supported by a recirculating ball guide system.
- Thrust Force: Steel reinforced, polyurethane belt with AT pitch for high load transmission, low noise, and smooth motion.
- Symmetrical Heads: Allow for flexible gearbox mounting on either side, making it ideal for multi-axis systems.
- Preferred Applications: Suitable for clean environments with a good balance of performance, versatility, and cost efficiency, ideal for parallel axes in gantry systems.
Main Advantages
- High Dynamics: Compact design and available strokes for coordinated, precise movement. Excellent acceleration and speed.
- Compactness: High load capacity due to a combination of recirculating ball guides and engineered aluminium profiles.
- Versatility: Gearbox can be mounted on either side.
- Low Maintenance: Long maintenance intervals and extended lifespan due to the efficient system design.
