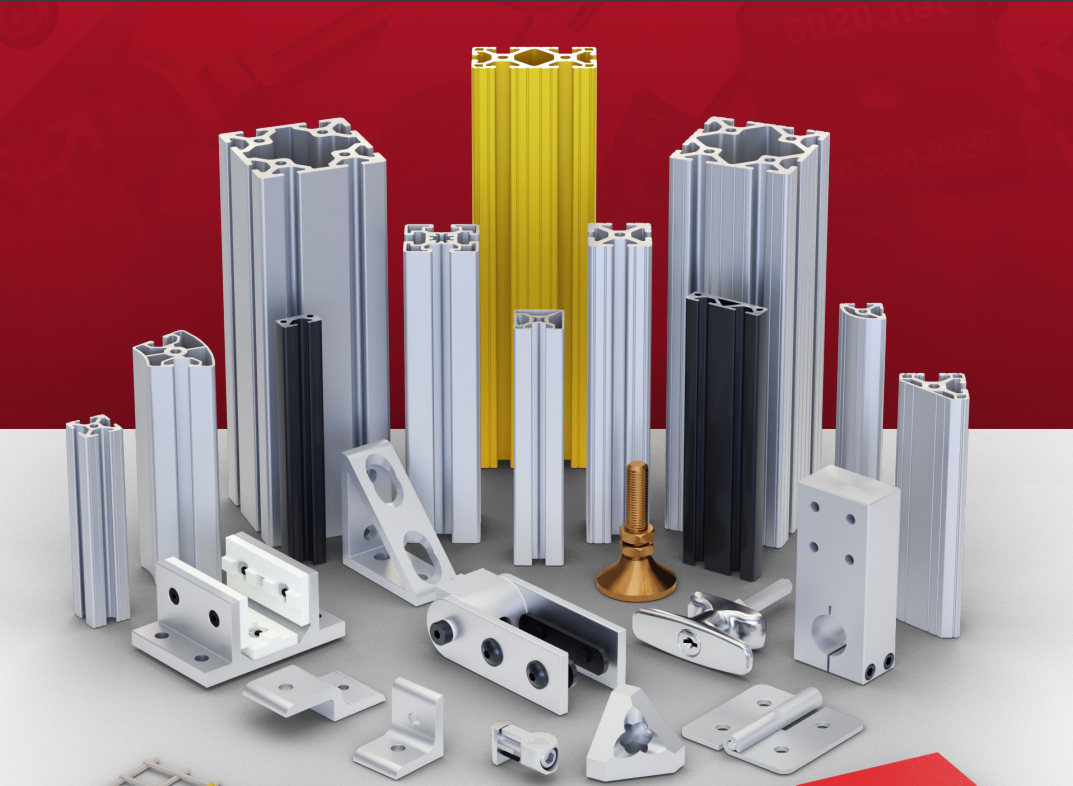

The 80/20 t-slotted profile offering includes over 100 different types to choose from over 7 series. Each and
every profile is available in clear and black anodize along with safety yellow powder coat in selection profiles. Profile shapes include radius, angled, closed faced and larger profile sizes for heavy duty applications. A vast majority of profiles are in stock for fast delivery. Profiles are available in 120”, 242”, 3M, 6.050M and cut-to-length.

T-Slotted Profiles

Profile Options:

• Over 100 types across 7 series

• Available finishes: Clear anodize, black anodize, safety yellow (select)

• Common lengths: 120", 242", 3M, 6.050M, cut-to-length

Profile Shapes:

• Radius

• Angled

• Closed-faced

• Heavy-duty large profiles

T-Slot Profile Series:

Series	T-Slot Size	Common Sizes
10	.236" / 6mm	1" x 1" (1010, 1010-S)
15	.315" / 8mm	1.5" x 1.5" (1515, 1515-S, Lite, UL)
20	5mm / .197"	20-2020, 20-2040
25	6mm / .236"	25-2525, 25-2550
30	8mm / .315"	30-3030, 30-3060
40	8mm / .315"	40-4040, 40-4080, UL, Lite
45	10mm / .394"	45-4545, 45-4590, 45-9090

Profiles also include variants such as Smooth (S), Lite (L), Ultra (UL), and combinations thereof.

Fasteners / Hardware / Panels

Internal Fasteners:

• Hidden Corner Connector

• Inside Corner Connector

• Anchor Fasteners

• End Fasteners

• Central Connectors

External Fasteners:

• Pivot Hinges*

• Pivot Joint

• Brackets & Gussets*

• Flat Plates*

• Plates & Tabletops

T-Nuts and Screws:

• Drop-In T-slot Studs

• Roll-In and Slide-In T-Nuts

• Screws (various types)

Panel Options:

• Panel Mount Blocks

• Panel/Wire Mesh Retainers

• Wire Mesh

• Aluminum/Plastic Panels

Black anodize options available; many fasteners require no machining.

Bearings / Casters / Accessories

Movement & Structure Support:

• Casters

• Leveling Feet

• Linear Bearings*

• Pivots & Stanchions*

• Unibearings*

Assembly Enhancements:

• Base Plates*, Floor Mounts*, Lift Systems

• Roller Wheels*, Floor Locks

• 45° Supports*, Dynamic Pivots*

• Door Glides, Tracks, Hinges*, Latches

• End Caps & T-Slot Covers

No machining required on many parts; black anodize options available.

Fastener Installation Instructions

Anchor Fastener Installation:

1. Loosen pre-assembled nut and bolt

2. Load anchor into counterbore hole

3. Slide mating profile in place

4. Align and tighten with T-wrench

End Fastener Installation:

1. Insert bolt through wing clip

2. Loosely screw into tapped hole

3. Align profiles and access hole

4. Tighten through access hole

Bracket & Gusset Installation:

1. Pre-load bracket with screws and T-nuts

2. Slide into T-slot of profile

3. Add and align mating profile

4. Fully tighten all fasteners

Custom Services

Packaging Services:

• Kit Packaging, Part Packing, Bubble Wrap, Bar-Coding, Tagging, Unmarked Boxes

Machining Services:

• Recessing, Perforating, Hardware Notching

• Custom Parts (no minimums)

Assembly Services:

• Cut-to-size

• Custom Designs

• Engraving / Lettering

• Subassembly / Full assembly

Panel Shop:

• Over 100 plastic, aluminum, wire mesh types

• Fully machined in-house

Applications

• Mobile Workstations

• Machine Guards

• Lab Enclosures

• Hydraulic Lifts

• Robotic Arms

• Machine Frames

• Conveying Systems

• Modular Cells

• Clean Rooms

• Data Centers

• Racing Simulators

• Vehicle Outfitting

• Office Furniture

• Displays & Pick-and-Place Systems

• Miter Saw Stands
